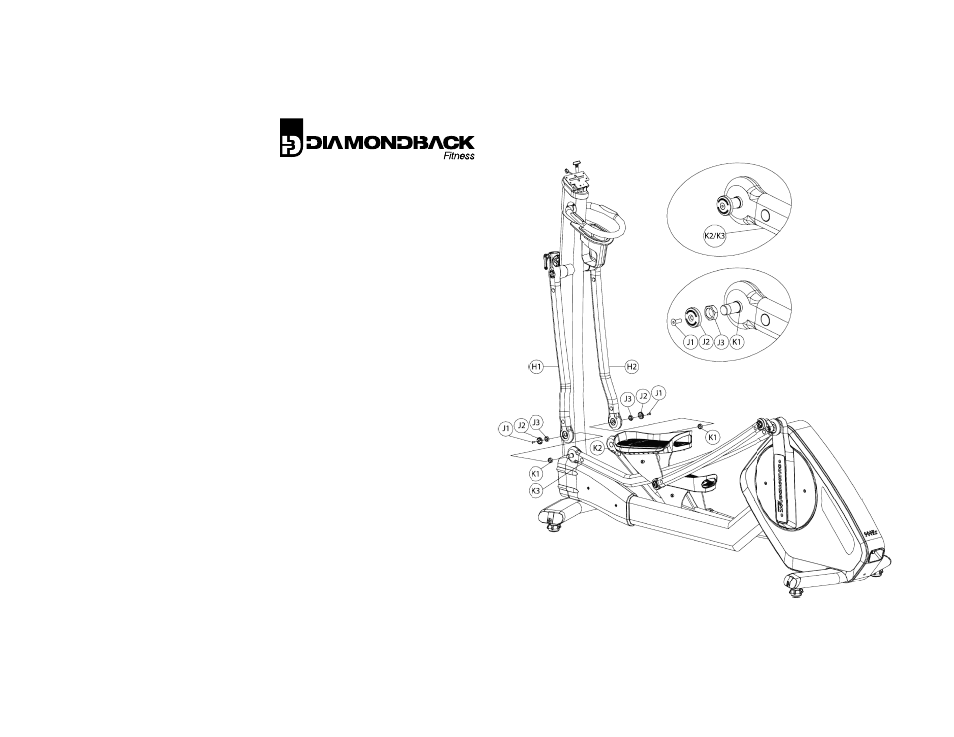

11. The forward pivots of the step arms
(K2 & K3) will arrive with the fixing
hardware pre‐installed as depicted.
Remove the hardware assembly
(parts J1, J2 and J3) from the step
arms and set aside.
12. Spacer K1 should remain in place on
the pivot axles.
13. Bring the pivots of the left step arm
(K3) and handlebar (H1) together.
Slide the handlebar pivot over the
step arm pivot axle and press into
place.
14. Thread fixing nut J3 onto the pivot
axle and tighten with the provided
wrench.
15. Insert hex screw J1 through pivot
cap J2 and install on step arm K3.
16. Repeat steps 12 through 16 for the
right side assembly.
