Workout Profile or Brickyard

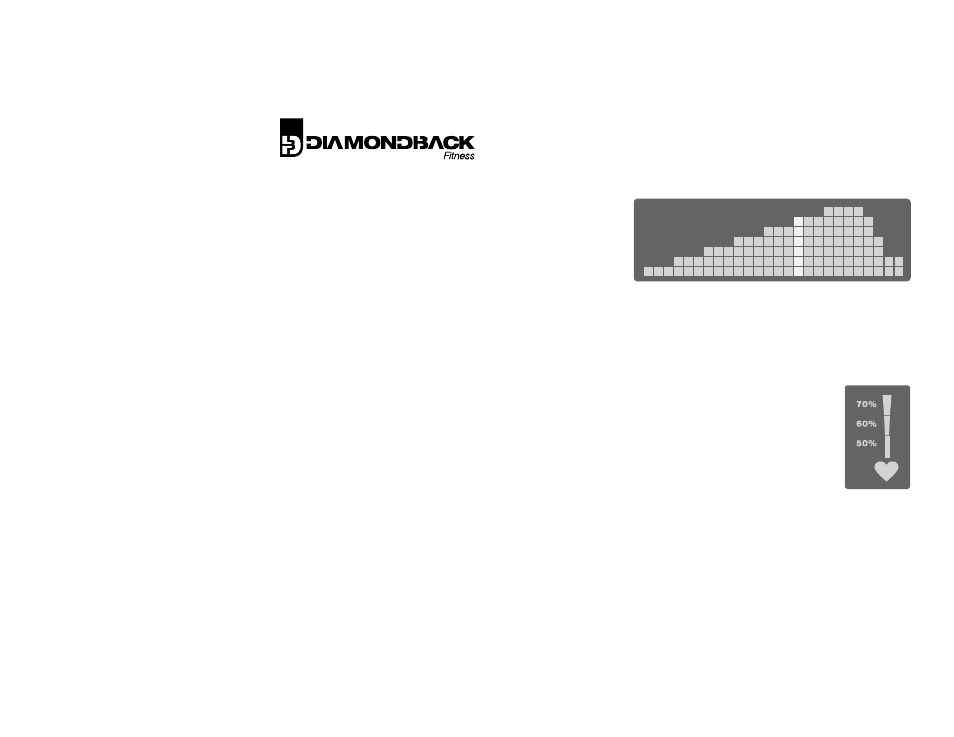

During the Setup mode and while a program is operating, this field
will graphically display the resistance level of the current workout
program. A higher “brick” stack represents a higher load or resistance
level, with each brick representing two (2) levels of resistance. A
flashing column of bricks will indicate the user’s progress in the
program at any given time. In the diagram to the left, the user has
progressed to the fifteenth column (flashing) and the resistance level
is set currently set to twelve (12).
Each vertical column represents a time interval determined by the total length of the program. Each column will equal 1/10
th of
the total program length. For example, if the program length is fifty‐two (52) minutes, each column will equal three (2) minutes
(52 minutes / 26 segments = 2 minutes per segment).
During the Target Heart Rate programs, the brickyard will display the user’s calculated maximum heart rate profile.
Percent of Heart Rate Bar & “Heart” Icon Pulse Indicator
The Heart Rate Bar graphically displays the user’s current heart rate as a percentage of the calculated maximum.
The graph will only light up if a heart rate signal is detected by the console. The most accurate feedback will be
provided if the user has input their personal age information.
The “heart” icon will light if a pulse rate is detected.
