10
ASSEMBLY INSTRUCTIONS
1. Install the four (4) stabilizer feet assemblies (A1 & A2)
into the underside of the front and rear stabilizers.
Thread all the way in.
2. Remove the eight (8) hex bolts (F1), eight (8) lock
washers (F2), four (4) flat washers (F3) and four (4)
curved washers (F4) from rear frame assembly B and set
aside.
3. Remove the two (2) hex bolts G1 from the left and right
sides of the console mast assembly (C) and set aside.
4. Stand the rear frame assembly (B) right‐side
up and lay the console mast assembly (C)
nearby. Join connectors D and E firmly to
ensure a good connection.
5. Carefully stand console mast assembly C
upright and join with the rear frame
assembly (B). Ensure rear assembly (B) is fully
inserted into the console mast receiver (C) by
confirming the bolt holes are aligned.

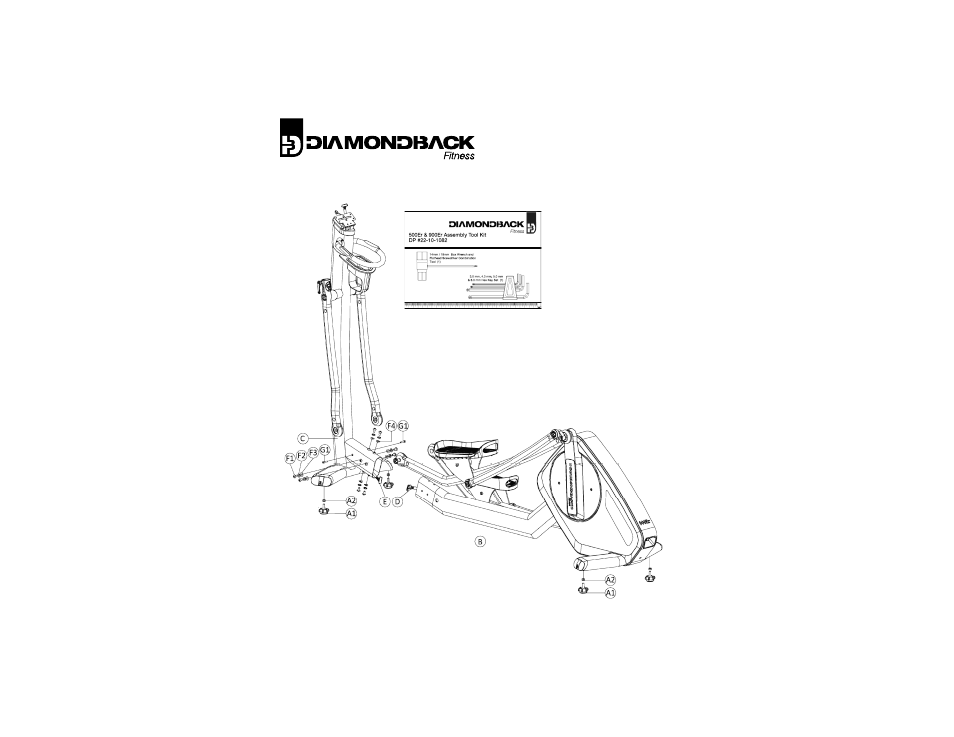

6. Loosely install four (4) sets of parts F1, F2 and
F3 into the sides of console mast assembly B
and four (4) sets of parts F1, F2 & F4 into the
top and underside of the mast assembly as
per the figure to the left. Once all bolts are
partially installed, tighten each firmly with
the enclosed hex wrench.
