3.8 Signal Termination Between Two (or More) Signs
Reference Drawings:
Schematic, Internal, W/Quick Connect ........................ Drawing B-177662
Controller, Galaxy, 8-conn., J-1087 ............................. Drawing B-177838
RS422 Interconnection
Electrical Installation
3-17
• The quick connect cable is the most common
method of terminating signal between two
displays. The four-foot cable goes from the
RS422 OUT (J34) on the primary display to
the RS422 IN (J32) on the secondary display.
• If the displays are not back-to-back, or are
too far apart for the quick connect
interconnect cable to reach, a 4-conductor
shielded cable can be used. One end will
connect at the “RS422 OUT” 6-position
terminal block (TB3) on the controller of the
primary display, and the other end of the
cable will terminate on the “RS422 IN” 6-
position terminal block (TB2) on the controller of the secondary display.

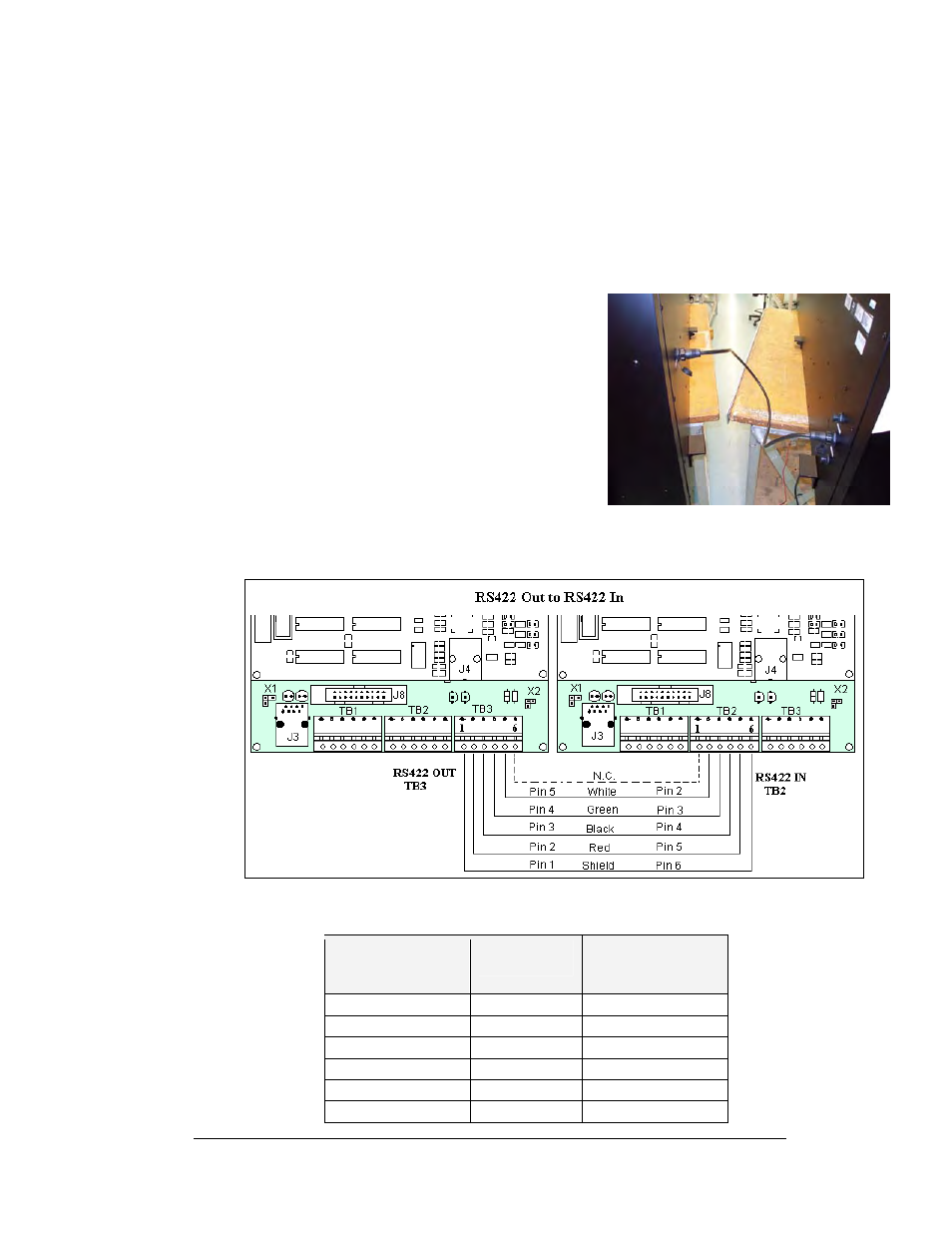

Figure 33: Quick Connect Cable
Figure 34: RS422 Signal Termination Panels
Primary
RS422 OUT
(TB3)
Field
Cabling
Secondary
RS422 IN
(TB2)
Pin 1 (GND) Shield Pin 6 (GND)
Pin 2 (D2OUT-N) Red Pin 5 (D1IN-N)
Pin 3 (D2OUT-P) Black Pin 4 (D1IN-P)
Pin 4 (D2IN-N) Green Pin 3 (D1OUT-N)
Pin 5 (D2IN-P) White Pin 2 (D1OUT-P)
Pin 6 (Shield) Pin 1 (Shield)
