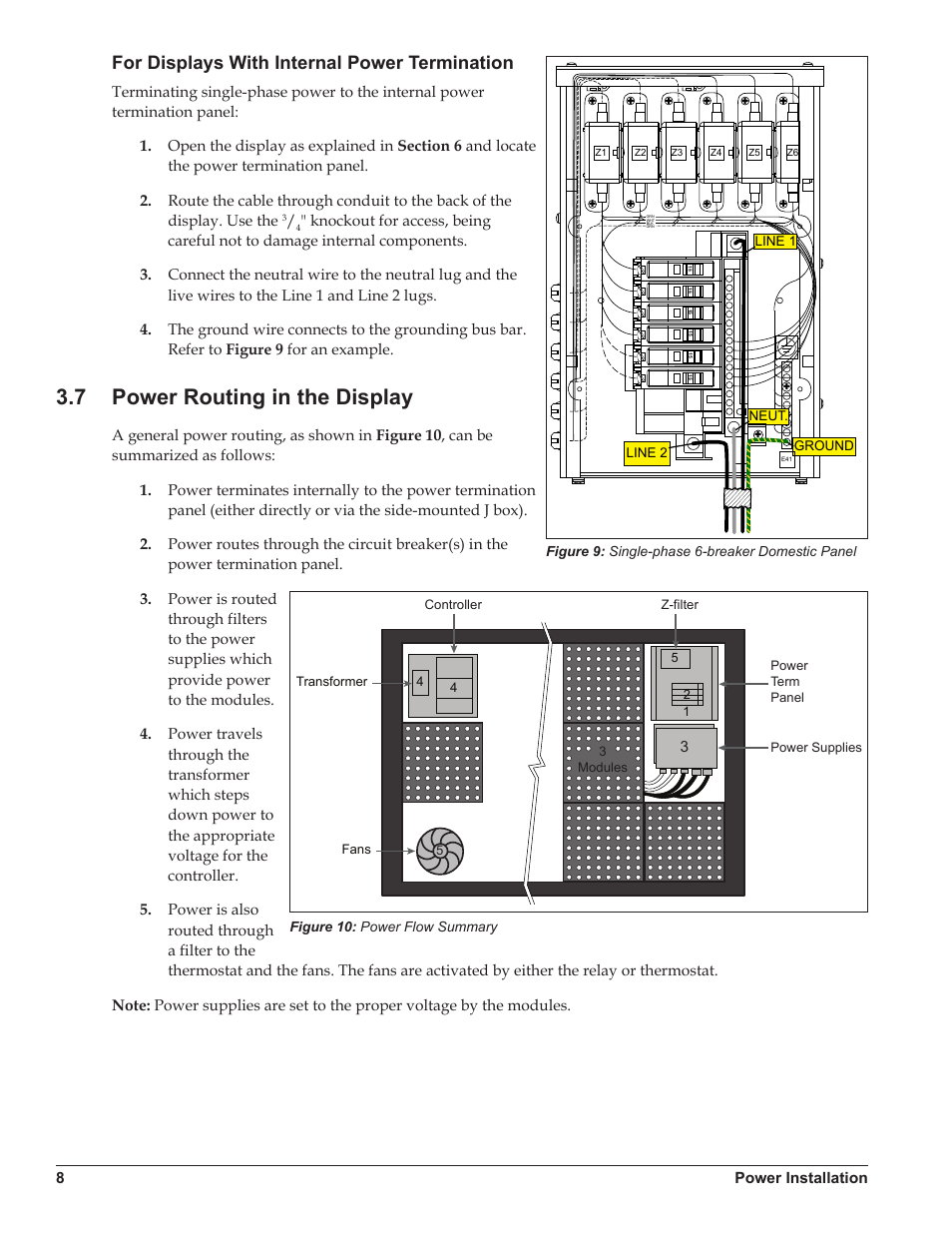

For displays with internal power termination, 7 power routing in the display, Power routing in the display – Daktronics Galaxy AF-3500 Series Double Face User Manual
Page 12: 8power installation
