3 power requirements, Main disconnect, 4 power grounding – Daktronics Galaxy AF-3500 Series Double Face User Manual

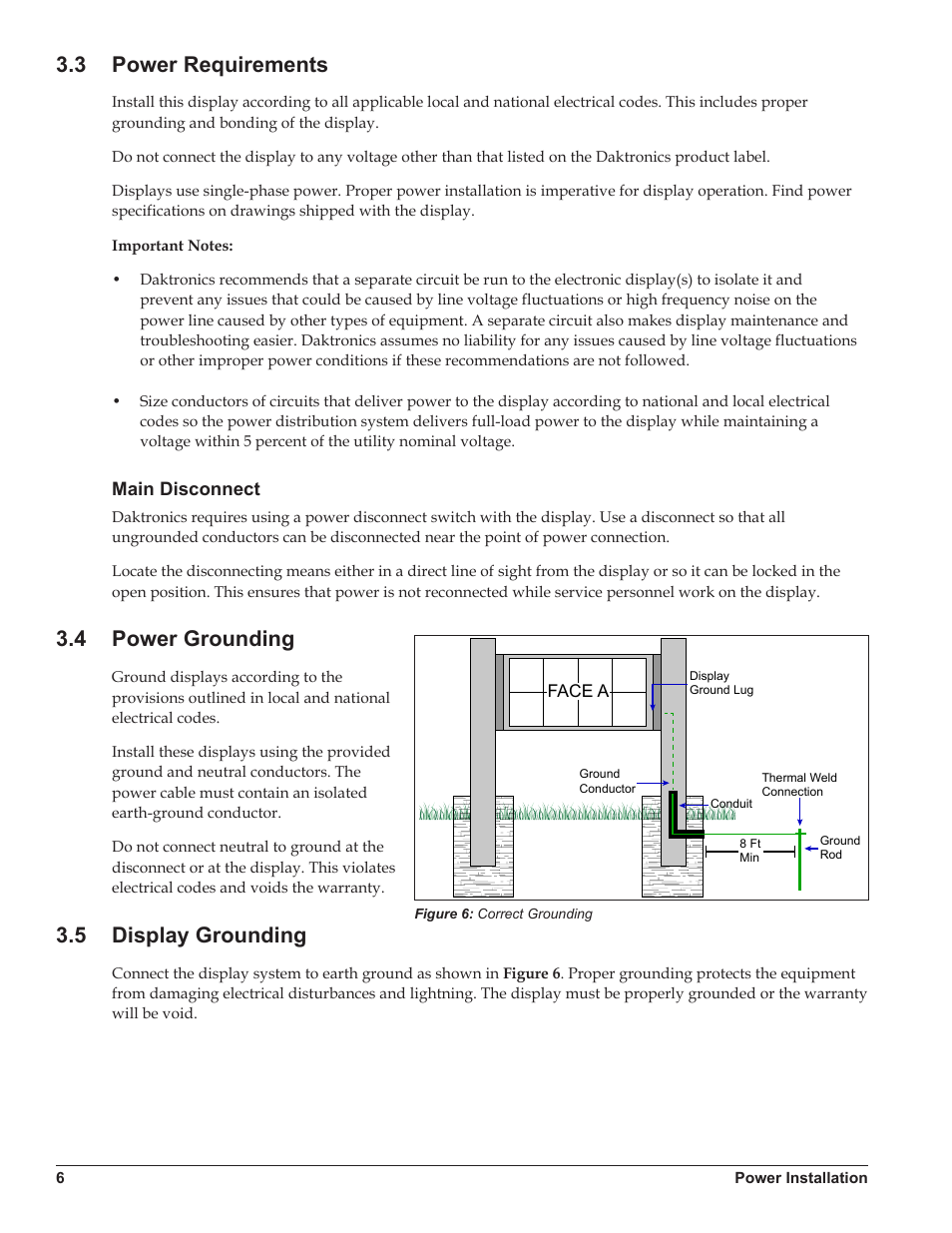

Page 10: 5 display grounding, Power requirements, Power grounding, Display grounding
