Section 4: Signal Installation Overview
4.1 Introduction to Signal Communication
Daktronics Galaxy
®
displays are equipped to receive many types of communication
signals. The following sections include a brief description of each available
communication type. Also included is a list of troubleshooting tips to check that the
display is connected and configured correctly.
For specific details on installing the signal, consult the quick guide and the manual
for that communication type. These were included in the shipment of the
communications equipment. Each type is listed below with its manual number.
Communication
Type
Communication
Manual
Communication
Quick Guide
RS-422 ED-14742 ED-14555
Serial Fiber ED-14743 ED-14557
Radio ED-13932 ED-14103
Ethernet Radio ED-16483 DD1417586
Wire Ethernet ED-14745 ED-14558
Fiber Ethernet ED-14746 ED-14559
Modem ED-14744 ED-14556
RS-232 ED-14739 ED-14554
Note: These are the standard communication types. However, each site is unique and
may include additional equipment. If problems arise, contact the display’s seller,
service company, or Daktronics Customer Call Center.

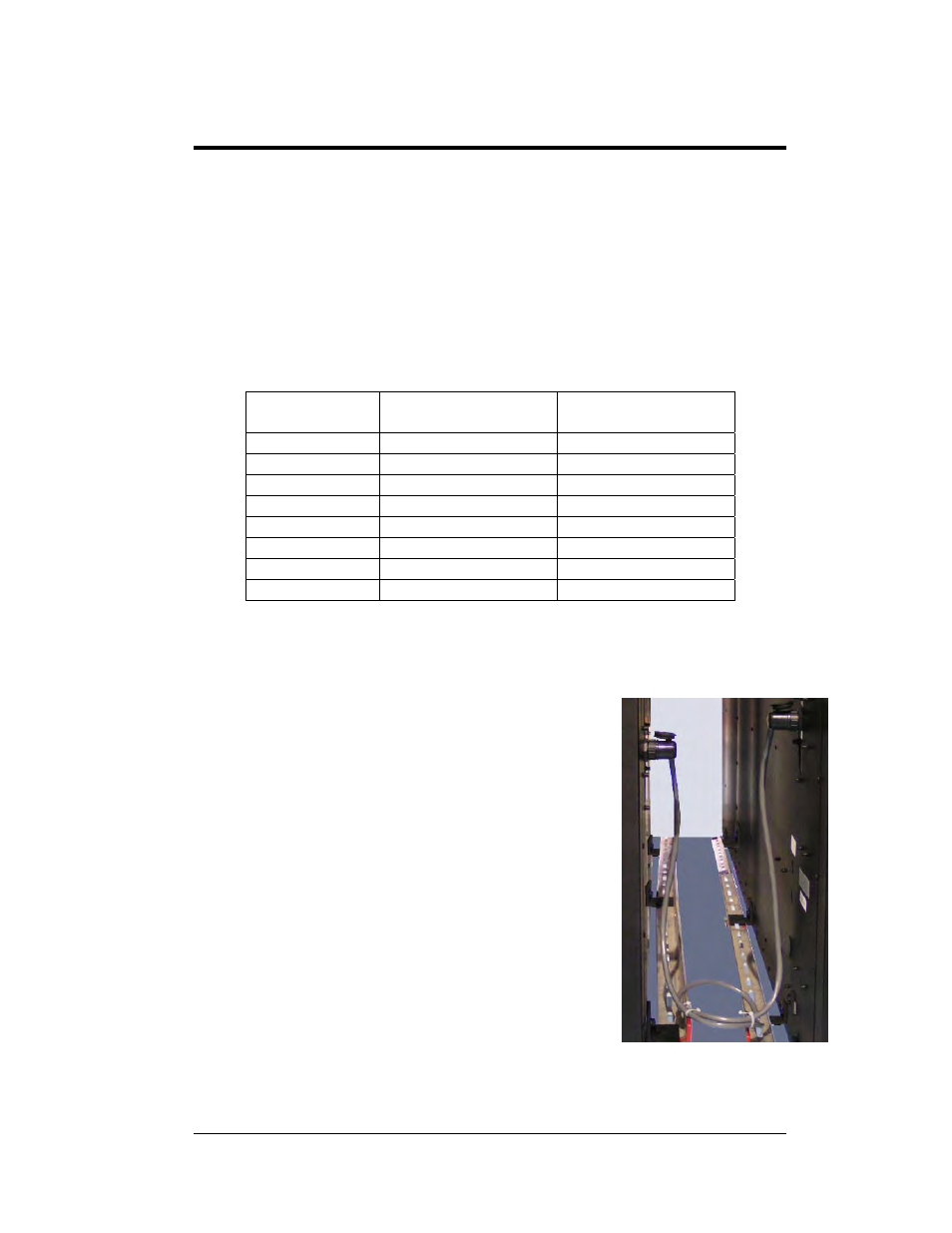

Figure 12: Quick-connect Cable
If the display is a two-sided primary/mirror display, a
six-foot quick-connect cable will be provided to connect
the signal between the two display faces. This cable is
limited to 6 feet only and cannot be extended. Refer to
Figure 12 for proper connection.
If the display faces are mounted at more than the length
of the quick-connect cable, two primary displays will be
utilized, requiring hard-wiring between the two display
faces.
4.2
Signal Installation
4-1
