PLANNING
GUIDE
www.Dacor.com
Phone: (800) 793-0093
Specifications are subject to change without notice.
See installation instructions for additional details.
13.3
36”, 52” Wide Outdoor Grills
16” Wide Side Burner
OB36, OB52, OBS36, OBS52, OBSB162

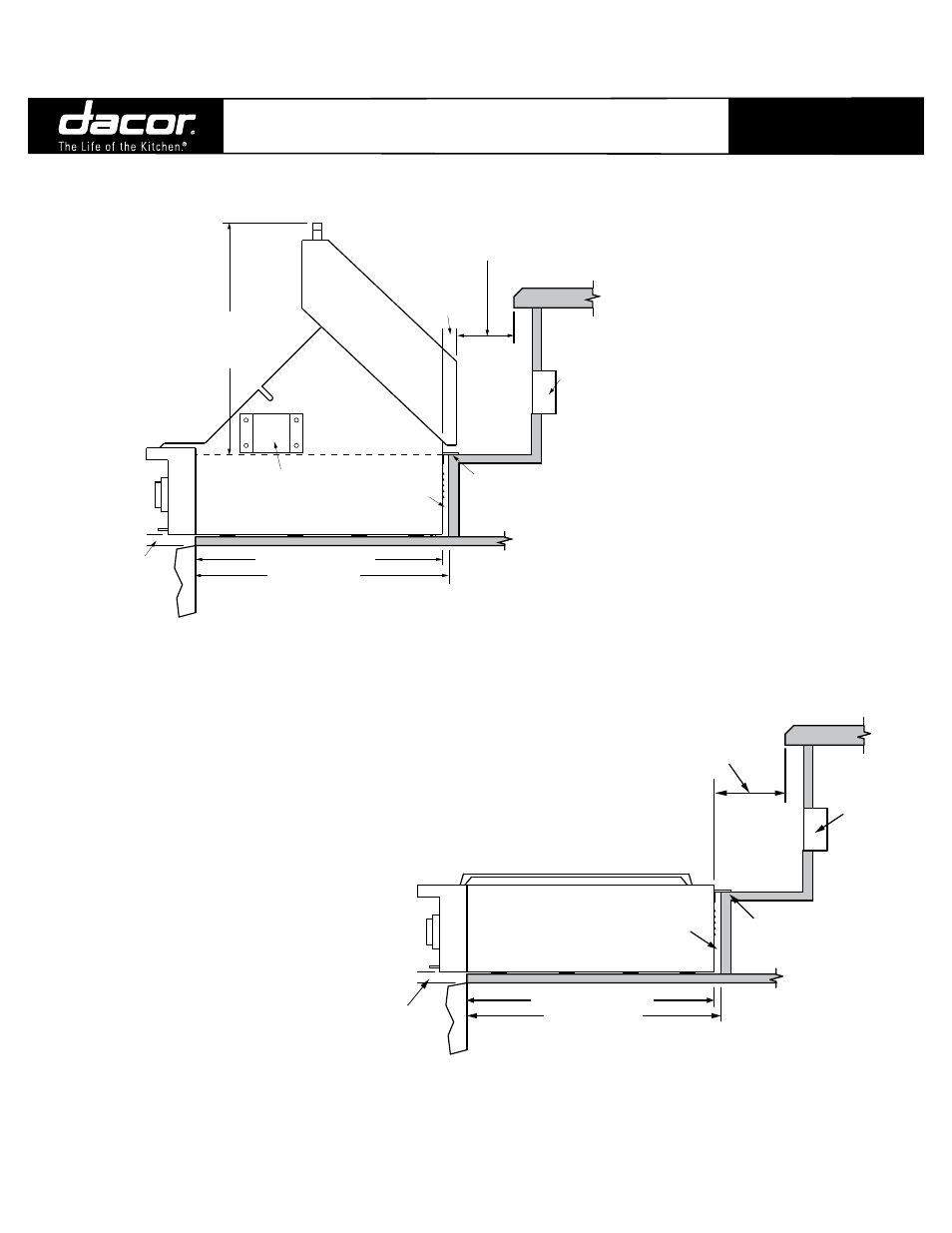

OBSB162 cUTOUT DImENSIONS
SIDE vIEW
Junction
Box
Trim frame
(accessory)
3/4" (19mm)
Min. to any
material*
10" (254mm) Min. to combustibles
2" (51mm) Min. to non-combustible
1/4"
(6mm)
23 3/4" (603mm)
24" (610mm)
OB36, OBS36, OB52 AND OBS52
cUTOUT DImENSIONS, SIDE vIEW
Rotisserie mounting
bracket (factory installed)
Junction
Box
Trim frame
(accessory)
3/4" (19mm)
min. to any
material*
1/4"
(6mm)
1 1/4"
(32mm)
10" (254mm) Min. to combustibles
1 1/4" (32mm) Min. to non-combustible
28 1/2" (724mm)
To finished
countertop
23 3/4" (603mm)
24" (610mm)
All tolerances: +1/16”, -0, (+1.6mm, -0) unless otherwise stated
