Dacor OBAD20 User Manual
Dacor Grills
Part No. 102547 Rev. A
Installation Instructions
Outdoor Grill Accessory Doors
nOteS:
Remove the door from the mounting frame prior to installing the frame. Install the front frame
utilizing the return flange mounting holes located on the left and right side of the frame. After the
frame is in place, level, plumb and install the door. Check for correct latch alignment.
Overall Width
OBAD20 - 19 1/2" (495mm)
OBAD36 - 35 7/8" (911mm)
Overall Height
21" (533mm)
Overall Depth
1/4" (6mm) deep return on frame edge
Cutout Width
OBAD20 - 16 3/4" (425mm)
OBAD36 - 33 1/8" (841mm)
Cutout Height
18 3/4" (476mm)
Cutout Depth
3" (76mm) Minimum
SPECIFICATIONS
MEASUREMENTS

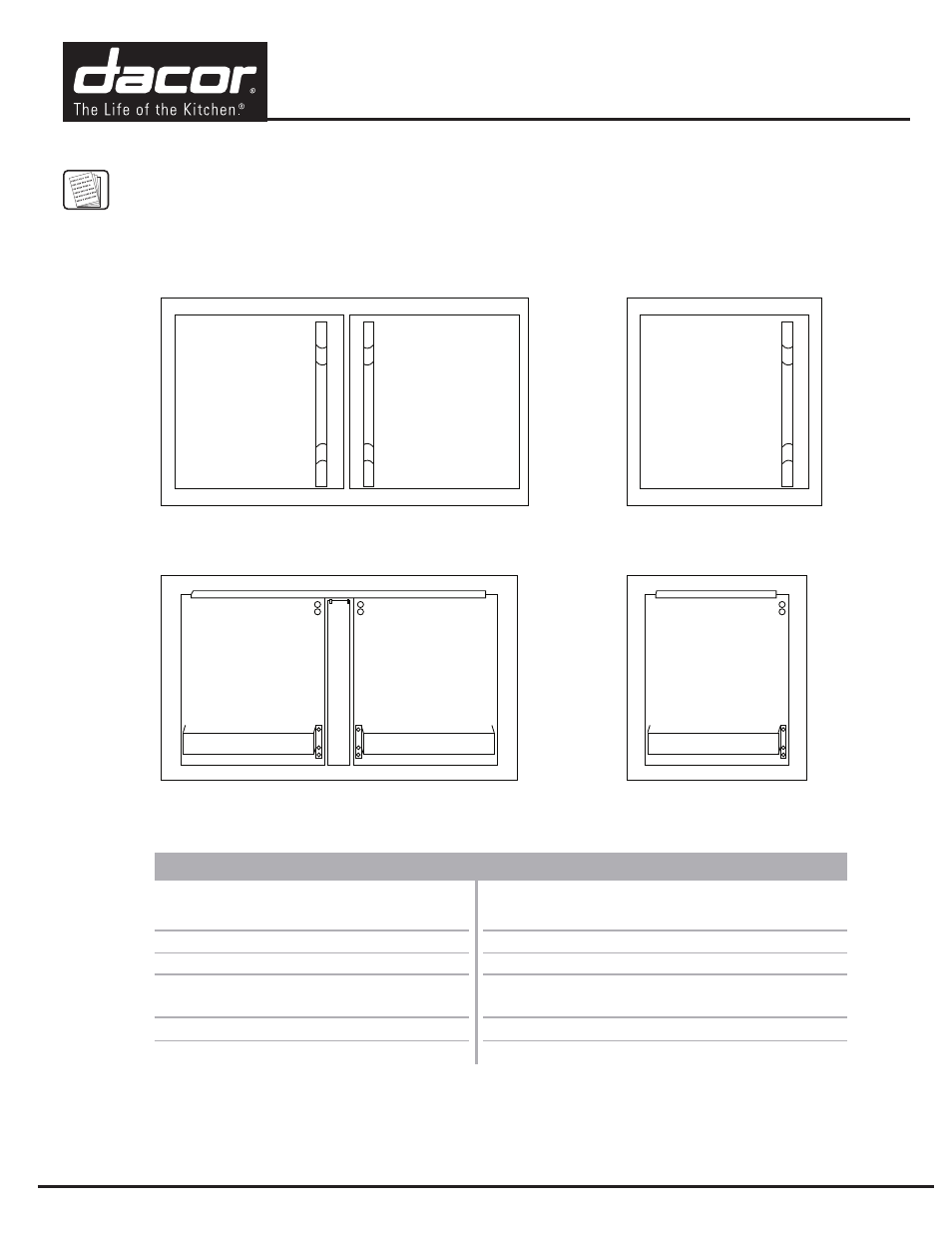

Front View
(OBAD36 shown)
Rear View
(OBAD36 shown)
Front View
(OBAD20 shown)
Rear View
(OBAD20 shown)
