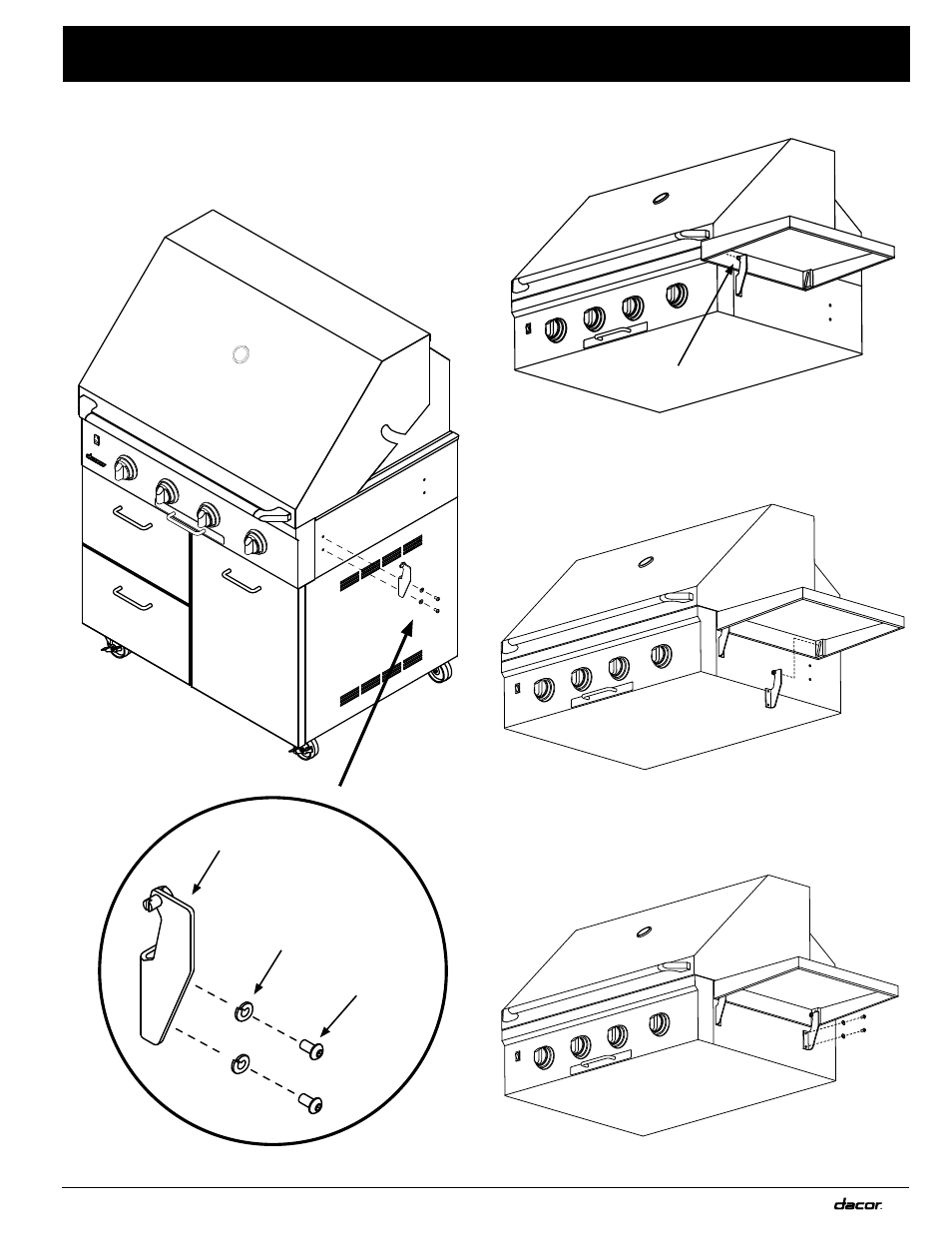

Optional Side Shelf Installation
Install the front mounting bracket for the right side 1.
shelf. Use two (2) of the provided button head fasten-
ers and two (2) lock washers. Tighten into place using
a 5/32” Allen wrench.
Slide the slot on the inside of the shelf over the pin on 2.
the mounting bracket.
While holding the shelf in place, insert the pin on the 3.
back mounting bracket into the slot on the back side of
the shelf.
While holding the shelf and back mounting bracket in 4.
place, attach the back mounting bracket using two (2)
of the provided button head fasteners and two (2) lock
washers.
Repeat steps 1 through 4 for the other shelf. 5.
Installation Instructions
Bracket
Pin
Lock
washer
Button head
fastener
