PLANNING
GUIDE
www.Dacor.com
Phone: (800) 793-0093
Specifications are subject to change without notice.
See installation instructions for additional details.
13.2
36”, 52” Wide Outdoor Grills
16” Wide Side Burner
OB36, OB52, OBS36, OBS52, OBSB162
OBSB162 & OB/OBS/36/52

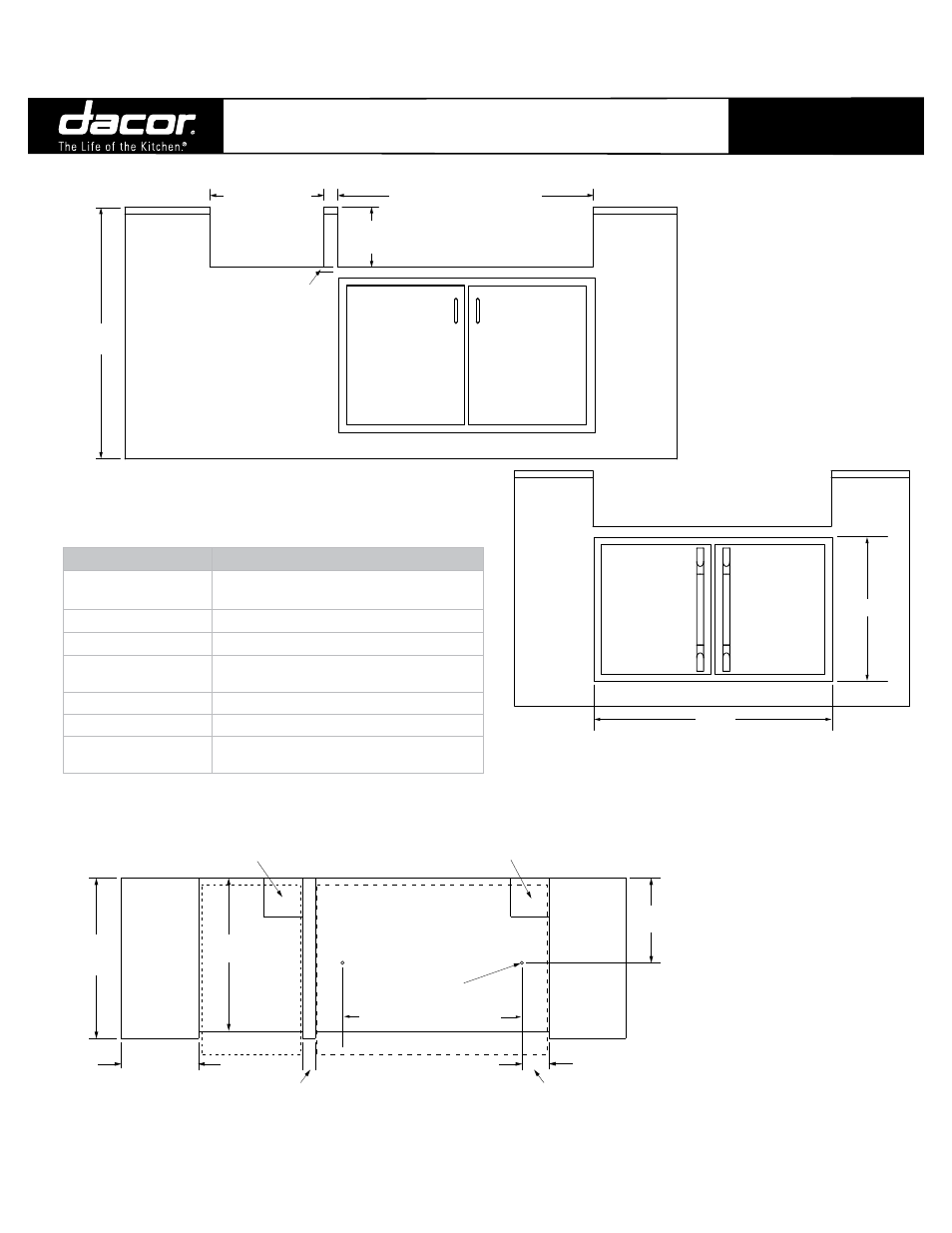

cUTOUT DImENSIONS, FrONT vIEW
(OBAD 36” Accessory Door Shown)
3/4" (19mm)
Min. to any
material for
ventilation
9" (228mm)
Max.
OB(S)36 - 36 1/2" (927mm)
OB(S)52 - 52 1/2" (1334mm)
OBSB162
16 1/8" (410mm)
36"
(914mm)
3/8" (10mm)ø
Both sides
6" x 7"
(152mm x 178mm)
utility cutout
Coutertop
25"
(635mm)
24"
(610mm)
8" (203mm)
Min. to
combustibles above
the countertop surface,
both sides
1 1/2"
(38mm)
12 1/4"
(311mm)
2" (51mm)
OB(S)36 - 33 1/2" (851mm)
OB(S)52 - 49 1/2" (1257mm)
6" x 6"
(152mm x 152mm)
utility cutout
for OBSB162
OBSB162 & OB/OBS/36/52
cUTOUT DImENSIONS, TOP vIEW
Cut-Out for Outdoor Grill
Overall Height
Overall
width
OBADXX AccESSOrY DOOr
DImENSIONS, FrONT vIEW
(OBAD36 ShOWN)
Specifications Measurements
Overall Width
OBAD20 - 19 1/2” (495mm)
OBAD36 - 35 7/8” (911mm)
Overall Height 21” (533mm)
Overall Depth 1/4” (6mm) deep return on frame edge
Cutout Width
OBAD20 - 16 3/4” (425mm)
OBAD36 - 33 1/8” (841mm)
Cutout Height 18 3/4” (476mm)
Cutout Depth 3” (76mm) Minimum
Number of doors
OBAD20 - 1
OBAD36 - 2
AccESSOrY DOOr cUTOUT DImENSIONS
All tolerances: +1/16”, -0, (+1.6mm, -0) unless
otherwise stated
Document # PG13-001 Revised 04/07/09 Page 2/3
