36”, 52” Wide Outdoor Grills
16” Wide Side Burner
OB36, OB52, OBS36, OBS52, OBSB162
9 1/8"
(232mm)
23 3/4"
(603mm)
26 1/2"
(673mm)
27” *
(686mm)
36"
(914mm)
25 1/8"
(638mm)
9 1/8"
(232mm)
23 3/4"
(603mm)
26 1/2"
(673mm)
27" *
(686mm)
52"
(1321mm)
25 1/8"
(638mm)

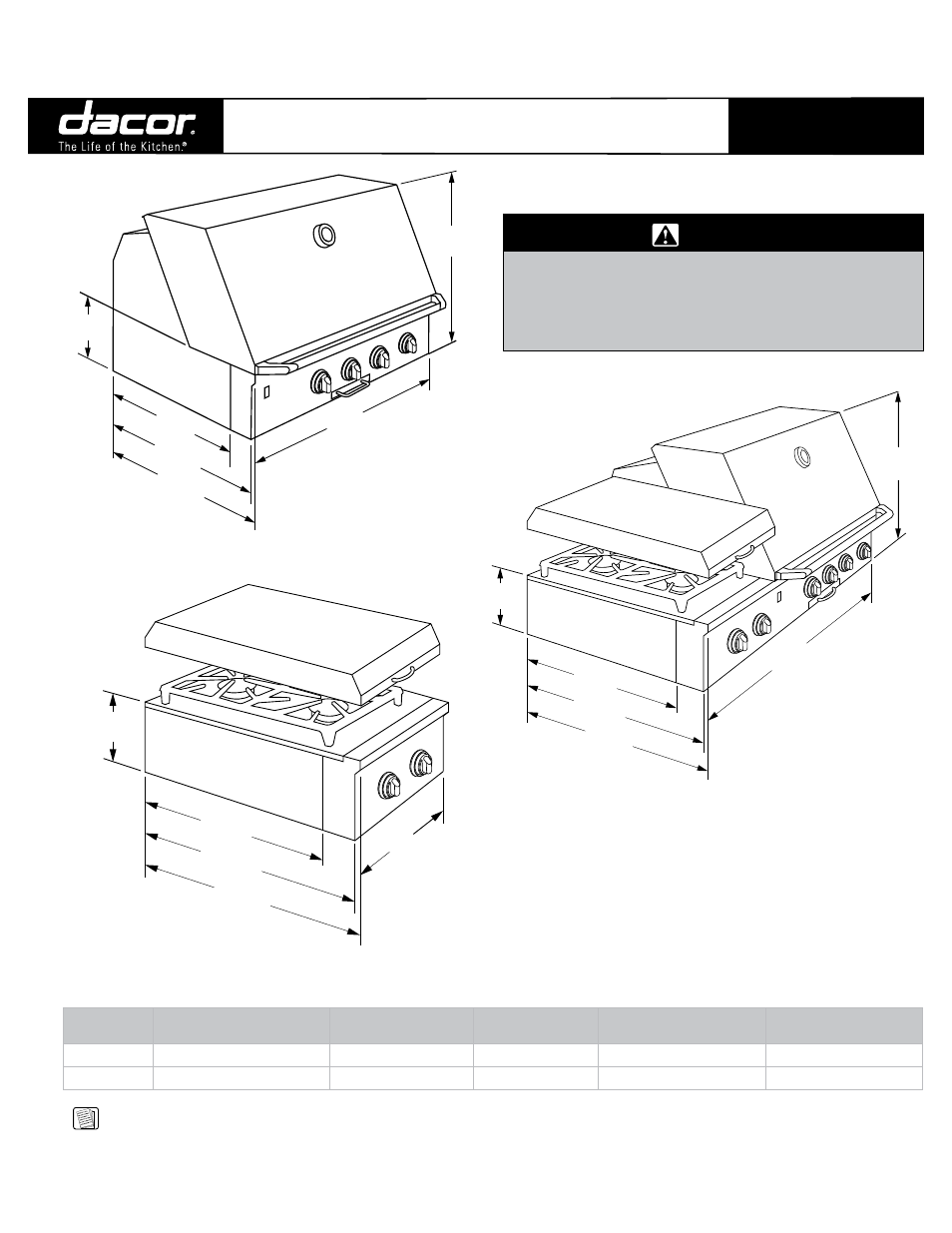

OB/OBS36 OvErALL DImENSIONS
OB/OBS52 OvErALL DImENSIONS
9 1/8" ***
(232mm)
23 3/4"
(603mm)
26 1/2"
(673mm)
27" **
(686mm)
16"
(406mm)
OBSB162 OvErALL DImENSIONS
Note:
Supply access for the rotisserie power or an alternate 120 Vac duplex outlet location.
Model type electrical Circuit Required total Connected Load Gas type Manifold Pressure
Minimum Gas Supply
Pressure
Natural Gas 120 Vac, 60 Hz, 15 Amp. 2.9 Amps (0.35 kW) Natural 4” Water Column 5” Water Column
LP Gas 120 Vac, 60 Hz, 15 Amp. 2.9 Amps (0.35 kW) Propane 11” Water Column 12” Water Column
*Total depth with handle: 30” (762mm)
**Total depth with knobs: 28 5/8” (753mm)
***Total height with cover: 12” (305mm)
All tolerances: +1/16”, -0, (+1.6mm, -0) unless otherwise stated
Document # PG13-001 Revised 04/07/09 Page 1/3
waRNiNG
Observe all governing codes and ordinances during ◊
planning and installation. Contact your local building
department for further information.
This appliance must be installed in accordance with the
◊
accompanying installation instructions.
