12
ENGLISH
2 Sound output from the DVD-1000’s digital audio output connectors
Disc played
DVD video
Audio recording format Sound output
Dolby Digital
• Dolby Digital bitstream (1 to 5.1 channels)
• PCM (48 kHz/16 bit) (2 channels) (NOTE 1)
✽ Select with the “AUDIO OUTPUT” in “AUDIO SETUP” in “SETUP” default setting.
(See page 38.)
Video CD MPEG1 • PCM (44.1 kHz) (NOTE 1)
CD Linear PCM • Linear PCM (44.1 kHz)
DTS
• DTS bitstream
✽ Select with the “AUDIO OUTPUT” in “AUDIO SETUP” in “SETUP” default setting.
(See page 38.)
Linear PCM
48 kHz/96 kHz
16/20/24 bit
• Linear PCM (48 kHz/16 bit) (2 channels)
• No output
✽ Select with the “AUDIO OUTPUT” in “AUDIO SETUP” in “SETUP” and “LPCM
SELECT” default setting. (See page 38.)
NOTE 1: Compressed audio is converted to PCM before output.
NOTE 2: When “AUDIO OUTPUT” is set to “DIG./NORMAL” or “DIG./PCM”, no analog signals are output.
• Linear PCM audio is the signal recording format used for music CDs.
While the signals are recorded at 44.1 kHz/16 bit for music CDs, for DVDs they are recorded at 48 kHz/16 bit to 96 kHz/24 bit, providing
higher sound quality than music CDs.

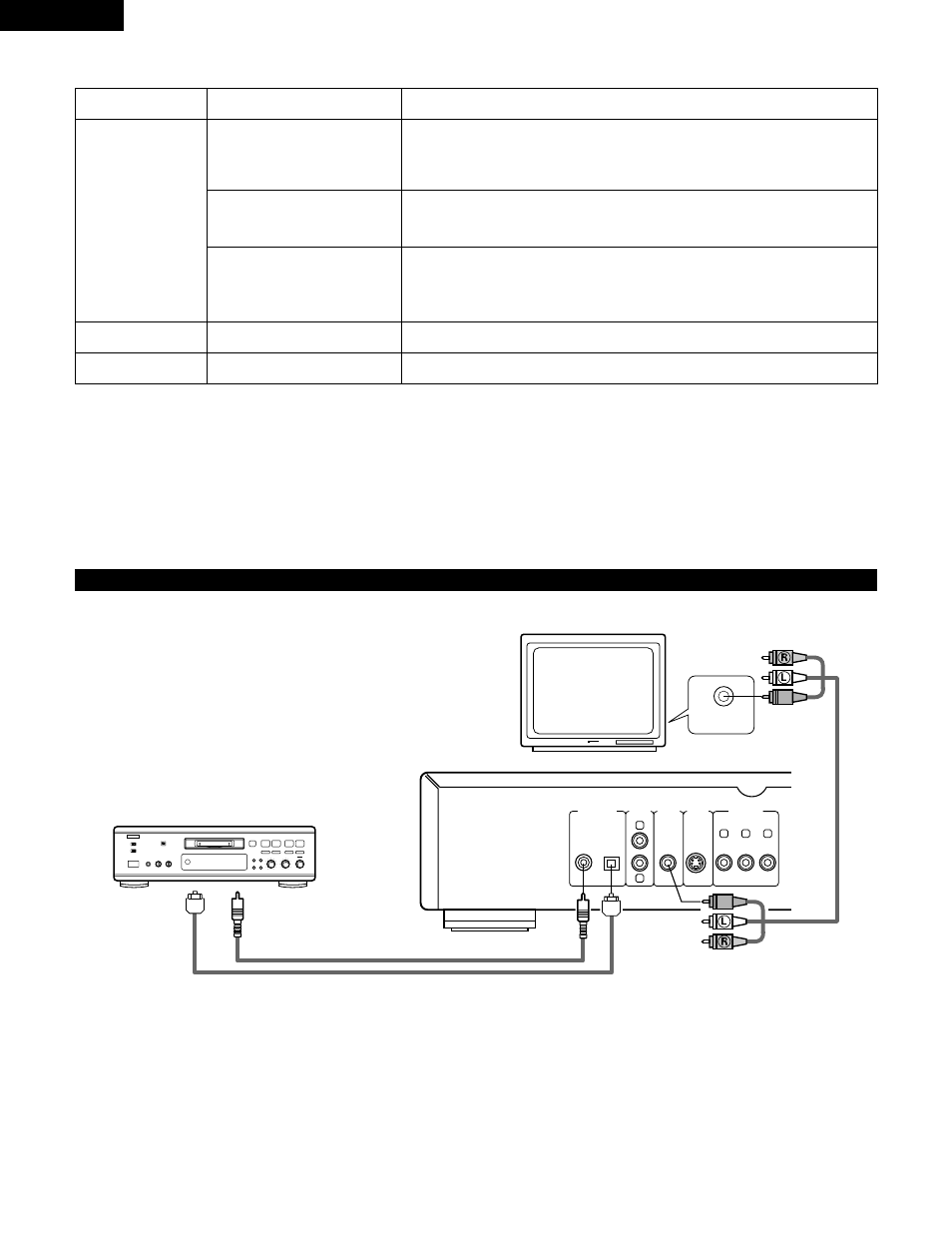

(4) Connecting to a Digital Recorder (MD Recorder, DAT Deck, etc.)
Y C B C R
COMPONENT
VIDEO OUT
R
L
AUDIO
OUT
VIDEO
OUT
S-VIDEO
OUT
DIGITAL OUT
(PCM/BITSTREAM)
OPTICAL COAXIAL
VIDEO IN
8 9
B
Digital audio input connector (COAXIAL)
Digital audio input connector (OPTICAL)
TV
DVD-1000
✽ Set the “AUDIO OUTPUT” default setting as shown below.
(See page 38, 39.)
• “AUDIO OUTPUT”
→
“DIG./PCM”
• “LPCM SELECT”
→
“ON”
Playing DVDs with incorrect settings may result noise that could
damage your ears or the speakers.
• Set the “ TV TYPE ” in “ VIDEO SETUP ” in “ SETUP ” comply with
your TV's video format. When the TV is NTSC formated, set to
NTSC. (See page 37.)
