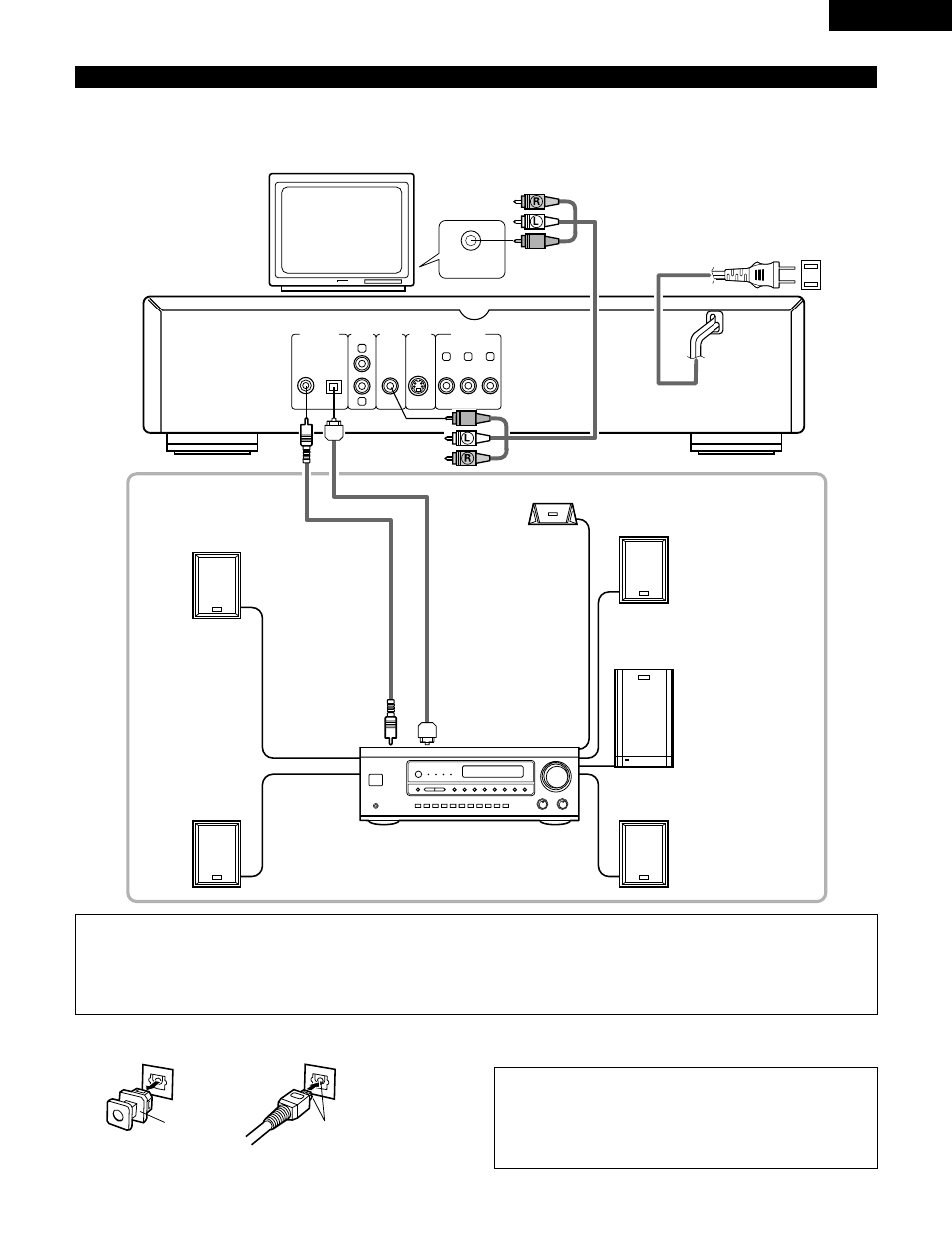

(3) Connecting to a AV amplifier with a built-in decoder
When DVDs recorded in Dolby Digital or DTS are played, Dolby Digital or DTS bitstream signals are output from the DVD player’s digital
audio output connectors. If a Dolby Digital or DTS decoder is connected, you can achieve sound with the power and sense of presence
of a movie theater or concert hall.
TV
DVD-1000
Digital audio input
connector (COAXIAL)
Front speaker (left)
Surround speaker (left)
Center speaker
Digital audio input
connector (OPTICAL)
AV amplifier with a built-in decoder
(AV control center)
Front speaker (right)
Subwoofer
Surround speaker (right)
2 Connecting an optical fiber cable (commercially available) to the digital audio input connector (OPTICAL)
NOTE:
• Store the dust cap in a safe place, and be careful not to
lose it.
When not using the terminal, attach the cap to protect
the terminal from dust.
Dust cap Line up in proper direction
Remove the dust cap, line up the cable in the proper directly, then
insert it securely as far as it goes.
NOTES:
• Set the “ AUDIO OUTPUT ” in “ AUDIO SETUP ” in “ SETUP ” setting to “ DIG./NORMAL ” . (See page 38.)
• Set the “ TV TYPE ” in “ VIDEO SETUP ” in “ SETUP ” comply with your TV's video format. When the TV is NTSC formated, set to NTSC.
(See page 37.)
• Harsh noise that could harm your ears or damage the speakers is generated when a DVD recorded in DTS is played while using a
decoder, etc., that is not DTS-compatible.
To power outlet
Optical fiber cable
(commercially available) 75 Ω /ohms pin-plug
cable (commercially
available)
