System and Design Manual, Revision 2

Operator Functions 5–3

S

S

y

y

s

s

t

t

e

e

m

m

S

S

e

e

t

t

u

u

p

p

The System Setup screen is used to configure the system-specific parameters
such as transponder characteristics, allocation factor (carrier spacing), step size
(channelization), etc.

• It also provides for enabling and disabling the LinkSync™ features;

enabling and disabling the redundant NMS; and defining the default
characteristics for data, and video circuits.

• A sample System Setup screen is illustrated in Figure 5-2.

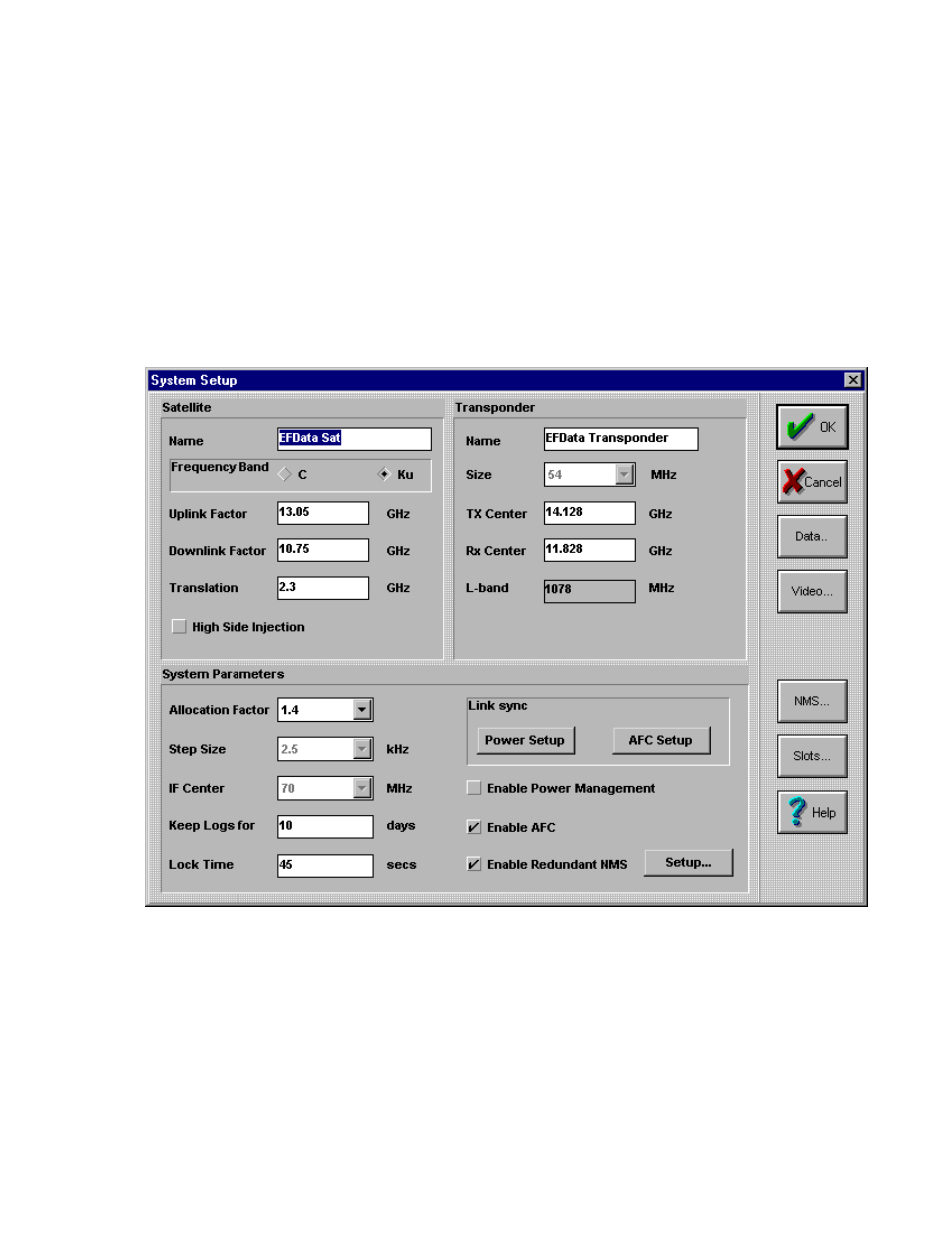

Figure 5-2. System Setup
