Comtech EF Data MIDAS 4 System and Design User Manual
Page 19
System and Design Manual, Revision 2
Introduction 1–5
• Each traffic node can be monitored in real time to aid in remote
troubleshooting.
The MIDAS Controller site consists of the MIDAS controller and an operator
workstation running one of the MIDAS user interface programs.
A customer furnished printer(s) is connected to the operator workstation for
printing logs and reports.
A typical MIDAS System is illustrated in Figure 1-1.

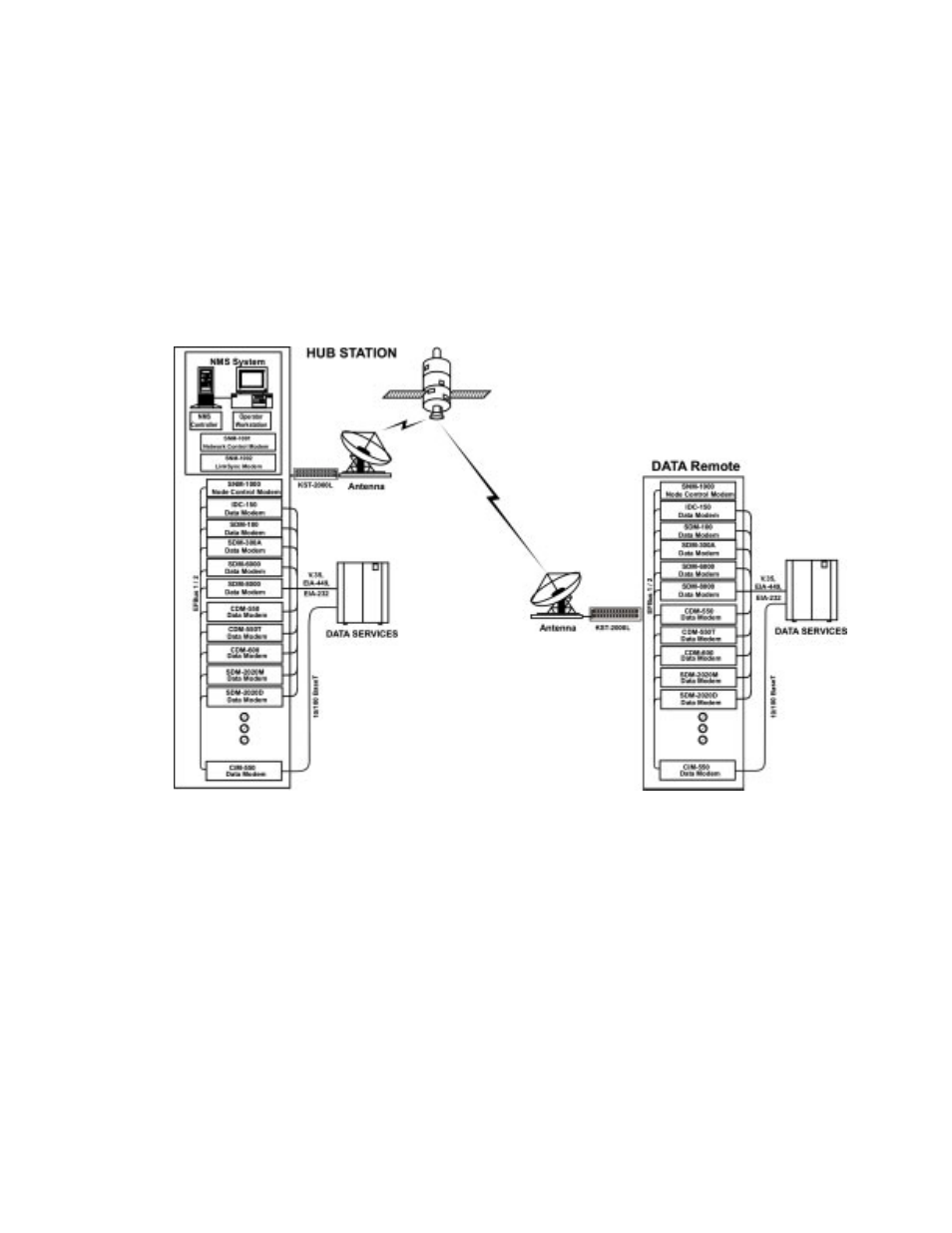

Figure 1-1. Typical MIDAS System
