System and Design Manual, Revision 2
4–2

Network Management System

IMPORTANT

The MIDAS Controller can be located separately at an Earth
Station, or can be co-located with one or more traffic nodes
sharing RF equipment and the antenna. The Earth Station
hosting the site is typically referred to as the MIDAS Controller
site.

N

N

M

M

S

S

A

A

r

r

c

c

h

h

i

i

t

t

e

e

c

c

t

t

u

u

r

r

e

e

MIDAS consists of the following and is shown in Figure 4-1:

• The MIDAS Controller that also hosts the network database
• MIDAS Operator Workstation with a Graphical User Interface (GUI)
• Network Control Modem
• LinkSync™ Modem
• Printer (customer-supplied, optional)

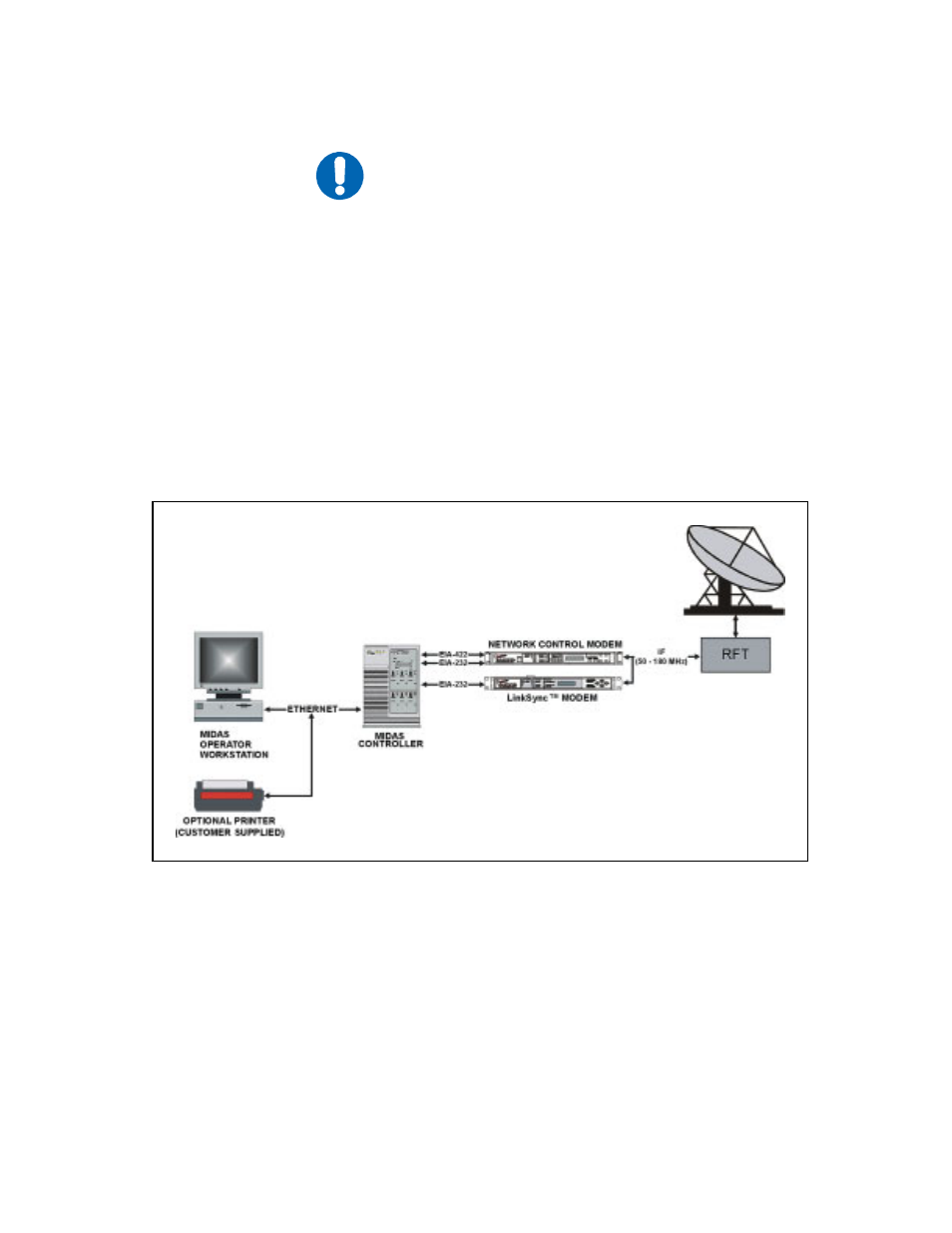

Figure 4-1. MIDAS Network Management System
