A: M6x12 Screw
Qty: 4pcs
A
4
1 5
LP Gas Grill
ASSEMBLY INSTRUCTIONS
10 11

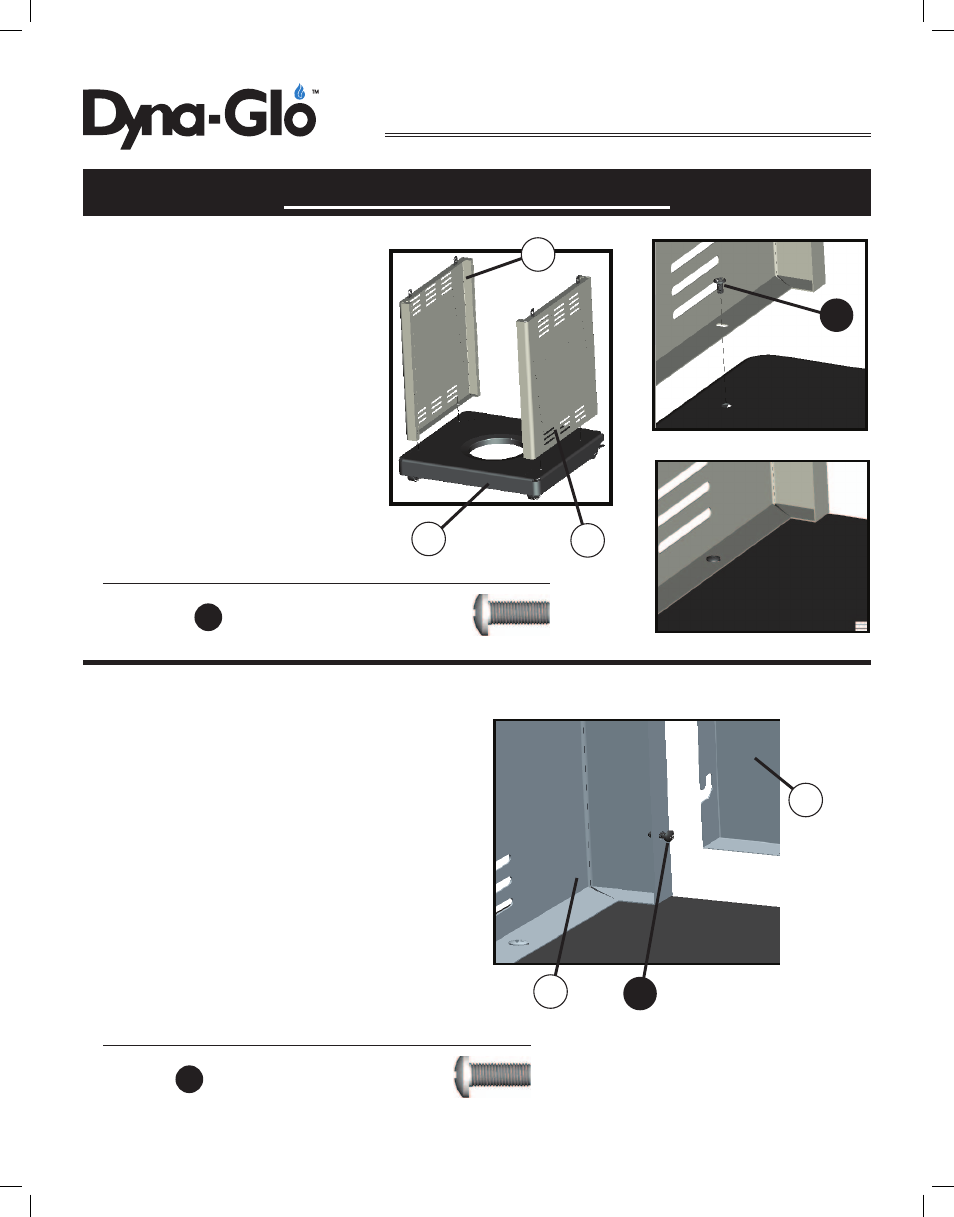

Step 3
1. Attach the cart left side panel
(4) to the bottom shelf (1) with
two screws (A), but do not
fully tighten.
2. Attach the cart right side
panel (5) to the bottom shelf (1)
in the same way.
Step 4
Install two screws (A) into the cart left side
panel and two screws (A) into the cart right
side panel (5) as illustrated at right. Do not
fully tighten screws (keep approximately 4
to 6mm from fully installed) as the cart rear
panel (8) has key hole slots that need to slide
onto these screws.
A
M6x12
Scr ew
Hardware Used
4 pc
4
5
A
1
A
M6x12
Scr ew
Hardware Used
4 pc
5 A
8
