LP Gas Grill

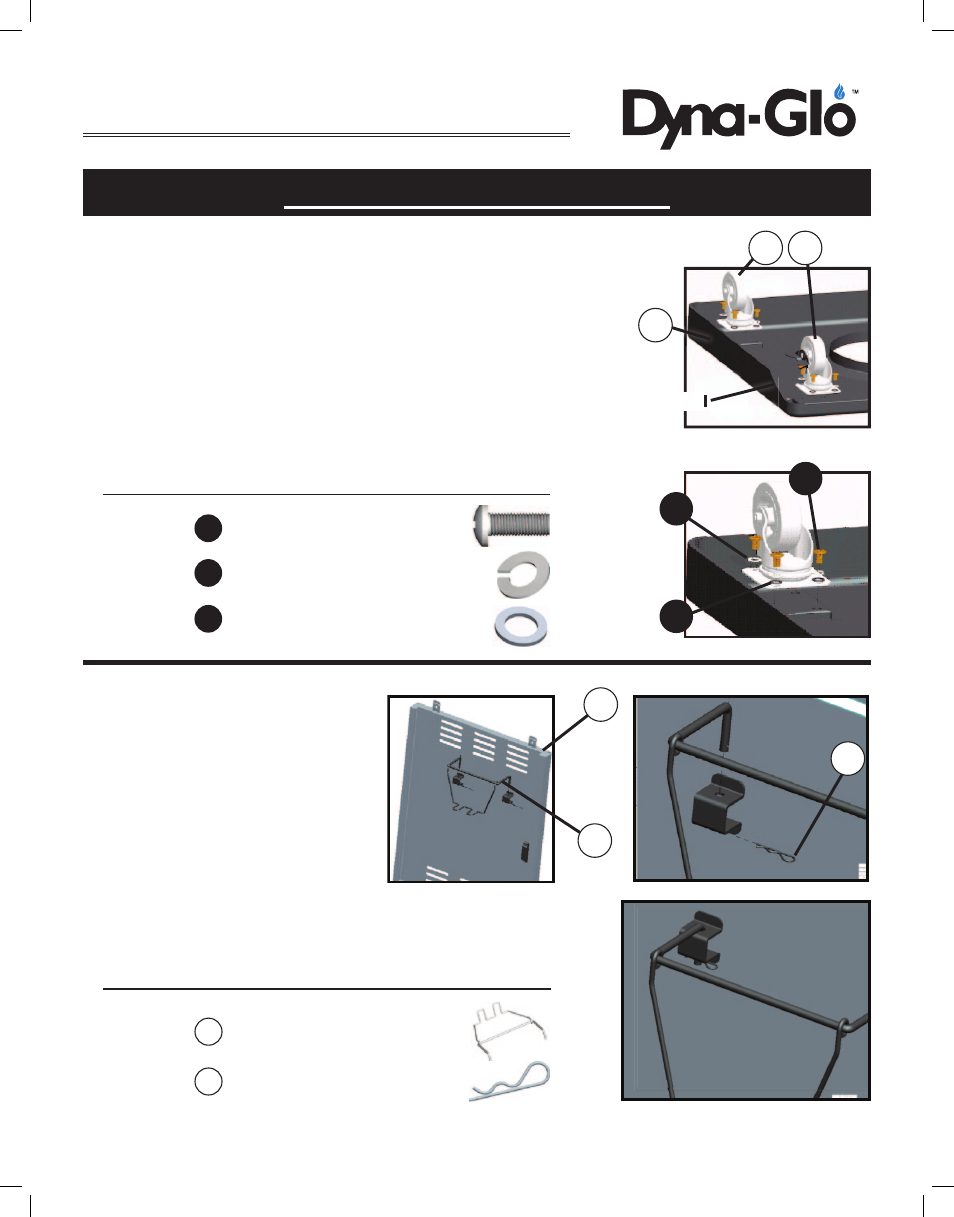

ASSEMBLY INSTRUCTIONS
Step 1
1. Secure each locking caster (2) to the back side (side that is
beveled for access to locking mechanism when assembled and
upright) of the bottom shelf (1) using four screws (A) four spring
washers (F) ) and four flat washers (G). Then tighten all screws.
Step 2
First, remove the pins (7) from
the cylinder holder (6). Insert the
cylinder holder (6) through the
holes in the bracket pre-attached
to the cart right side panel (5).
Lock in place with the pins (7).
Back Side Beveled
1
3
6
7
5
A
F
M6x12
Scr ew
6MM
Spring Washer
Hardware Used
16 pc
16 pc
2. Install the casters (3) to the front side
(not beveled) of bottom shelf using four
screws (A) four spring washers (F) ) and
four flat washers (G). Then tighten all screws.
6
5
7
Cylinder
Holder
Pin
6
7
1 pc
2 pc
Parts Used
