DMD1050 Satellite Modem Board
Web Browser
MN-DMD1050
7–41
Revision 9
RESET LATCHED ALARMS
Clicking on this button will reset (Clear) all Latched Alarms
FORCE ALARM TEST
Clicking on this button will force alarms.
Alarms / Common Menu

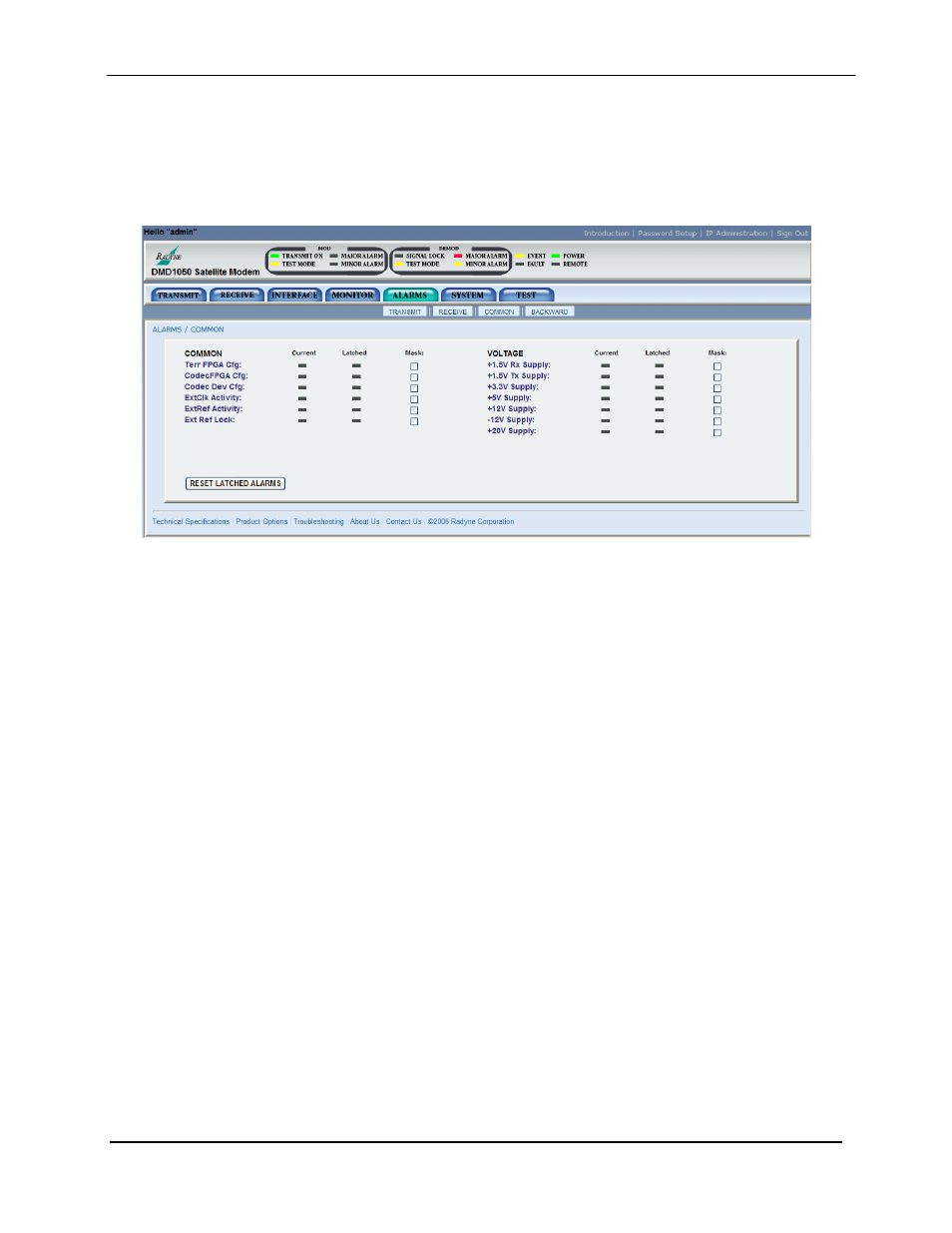

Figure 7-24. Alarms / Common Menu
COMMON ALARMS
Terr FPGA Cfg:
{Pass/Fail, Unmasked/Masked}
Indicates an Interface Card FPGA configuration failure.
Codec FPGA Cfg:
{Pass/Fail, Unmasked/Masked}
Indicates Turbo Codec Card FPGA configuration failure.
Codec Dev Cfg:
{Pass/Fail, Unmasked/Masked}
Indicates Turbo Codec Card ASIC configuration failure.
ExtRef Activity:
{Pass/Fail, Unmasked/Masked}
Indicates External Reference Activity failure.
ExtRef Lock:
{Pass/Fail, Unmasked/Masked}
VOLTAGE ALARMS
+1.5V RX Supply
{Pass/Fail, Unmasked/Masked}
Displays the measured voltage of the 1.5 Volt Rx power bus
located inside the modem.
-1.5V TX Supply
{Pass/Fail, Unmasked/Masked}
Displays the measured voltage of the 1.5 Volt Tx power bus
located inside the modem.
