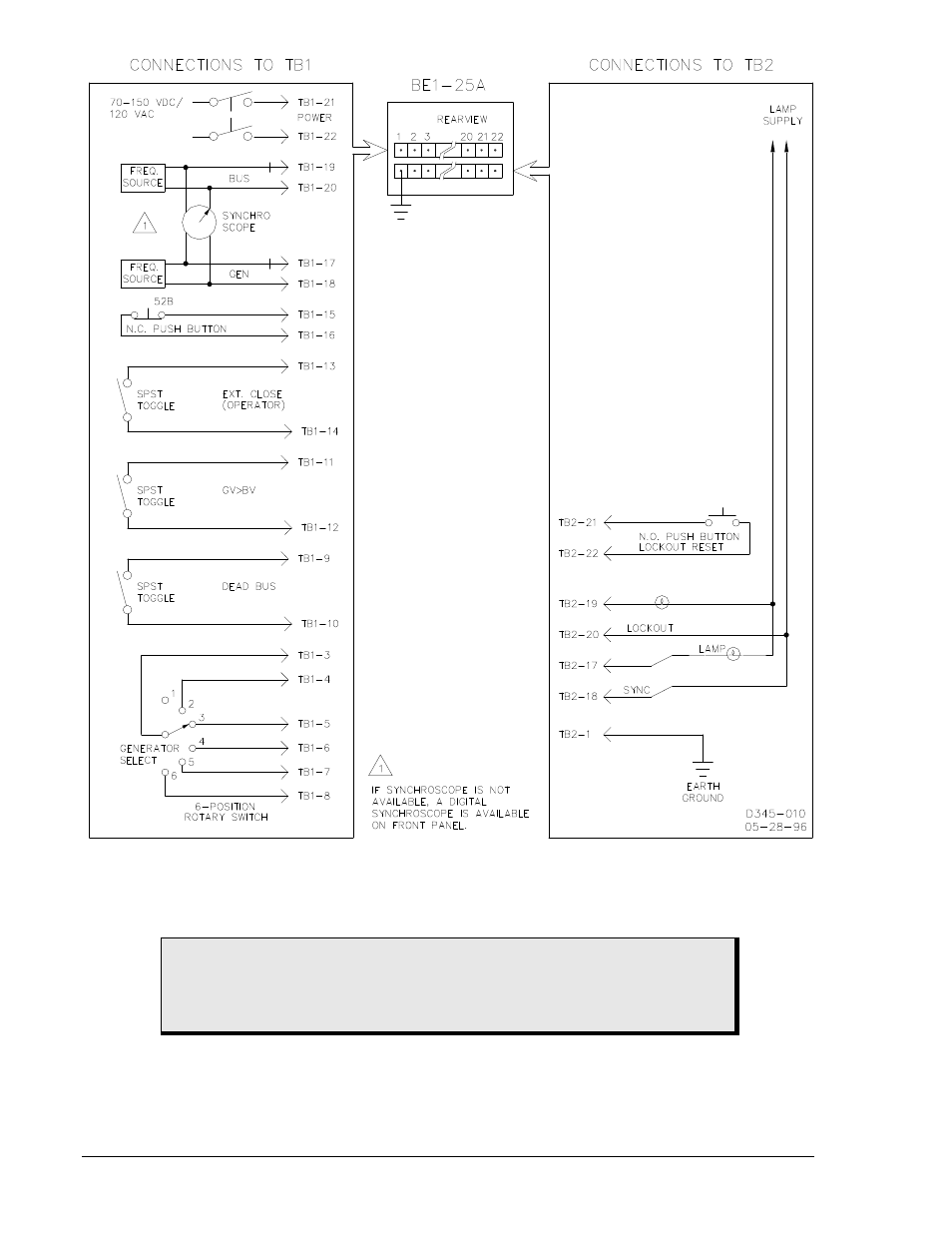

Figure 5-1. Bench Test Setup

CAUTION

After installation, it is inconvenient to remove the many connections on the back
of the unit. For this reason, special provisions for testing have been incorporated
that require the following procedures of steps 1 through 5.

5-4

BE1-25A Testing

9146600990 Rev S
