User / Service Manual Power Stacker
10/06 Rev. 1.09 6
Mounting the option to the TDI
Attention: The power stacker can be mounted to the TDI mechanically from SN
01859xxxx.xxx on – but the TDI has to be equipped with the necessary wiring.
You can easily see if your TDI is equipped with the wires (there has to be a
diode connector on the rear side of the TDI).

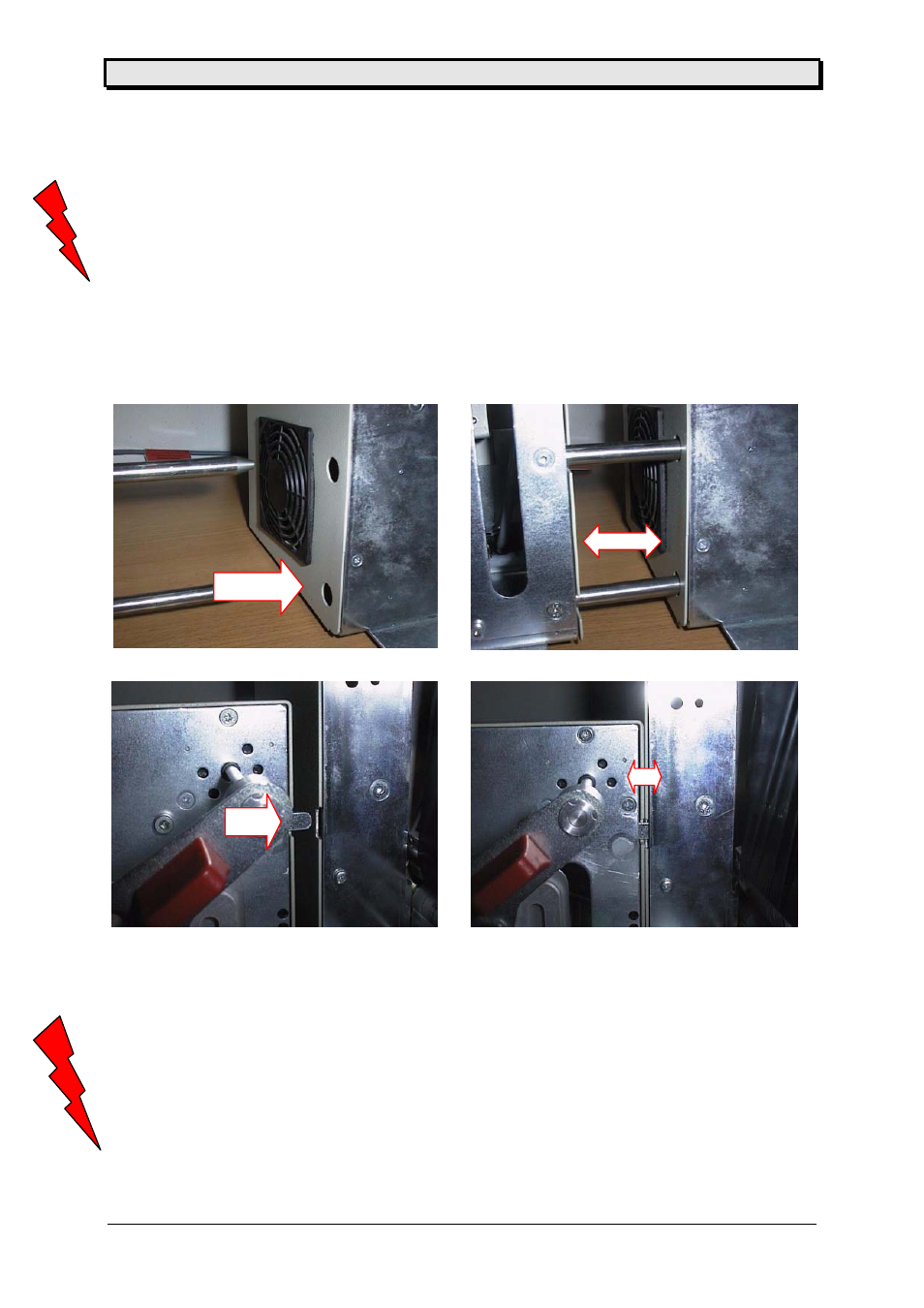

Move the guiding axle into the guiding holes of the TDI (see picture) – as well move the front
plate part of the power stacker into the slot of the TDI ! Both units have to stay together
without any distance (see picture).
After you have mounted the power stacker to the TDI – the electrical connection has to be
done.
Attention: Never connect the power stacker to the TDI – if the TDI is powered on !
Always switch OFF POWER before you connect the power stacker – as
well wait after power off around 2 minutes before connecting.
If you do not – both units can be damaged !
