Micro switch, Reflex sensor – Avery Dennison Stacker User Manual
Page 20
User / Service Manual Power Stacker
10/06 Rev.
1.09
20

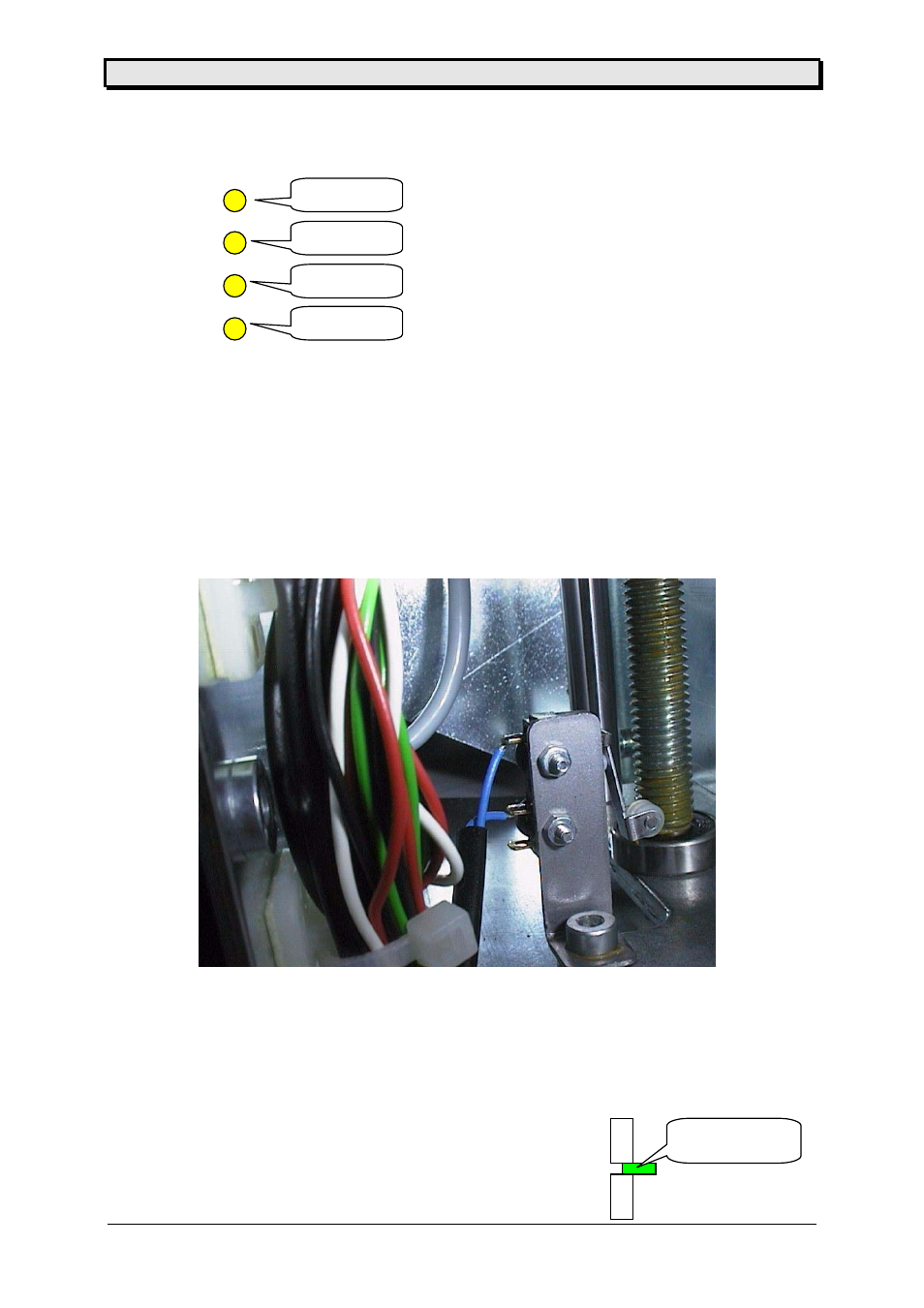

The sensor pairs placed in the front plate are numbered as following
Micro switch
The micro switch (lower end position) can be removed after the cover of the power stacker is
removed and the wire is removed from the CPU board.
Reflex Sensor
The sensor pairs are glued into the front plate ( with Loctite ....) and a special part. If one of
the sensor is defect it has to be removed carefully, the hole has the be cleaned and the new
sensor glued in.
Attention: The sensor has to stay 1 mm behind the front plate.
sensor 1mm
behind the plate
sensor 1
sensor 2
sensor 3
sensor 4
