Paxar Monarch 9855 RFID Printer User Manual

Page 29

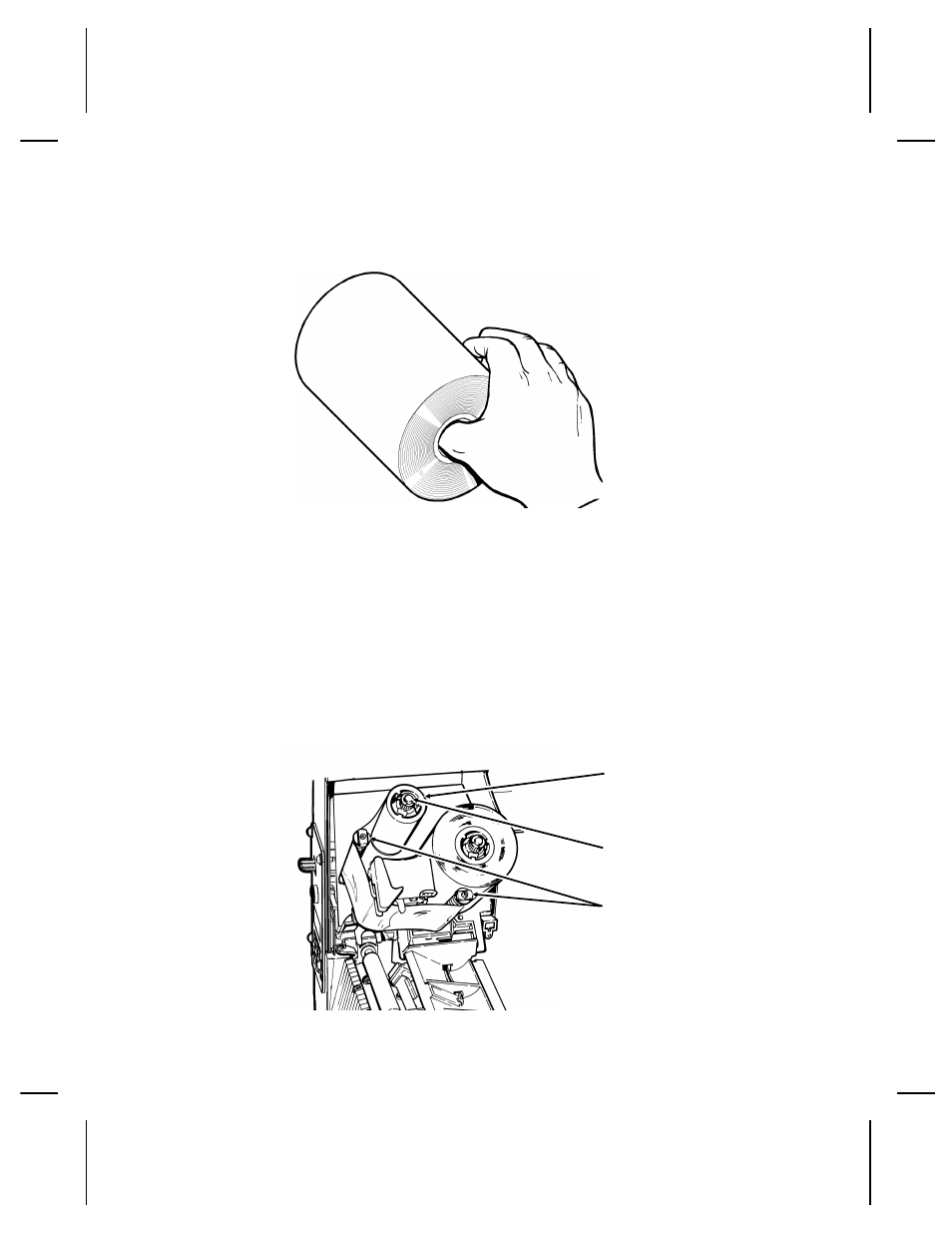

6. Remove the new ribbon from the package as shown. Do not

wrinkle or crush the new ribbon.

7. Slide the ribbon onto the back reel as far as it will go. The

ribbon roll only fits on the reel one way. Carefully unwind a
few inches of ribbon from the bottom of the roll.

8. Carefully feed the ribbon under both ribbon rollers and

printhead as shown.

9. Align the ribbon and make sure it is straight and centered

throughout the path.

10. Tape the ribbon to the take-up core. Do not tape the ribbon

to the take-up reel.

Take-up Core

Take-up Reel

Ribbon Rollers

Loading Ribbon 3-3
