Introduction 1-3

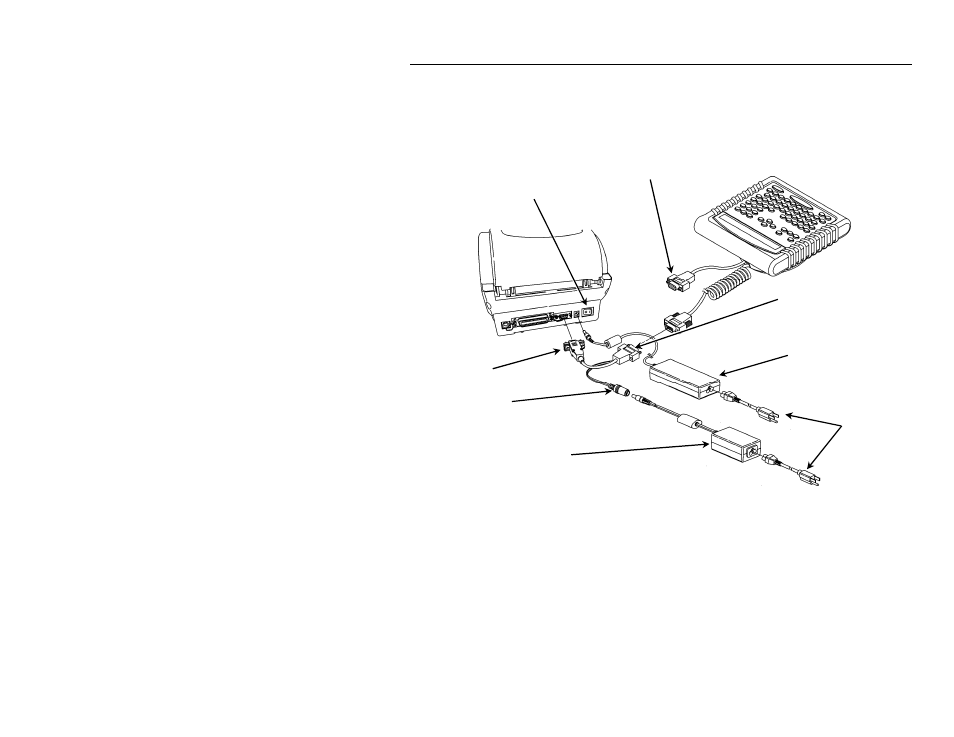

C o n n e c t i n g t h e 9 3 9 I t o a 9 4 1 6 P r i n t e r
1. Turn OFF the printer before you connect the keyboard's cable.
2. Plug the 9-pin coiled keyboard cable into the end of the adaptor
cable.
3. Secure the other end of the adaptor cable to the 9-pin port on the
printer. Tighten the screws on the cables.
4. Connect the power cord to the power supplies.
5. Connect the power supply (24V) to the printer.
6. Connect the small power supply (5V) to the adaptor cable's power
connector.
7. Turn ON the printer. The keyboard receives power from the auxiliary
power supply (5V).
C a b l e
S l o t
K e yb o a r d
P ow er S up p ly ( 5 V )
P ow er
C o n n e c t or
Ad a p t o r
C a b l e
P ri n t er ’s
P ow er S up p ly
( 2 4 V )
K e yb o a r d
C a b l e g o es he r e
P ow er
C o r d s
O N / O F F
Sw it c h
O p t i o n a l S c an n e r
C a b l e
