564 HO Fyre-Stone Installation Instructions
(sku 94700730)
Page 2 of 8
17601669 — 10/13/11
© Travis Industries, Inc.

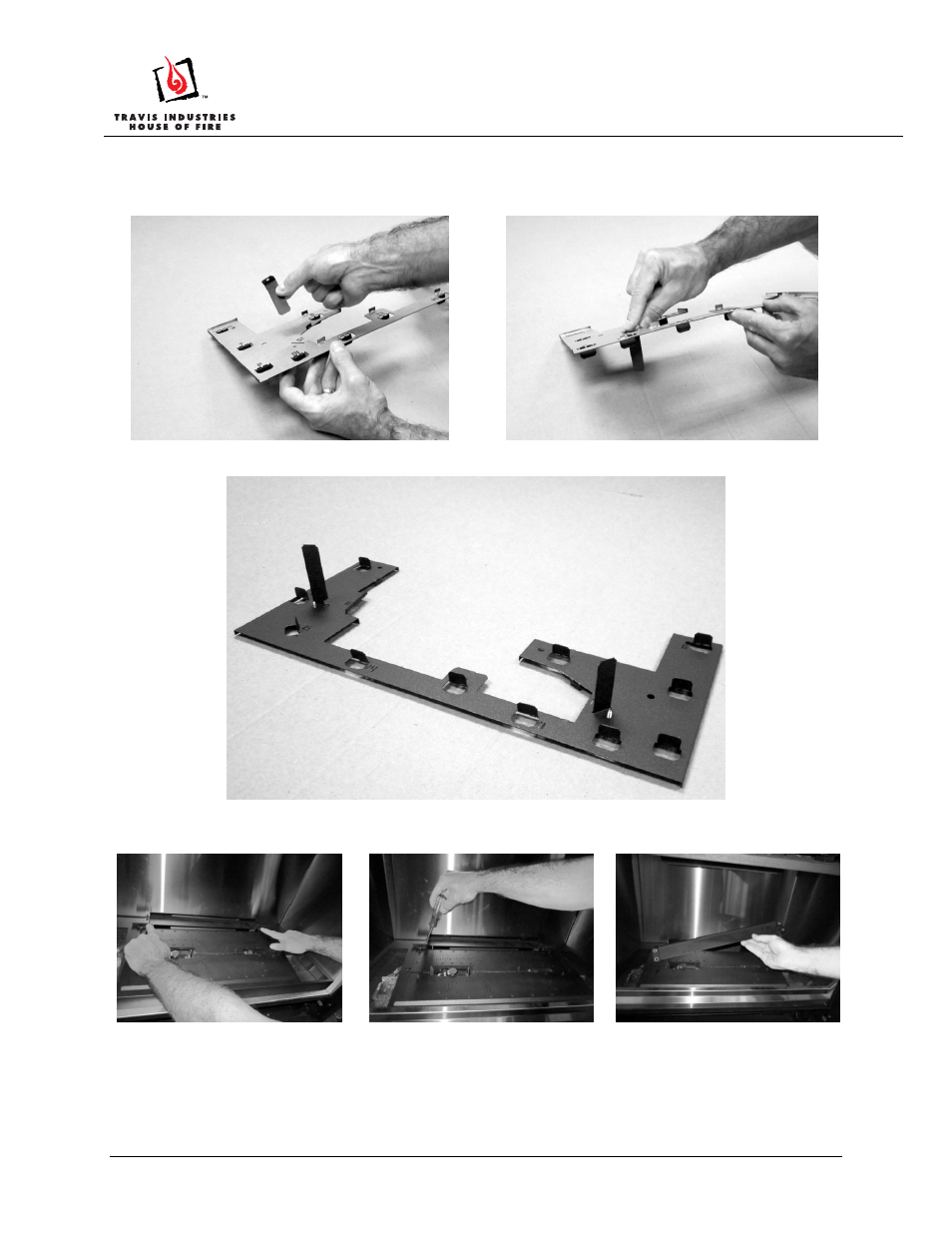

2. Insert the right stone tab through the slot on the front stove grid as shown below. Secure with the
remaining screw.
The front stone grid should now look like the photo below.
3. Remove the rear air deflector from the fireplace as shown below. It is held in place with four (4)
screws (keep the screws).
