Optional Door Screen Inserts – Bungalow Only
OPTION A - Basket Weave (installed in the doors).
•
Place the doors in an upright position. Attach the handle (2) to the door with the included screws (3).
•
Slide the hinge pins (4) into place.

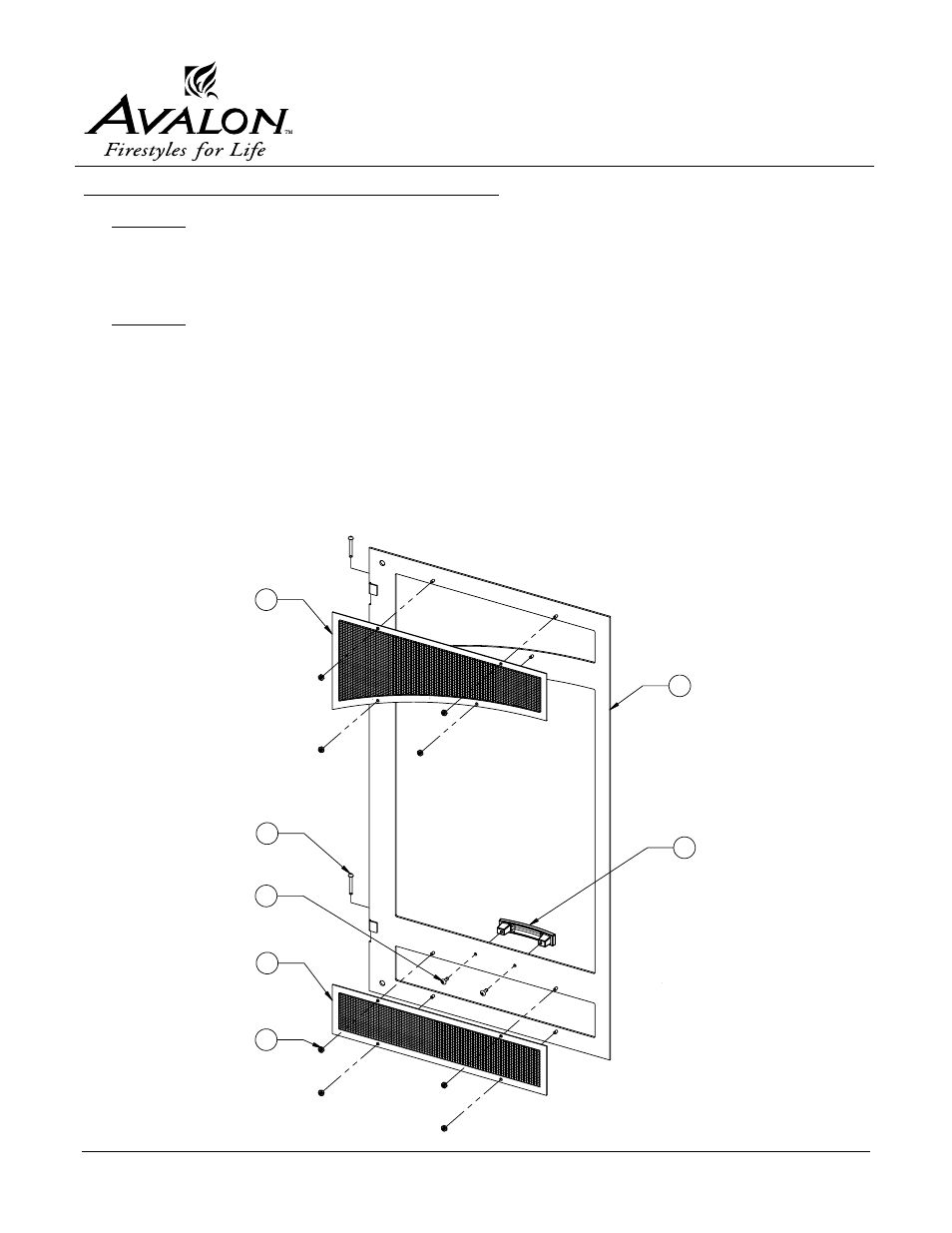

OPTION B – Mesh Door Screen (shipped separately with this kit).
•
Place the doors (1) face down on a suitable work surface).
•
Remove the nuts (7) holding the upper (5) and lower (6) inserts in place. Remove the inserts and
install the mesh screens. Note: the screens have a sheet-metal frame spot-welded to them - make
sure the sheet-metal faces outward – this protects the screen and covers the sharp edges. Secure
the screens with the nuts removed earlier. Do not over-tighten
•
Place the doors in an upright position. Attach the handle (2) to the door with the included screws (3).
•
Slide the hinge pins (4) into place.
