Hardware Preparation and Installation
ARTM-9405 16x10GbE Installation and Use (6806800P45F) 19
2.5.1.1 Front Blade is Installed
Use the following procedure to install the RTM when the front blade is installed.
This procedure assumes that your system is powered. If your system is unpowered, disregard
the blue LED and skip the respective step.
1. Locate the slot where the RTM is to be installed in the shelfs rear, which must be the same
as that of the front blade.
2. Open the lower handle of the front blade to power down its payload. The blue LED on the
front blade starts to flash. This indicates that the front blade is informing the shelf manager
that it wants to power down its payload.
3. Wait until the blue LED on the front blade is lit. When the blue LED is lit, the payload is
powered down.

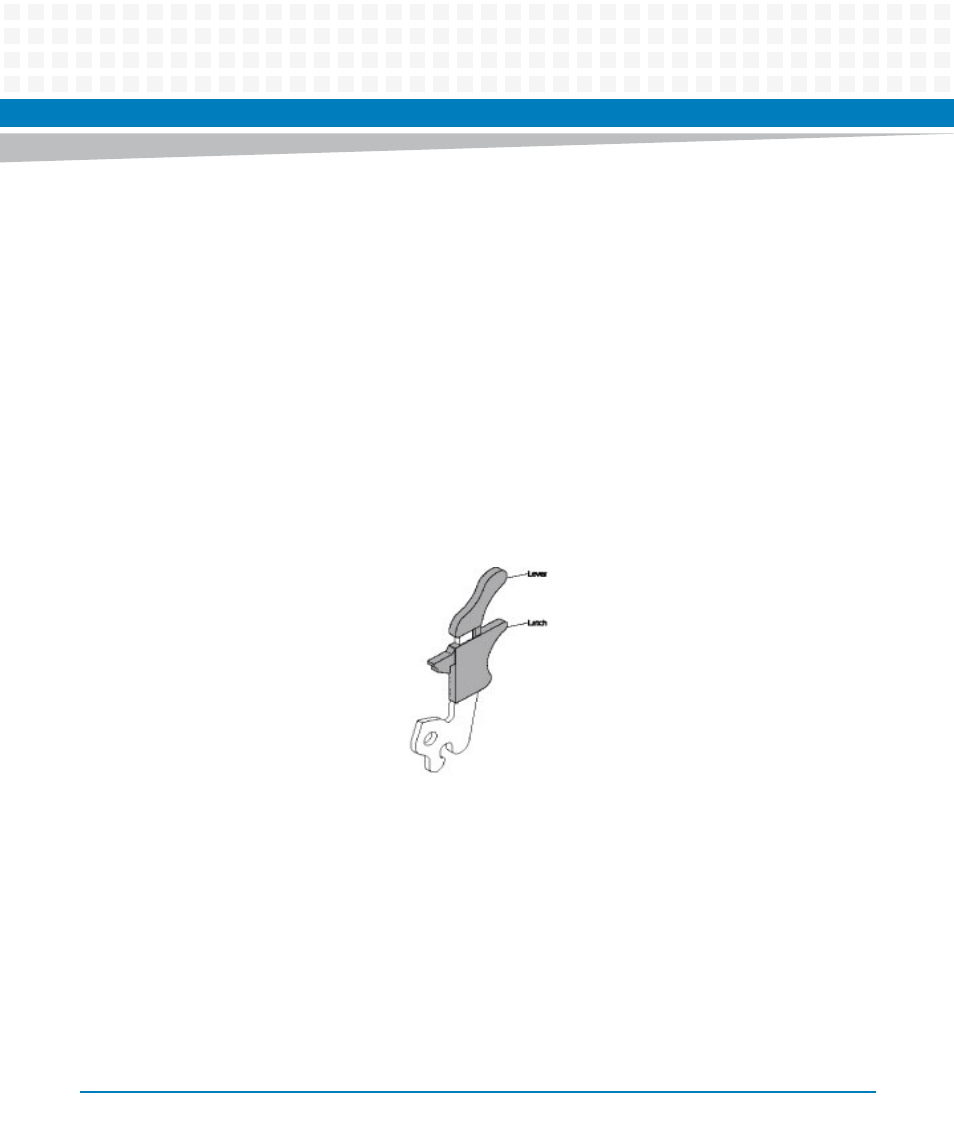

4. Make sure that the top and bottom handles of the RTM are in an outward position by
squeezing the lever and latch together.
5. Insert the RTM into the shelf by placing the top and bottom edges in the card guides of the
slot.
6. Slide the RTM into the slot.
7. Apply equal and steady pressure to the RTM to carefully slide it into the shelf until you feel
resistance.
8. Continue to gently push the RTM until the RTM connectors engage.
9. Squeeze the lever and latch together, and then hook the lower and upper handle into the
shelf rail recesses.
