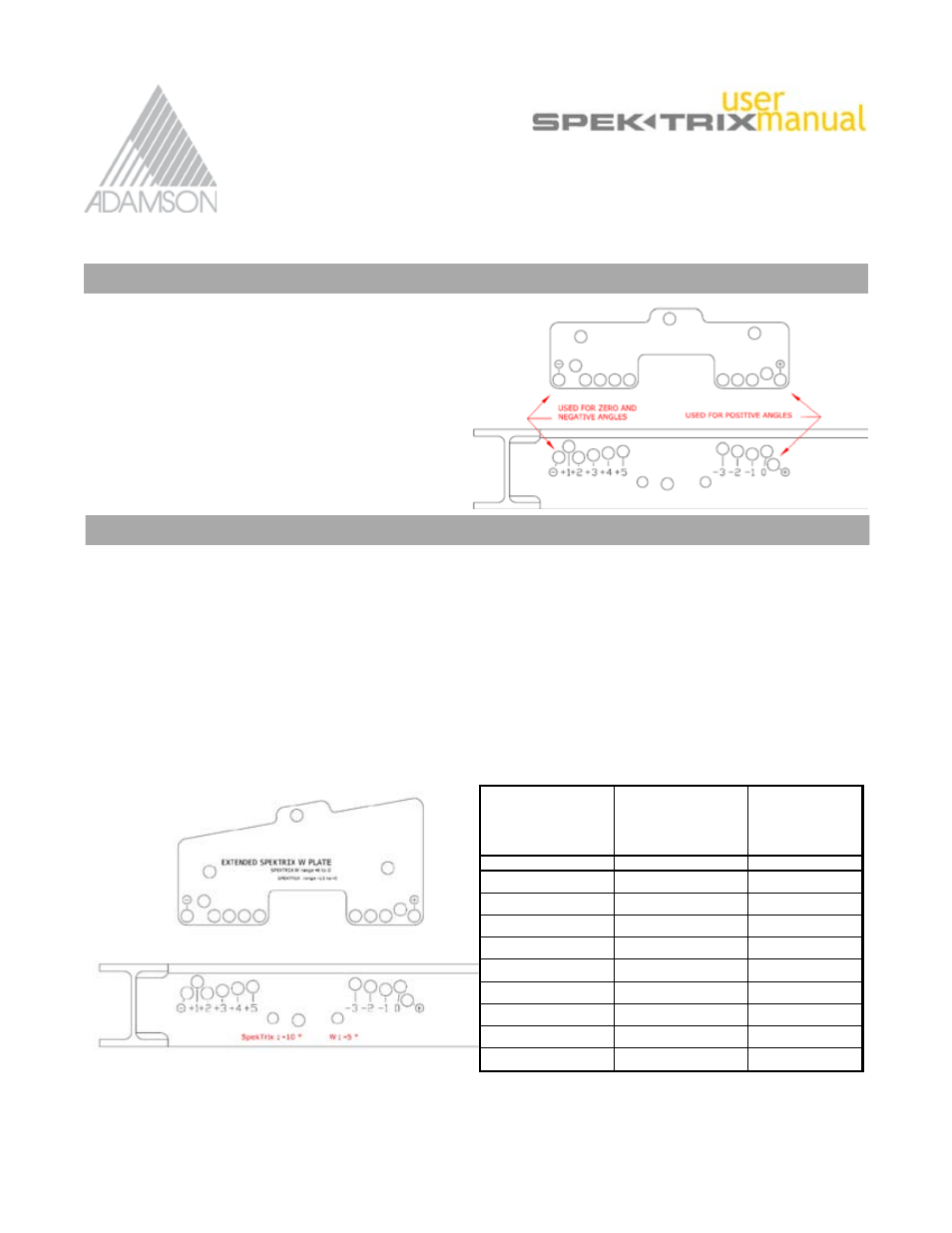

SpekTrix Series User Manual 46 of 72

The “Standard Stacking Plate” is used to achieve angles
of –° to +5° between the first SpekTrix box and the
rigging frame in a stacking configuration.

1) Insert the plate into the frame
2) Place the “Ball Lock Pin” in either; the “+” slot for
positive angles, or in the “–” slot for or 0° or negative
angles.
) Lock the plate with a second “Ball Lock Pin” in
the desired position.

SPEKTRIX PLATE: Standard Stacking Plate for SpekTrix

SPEKTRIX W PLATE: Extended Stacking Plate for SpekTrix and W

The “Extended Stacking Plate” is used to achieve negative angles of -1° to -5° between the first SpekTrix
box and the rigging frame in a stacking configuration. It is also used to achieve negative angles of -8° to 0°
between the first SpekTrix W box and the rigging frame in a stacking configuration.

1) Insert the plate into the rigging frame

2) Insert the first “Ball Lock Pin” into either ”–” or “+“ slot depending on the desired

angle.

Remember that this plate’s ZERO position achieves –10° for SpekTrix boxes, and –5° for the W boxes .
Therefore:
Example 1: if the desired position for the first SpekTrix box is “–8”, the first pin would be inserted into the “+” slot
and second pin into the “+2” slot.
Example 2: If the desired position of the first WAVE box is “–7”, place first pin in the “ – ” slot and the second
pin in the “–2” slot.

Position Indicated

on the Rigging

Frame

First SpekTrix W

Box Angle

(-5)

First SpekTrix

Box Angle

(-10)

+5

0

-5

+4

-1

-6

+3

-2

-7

+2

-3

-8

+1

-4

-9

0

-5

-10

-1

-6

-11

-2

-7

-12

-3

-8

-13

4. Ground stacking the Array
