Horizontal View
It’s useful flip back and forth, between “Vertical” and “Horizontal View”
-While working, make
sure you’re in Map
Mode (F5), when
checking design switch
to S.P.L. Mode (F7)
to get a feel for the
coverage.
(S.P.L. Mode (F7) re-
calculates coverage
after every change,
thus slowing down the
design process)
-One can also adjust
the P.A. system Width
and Angle, as well as
the Stage Width and
Shape in the “Horizontal
View”. To work on a
single rig, (E.g. a “centre
cluster”)
turn off “stereo”.

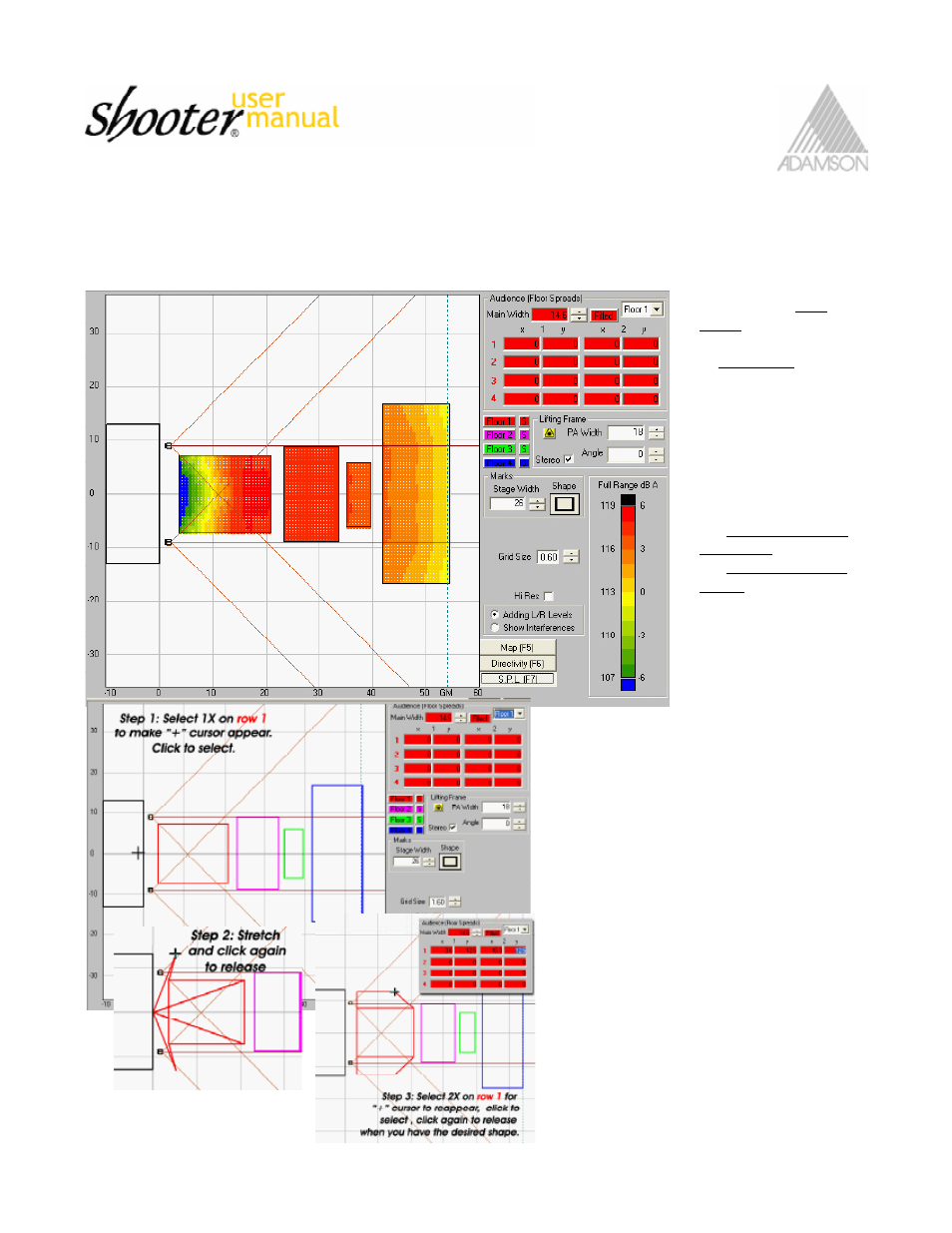

1. For drafting more complex areas select
1X in row 1 . a “+“cursor will appear at
the front of the stage.
2. “Click” on the “+”and stretch to
determine the shape of the first row of
the audience. “Click” to release when
cursor is in the desired place.
. Select 2X to determine the shape of
the last row of floor level 1 .
Remember you can also enter values
manually. Continue to row 2, , 4, if
floor level 1 requires more complex
shapes. To switch to floor level 2, or 4,
use the drop menu on top of the page.
