UM022903-0311 ZAURA System Installation and Configuration
ZAURA ™ RF Wireless Lighting Control
Installation Guide
20
operation returns) or until a new press of the Set Mode button. This mode can be used
after the association of the ZAURA Virtual Dimming Starters to validate that the starters
associated properly.
PIR Test. This mode displays PIR detection status by turning on the blue LED whenever
occupancy is detected. The PIR Test will continue for the lesser of five minutes (after
which normal operation returns) or until a new press of the
Set Mode button.
After you are finished using one of the above special modes, it is good practice to return
the DIP switches to the Normal Operation position.
Dim Control Setting
The Dim Control DIP switches are used to determine how the system reacts to the amount
of natural light in the room, as shown in Figure 16.
Normal Operation. All Virtual Dimming luminaries are turned off if the natural light
level is greater than the dimming threshold, as set by the Light Sensitivity POT. If the nat-

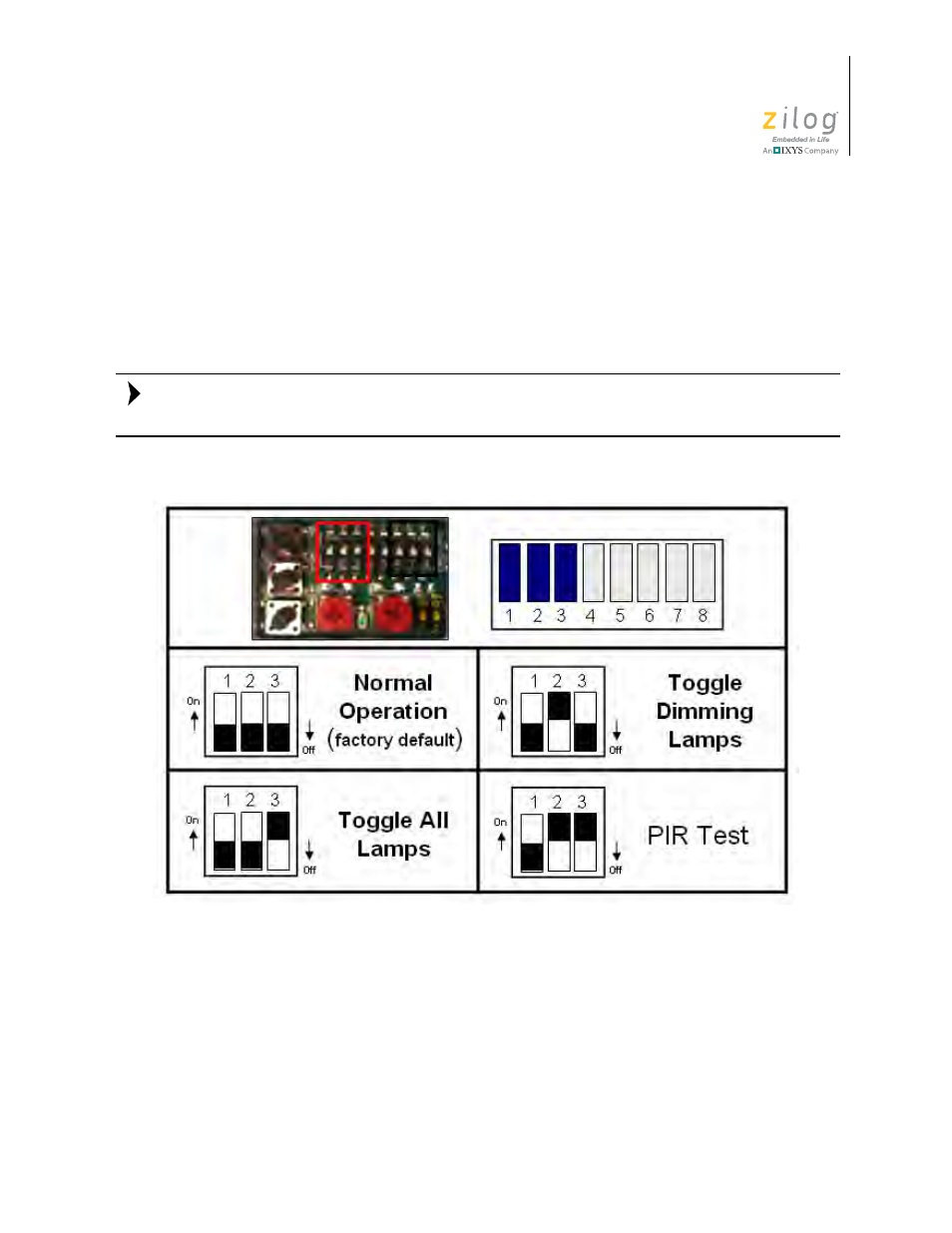

Figure 15. Setting Special Mode DIP Switches
Note:
