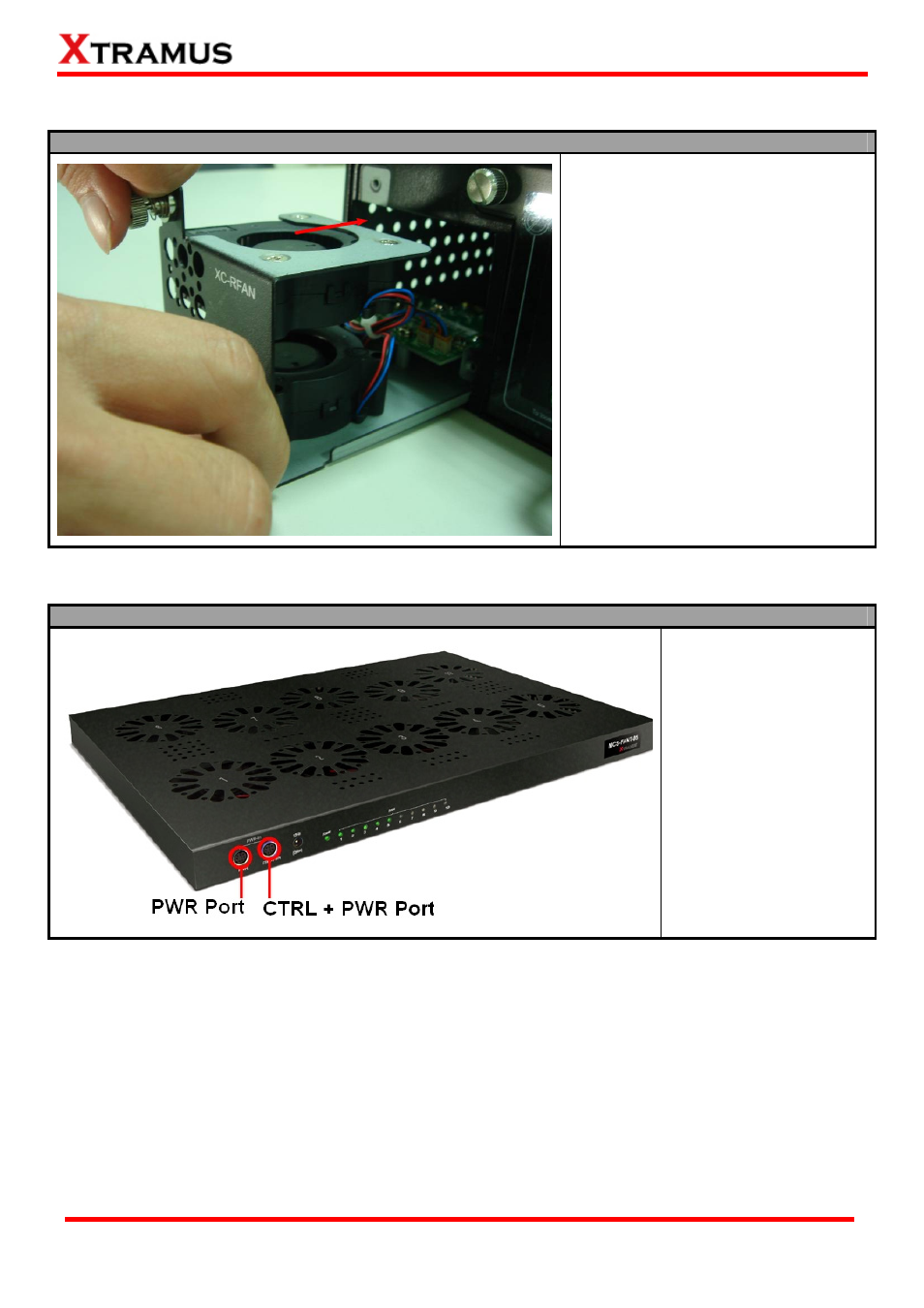

2.2.4.2. XC-RFAN
Steps for installing the XC-RFAN
Installing the XC-RFAN is quite simple,
just attach the XC-RFAN into the
respective slot of MCS-2160, and push
it into the slot. After the Bracket of the
XC-RFAN reaches the MCS-2160, lock
the captive screw into MCS-2160.
Note: The XC-RFAN doesn’t support
hot swap. Please don’t remove
Power Module during System
operation.
2.2.4.3. MCS-FANT-05
Steps for installing the MCS-FANT-05
Just set the
MCS-FANT-05 on the
base face of the
MCS-2160, and connect
the CTRL + PWR port and
PWR port of XC-SFAN
with the CTRL + PWR
port and PWR port of
XC-RFAN for power
supply.
Note: Cross-connection
between CTRL + PWR
and PWR ports will
seriously damage the
MCS-2160.
*Note: In a rack mount installation of MCS-2160, the distance between two MCS-2160 must unless be 2U (9 cm) for a better
efficiency of the MCS-FANT-05.
