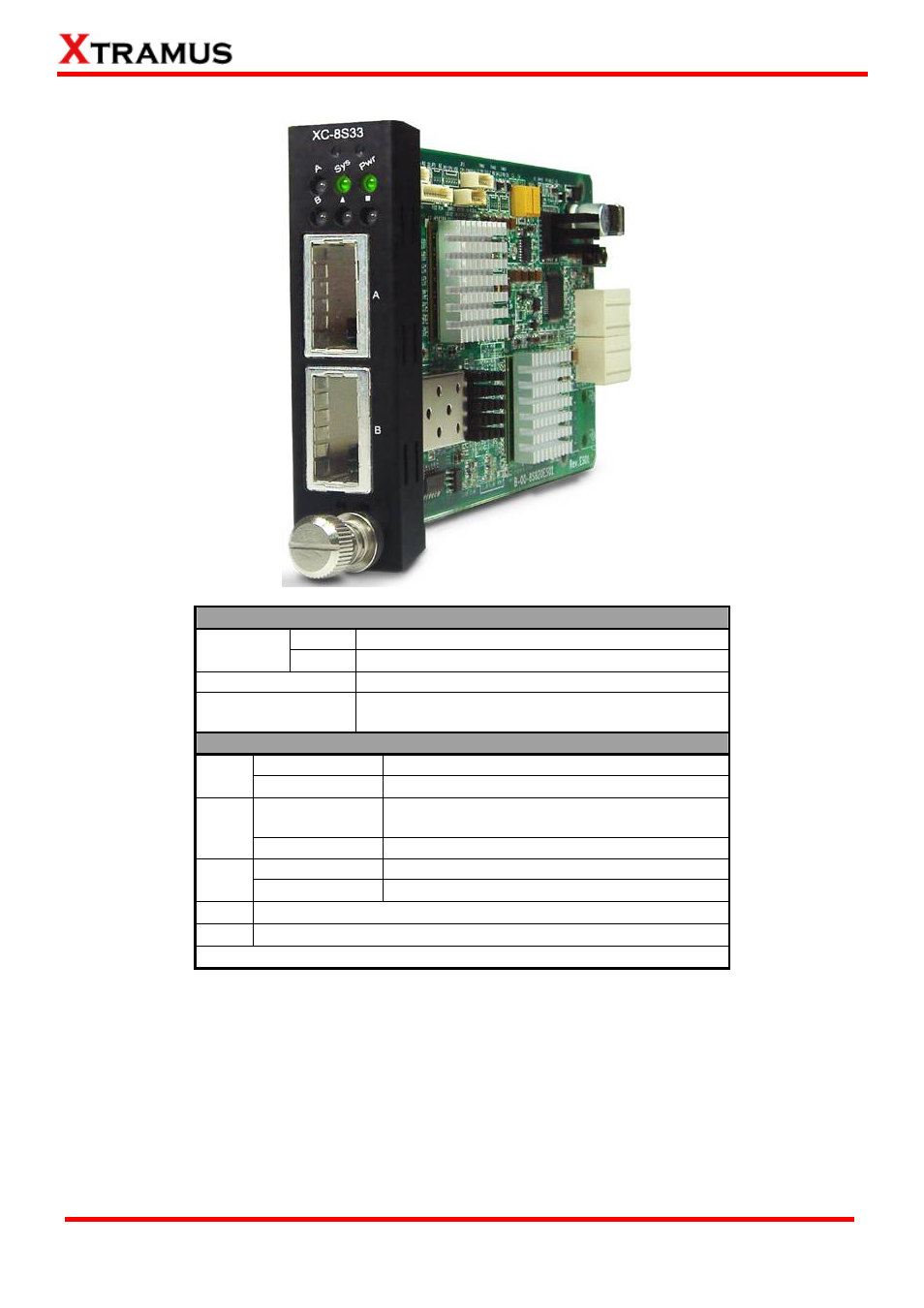

D. Media Converter Module Card – XC-8S33

XC-8S33 Front Panel Specification

Port A

XFP

Interface

Port B

XFP

Data Transfer Rate

10Gbps

Ethernet Mode

10GBase-LR

10GBase-SR

LED Status

Green ON

XC-8S33 is power on.

Power

Green OFF XC-8S33 is power off.

Green ON

XC-8S33 is booting properly and is ready for
tests.

SYS

Yellow ON

Error occurred when booting XC-8S33.

Green ON

Port A/B is connected.

A/B

Green Blinking Port A/B is transmitting/receiving data.

User-defined LED

User-defined LED

Note: All LEDS will be off when upgrading FPGA/Firmware
