32 Multi Format LCD Monitor

7. Other Functions

[8] DSLR Scale

• This function is designed for some

DSLR cameras(Canon 5D, 550D, SONY A77

and Nikon D7000) that output

different resolution from the operation

mode (preview, recording, playback).

• Select the Camera model in the [Display/

Vide]- [DSLR Camera Sel.] menu.

• CANON

- In StandBy mode of Canon 5D Mark II, 1080i

of HD resolution is indicated. However, the

real output resolution is 1620x1080, so a blank

area is displayed on the screen because the

16:9 aspect ratio is not realized.

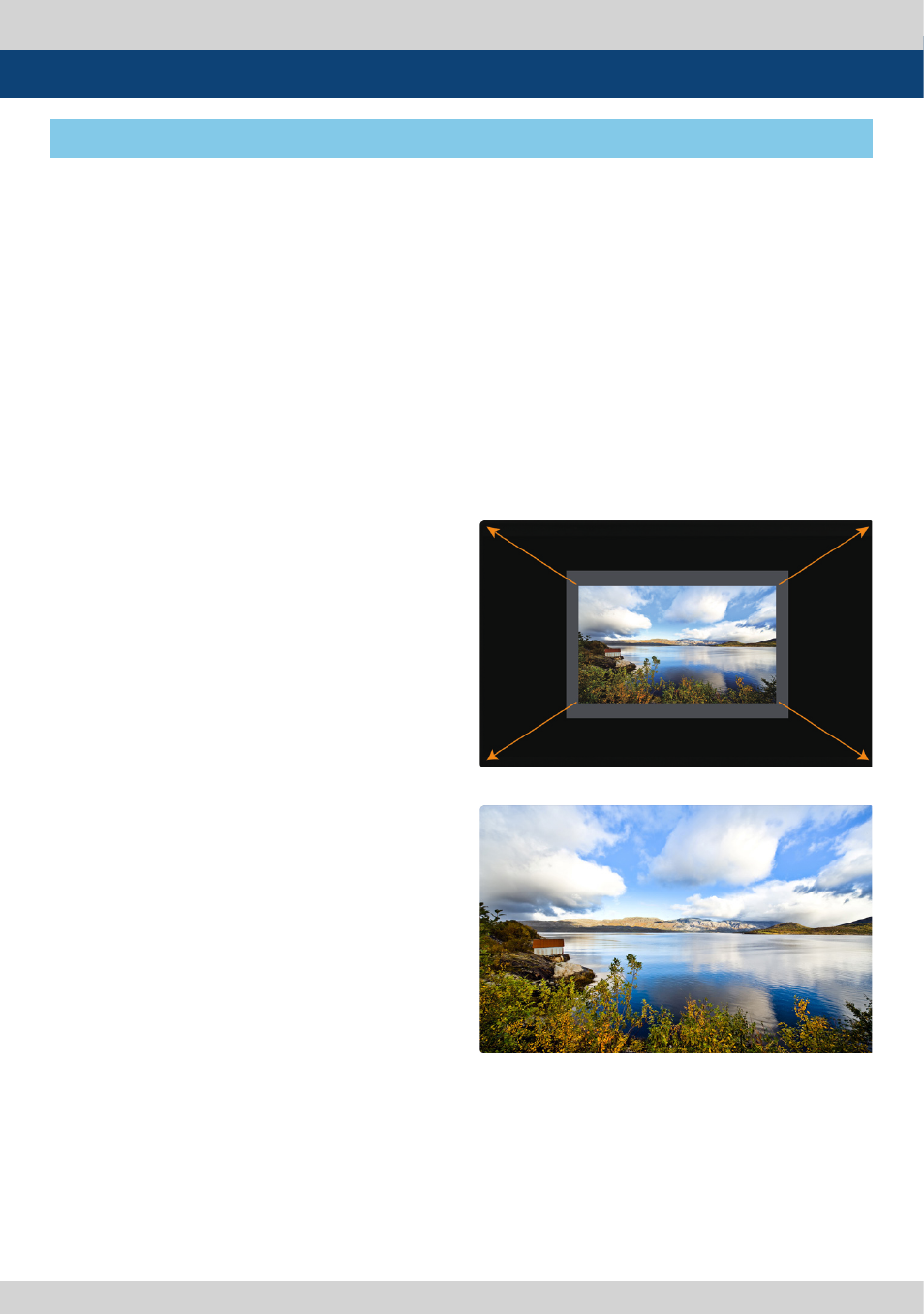

- In this case, use the DSLR SCALE function to

enlarge the 1620x1080 image and display full

screen. In Recording mode of CANON 5D

Mark II, the output resolution is SD(480p).

- Although it is SD, the real output resolution is

640x390 not 720x480.

- DSLR SCALE function scales the 640×390

image to 1280x800(panel resolution) and

displays it full screen.

Note

1. When you compare the circle chart or the

camera shooting chart with DSLR connected

monitor(HDMI) and HDMI to SDI Conversion

connected monitor, The function of Live/

Rec 16:9 mode should be selected to

compare circle and it is equal to its actual

ratio. If the circle is compared in Live/Rec Full

mode, the output of the circle is deformed.

2. Both LVM-095W connected DSLR and

LVM-095W connected HDMI to SDI

Conversion should be compared to cirlce in

Zeroscan mode. It is deformed if user selects

in Overscan and Underscan mode.

• SONY

- In StandBy/Record mode of SONY, actual

resolution of the output signal from HDMI

terminal is 1440x1080, failing to display 16:9

aspect ratio and making marginal blank area.

Activating DSLR SCALE function will scale the

1440x1080 raster image to fill the full screen.

• NIKON

- In StandBy/Record mode of NIKON, actual

resolution of the output signal from HDMI

terminal is 952x634, failing to display 16:9

aspect ratio and making marginal blank area.

Activating DSLR SCALE function will scale the

952x634 raster image to fill the full screen.
