• System Default
- Used to initialize OSD values to factory default.
• Back Light
- Used to indicate the backlight level.
- In the case of System Default, the value returns
to factory default(after color calibration).
- Available values are from 0 to 50.
• Internal Pattern
- Generates ColorBar and Grayscale Pattern
internally.
- Selectable range for Gray Pattern is from 0%
to 100% with 5% increment.
* See section “7. Other Function -> [10] Internal
Pattern” for more information.
• H/V Flip
- Allows the displayed image to be flipped
horizontally or vertically.
- This feature provides flexible mounting
options for camera operators.
- Activates in the order : [Off] – [H Flip] – [V Flip]
– [H/V Flip].
* This function is not supported when the
HDMI input signal’s resolution is over 1920 x
1080 50p.
• 3G Format
- Used to select 3G-SDI A/B input format
among Normal Mode (Auto : A422
10Bit_YCbCr. 50/60p), A 444 10/12Bit_YCbCr,
A 444 10/12Bit_RGB, A 422 12Bit_YCbCr, B
444 10/12Bit_YCbCr, B 444 10/12Bit_RGB, B
422 12Bit_YCbCr, B 422 10Bit_YCbCr 50/60p.
- In NORMAL MODE, the signal is automatically
detected when Payload signal is contained.
* In the HDMI mode, this function is not
supported.
• Firmware Version
- Displays current firmware version.
• Serial Number
- Displays Serieal Number.

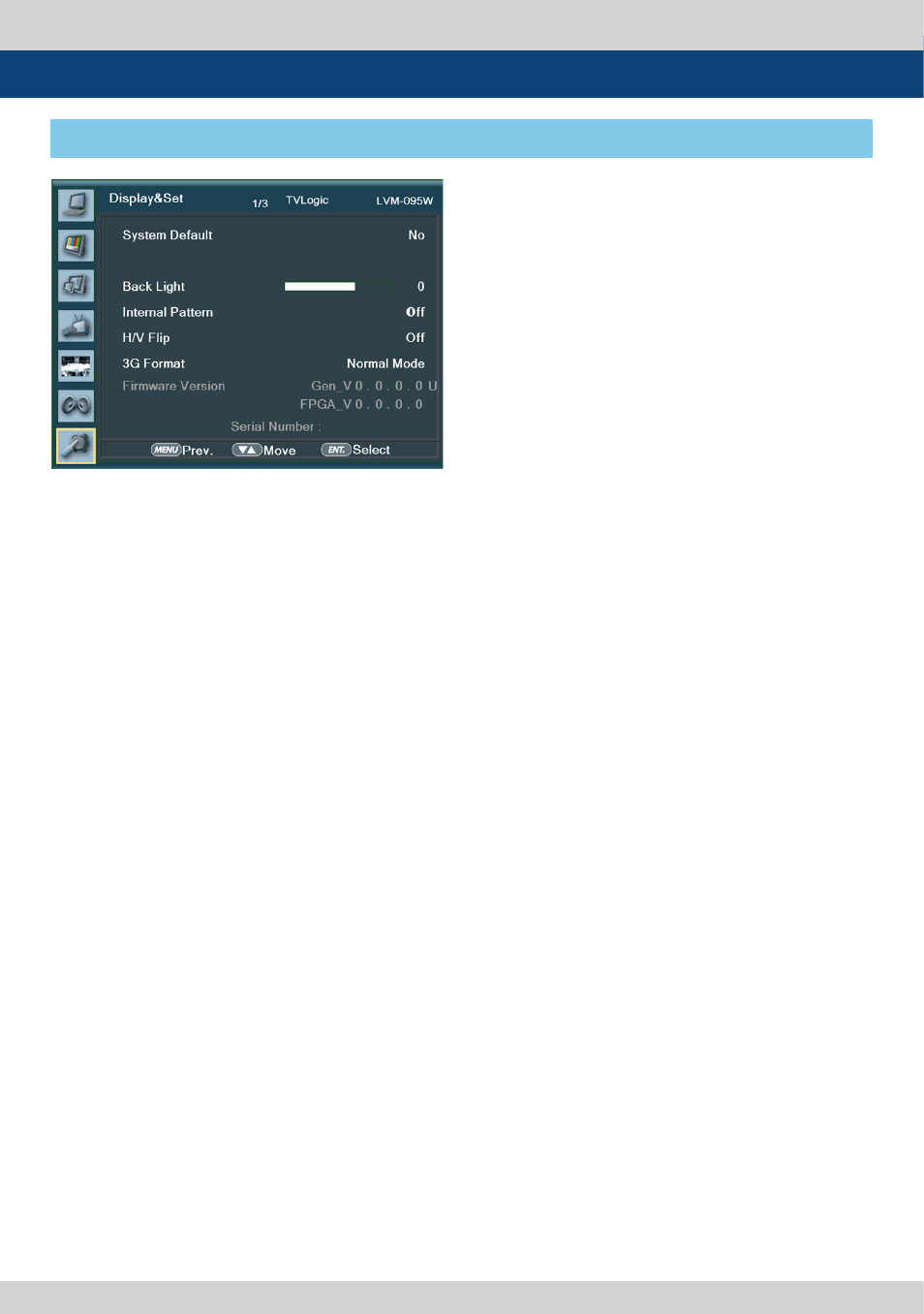

[7] Display & Set
