28 Multi Format LCD Monitor

7. Other Functions

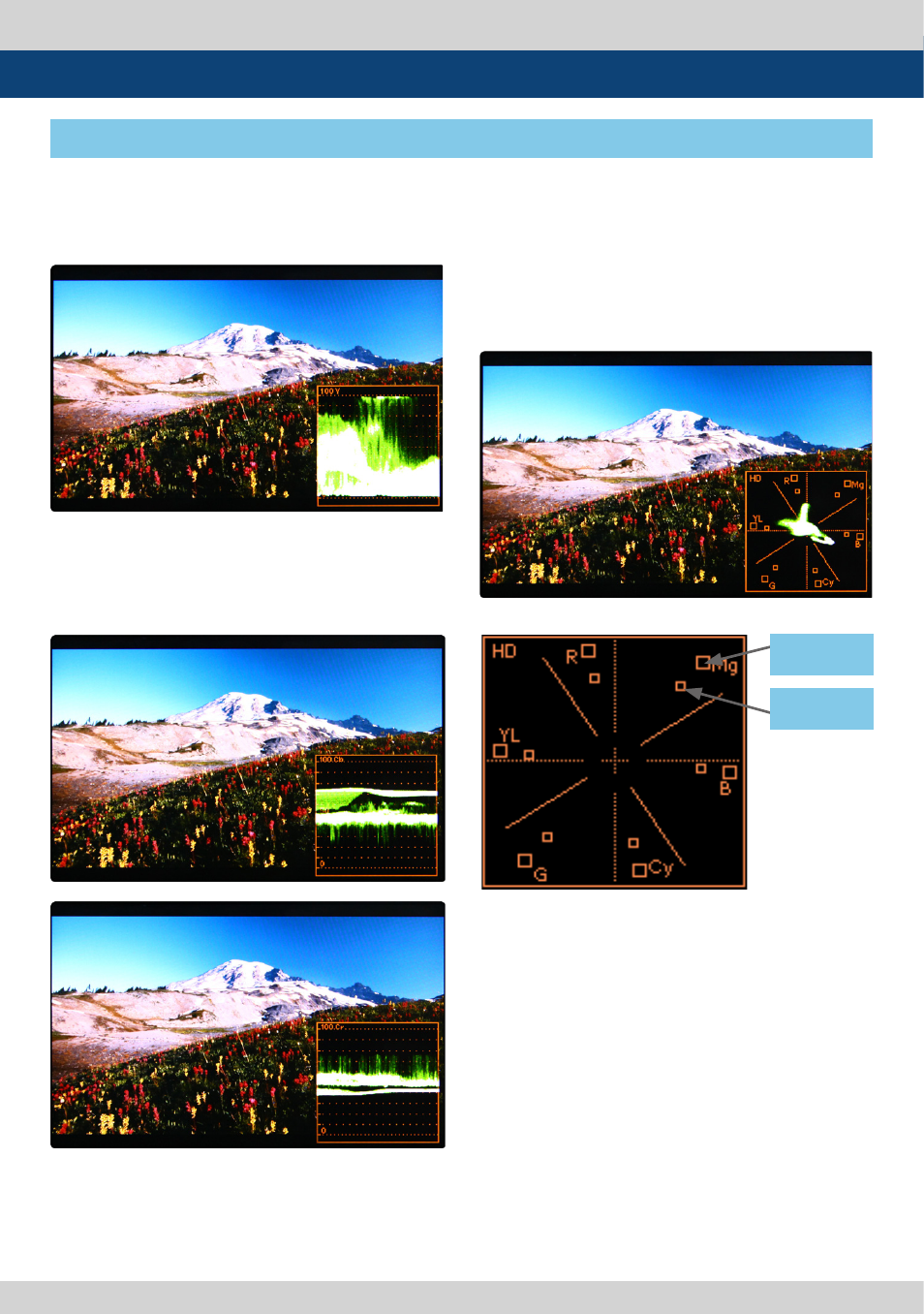

[2] Waveform / Vectorscope

• Waveform Y

- Displays the Luma(Y’) component of the input

signal into waveform.

• Vectorscope

- Displays the color components ‘B-Y’ and

‘R-Y’of the input signals onto the X-Y axis.

- Two different types of Vetorscopes are

displayed according to SD or HD input signals.

- 100% and 75% scales are indicated on the

Vetorscope.

• Waveform Cb, Cr

- Displays the Cb, Cr components of the input

signal into waveform.

• The Waveform/ Vectorscope function can

be used only when the input signal is YUV.

• In the case of RGB input, Waveform RGB is

supported.

• Available modes in the YUV signal:

- Waveform Y

- Vectorscope

- Waveform Wide

- Waveform Y Cb Cr

- Wave_Vector

- Vector_YCbCr

- Full Waveform(Y)

- Full Vectorscope

100%

75%
