LQM-071W

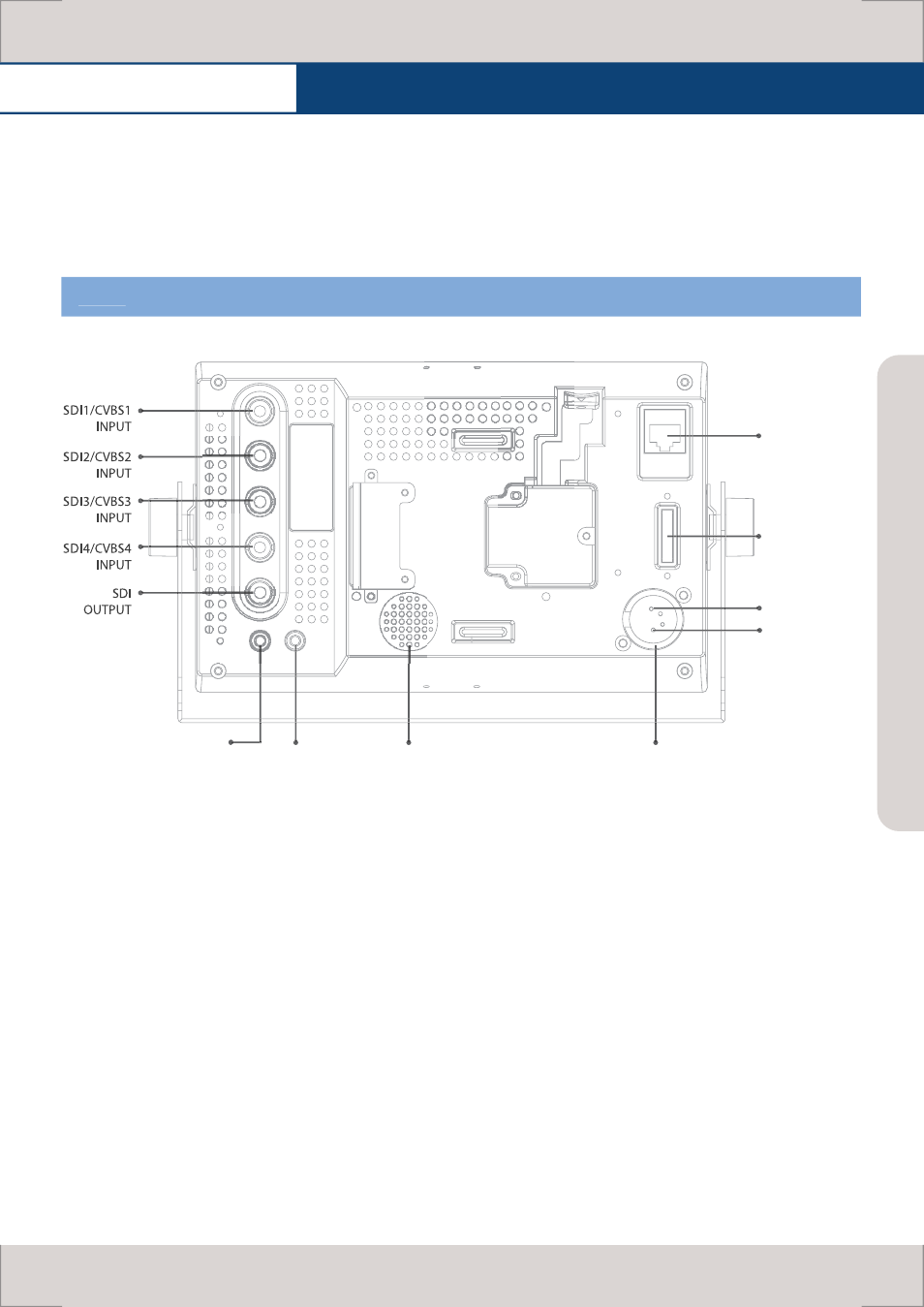

Name & Function of Each Part

- By using the remote, tally indication can be used for each input channel in red or green.

[SDI/CVBS INPUT] HD-SDI. SD-SDI, CVBS Signal input terminal.

- LQM-071W detects input source automatically and displays the source format for HD-SDI, SDI and

“NTSC” or “PAL” for CVBS.

[SDI OUTPUT] SDI output terminal.

- If the selected input channel is in HD-SDI, the output is in HD-SDI and if the selected input channel

is in SD-SDI input channel, the output is in SD-SDI. But for the analog input channel, it is A/D

converted for SD-SDI output.

[AUDIO INPUT] Audio input terminal.

[AUDIO OUTPUT] Audio output terminal for audio input or embedded audio in SDI.

[SPEAKER] Audio output speaker for audio input or embedded audio in SDI.

5. TALLY

1. SDI IN/OUT

2. AUDIO IN/OUT

REAR

+12V

GND

FACTORY PGM

RS232

RS422

REMOTE

AUDIO

INPUT

AUDIO

OUTPUT

SPEAKER

DC 12V

INPUT
