Chapter 2: Jumpers and Connectors
External Connectors Pin Definitions
This section provides descriptions, illustrations and pin definitions of the
external connectors.

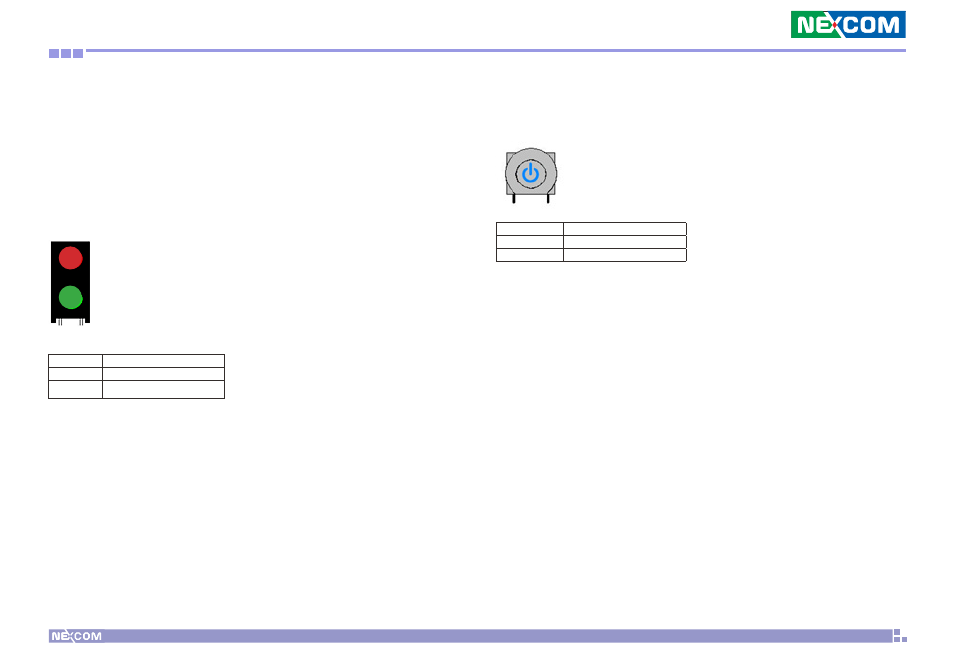

Connector Specification
LED HDD/PWR
LED
LED No. Function Description
C1 Power LED (Green)
C2 HDD LED (Red)
C2
C1
ATX Power Switch
SW1 (push button with LED and without lock)
Status LED Color
Standby Red
Operation Blue
