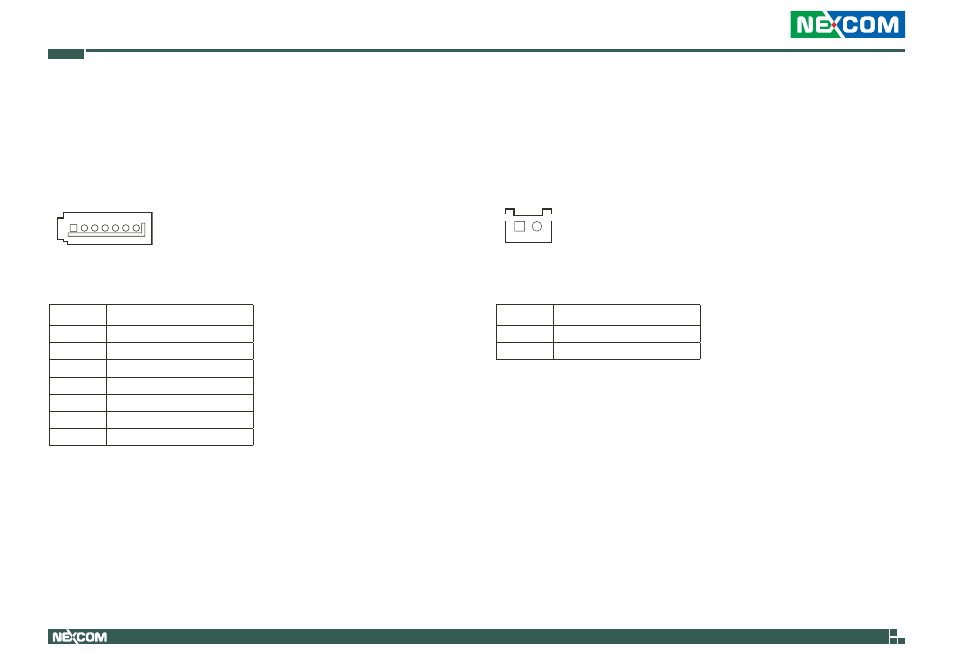

SATA Connector
Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180)
Connector location: CN3
1
7
Pin
Definition
1
GND
2
TX0+
3
TX0-
4
GND
5
RX0-
6
RX0+
7
GND
SATA DOM Power Connector
Connector type: 1x2 2-pin header, JST 2.5mm pitch
Connector location: J2
Pin
Definition
1
+5V
2
GND
1
2
