APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

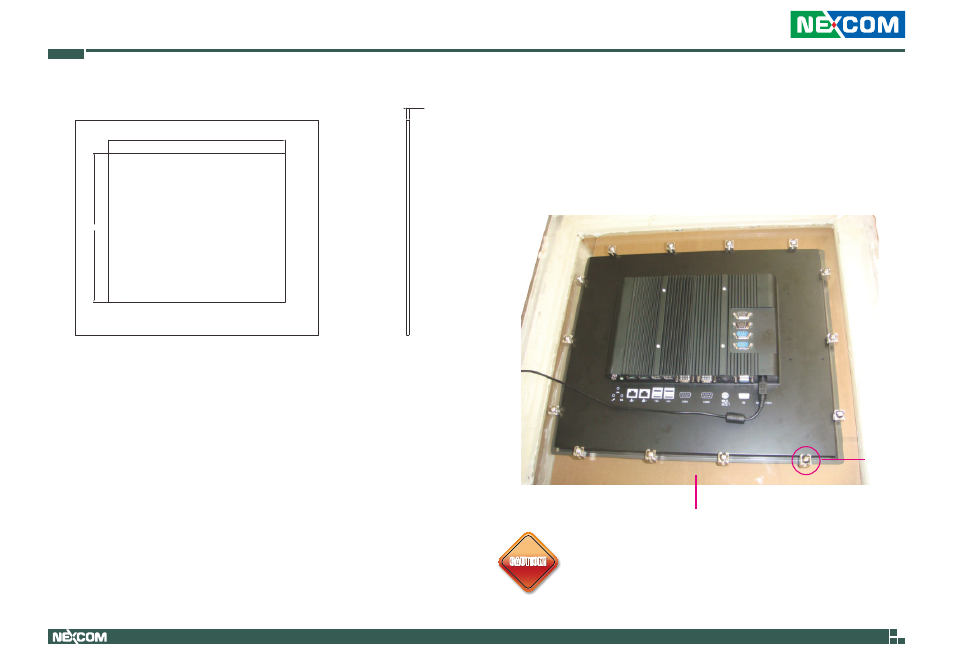

3. Slide the Panel PC through the hole until it is properly fitted against the

panel.

4. Position the mounting clamps along the rear edges of the Panel PC. The

first and second clamps must be positioned and secured diagonally prior
to mounting the rest of the clamps. Tighten the clamp’s screw until it
touches the panel.

APPC 1930T/1931T

Panel

Clamp

436.00

366.00

6mm

CAUTION!

CAUTION!

CAUTION!

Do not overtighten the screws to prevent damaging the
Panel PC.
