Chapter 2: Jumpers and Connectors
NISE 101 User Manual

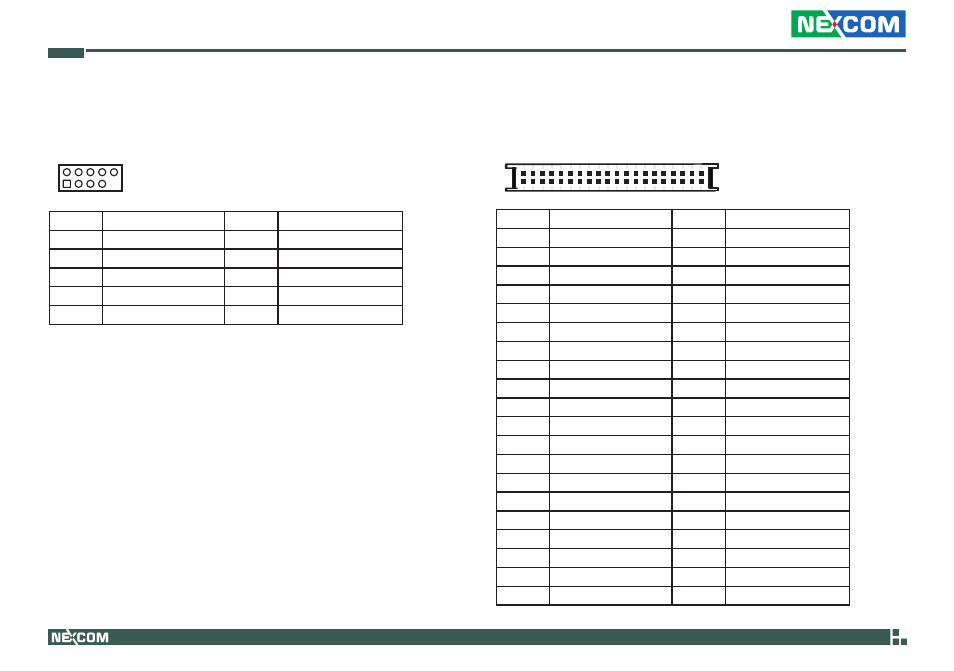

USB Connectors
Connector type: 2x5 10-pin header, 2.0mm pitch
Connector location: JUSB2 and JUSB3
2
1
10
9
Pin Definition Pin Definition
1 +5V 2 GND
3 D2-/D4+ 4 GND
5 D2+/D4+ 6 D3+/D5+
7 GND 8 D3-/D5-
9 GND 10 +5V
LVDS Connector (Single 18-bit)
Connector type: 2.0mm pitch
Connector location: JLVDS
2
1
40
39
Pin Definition Pin Definition
1 +3.3V 2 +5V
3 +3.3V 4 +5V
5 I 2 C_CLK1 6 I 2 C_DAT1
7 GND 8 GND
9 Txout1 10 Txout0
11 Txout1# 12 Txout0#
13 GND 14 GND
15 NC 16 Txout2
17 NC 18 Txout2#
19 GND 20 GND
21 E_Txout1 22 E_Txout0
23 E_Txout1# 24 E_Txout0#
25 GND 26 GND
27 NC 28 E_Txout2
29 NC 30 E_Txout2#
31 GND 32 GND
33 E_Txclk 34 Txclk
35 E_Txclk# 36 Txclk#
37 GND 38 GND
39 +12V 40 +12V
