9.1.2 Client configuration for point-to-point - United States & Canada
Step 1: Remove the WESII PoE Client or the WESII non-PoE Client, Power Supply
Unit (PSU) and Power Injector Modules (PIM) (for non-PoE units only) from
the box.

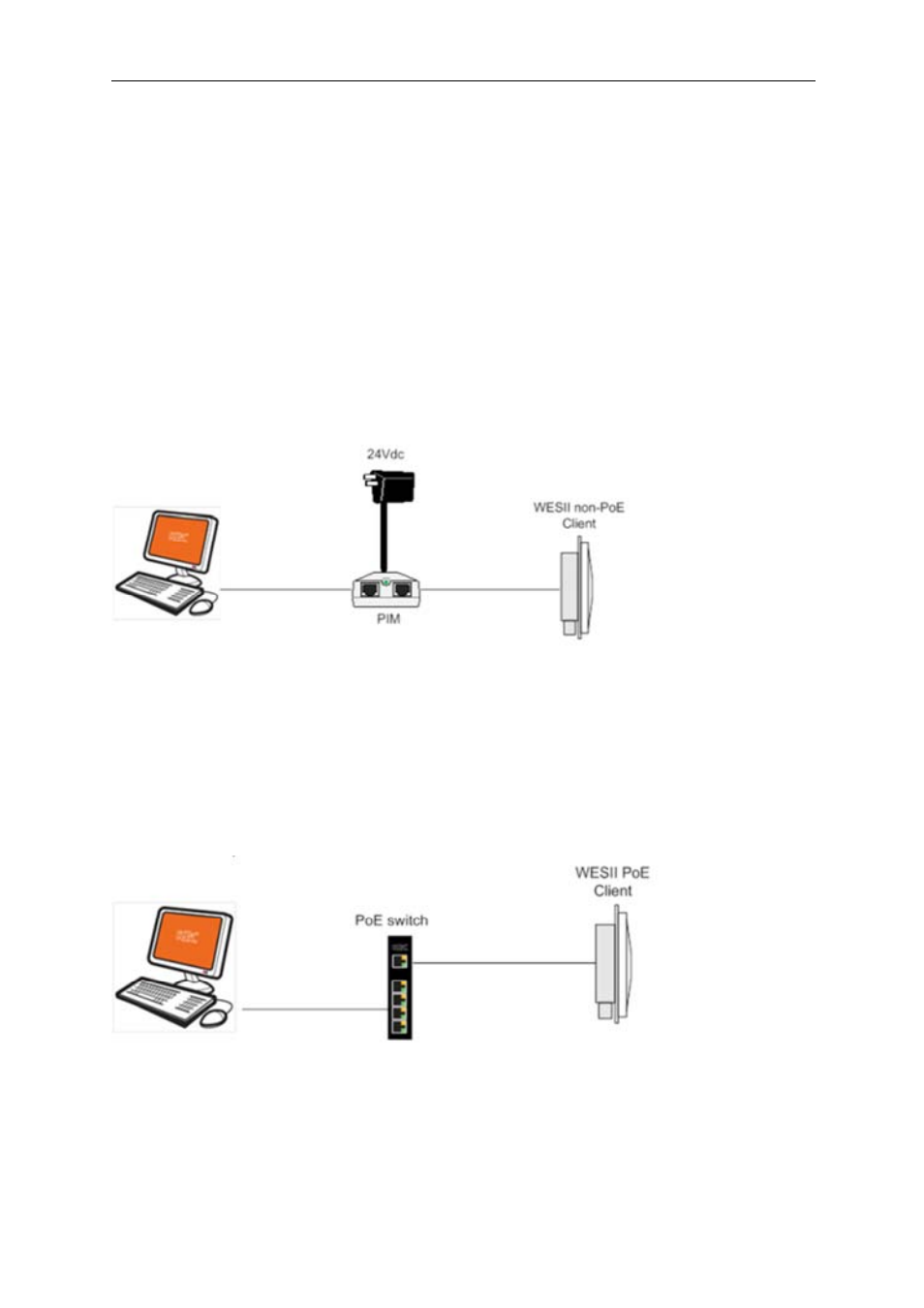

Step 2a: For a WESII non-PoE unit:
Connect the first Ethernet straight through cable from the ‘IN’ on the PIM
to either a laptop or a PC LAN port.
Connect the second Ethernet straight through cable from ‘OUT’ on the
same PIM to the WESII Host LAN port.
Apply power to the PIM with the provided 24Vdc PSU and allow 60 seconds
for the unit to boot up.
Step 2b: For a WESII PoE unit:
Connect an Ethernet cable from the PSE device (eg. Ethernet switch) to
the LAN port of the WESII unit.
Connect a second Ethernet cable from another port on the PSE to the
laptop or PC LAN port.
Apply power to the PSE device and allow 60 seconds for the unit to boot
up.
Step 3: Set the static IP address on the laptop to the 192.168.1.x subnet.
Step 4: Open a web browser to access the Client on its 192.168.1.201 IP address;
this is the default IP address for the Client unit.
