Mounting
Before mounting this product, read and follow the safety recommendations indicated in the
Safety Notes section (page 2 of this manual).
Orientation
Always mount this product in any safe position while making sure that there is adequate
room around it for ventilation, configuration, and maintenance.
Installation
The
LΩGIC™ 4X36 consists of a single product with 4 mounting points. ILUMINARC ®
recommends following the general guidelines below when mounting the
LΩGIC™ 4X36.
· When selecting an installation location, consider ease of access to the product for
operation, programming adjustments, and routine maintenance.
· Never mount the product in places where rain, high humidity, extreme temperature
changes, or restricted ventilation may affect it.
· Make sure that the location where you are mounting the product can support its weight.
Please see the Technical Specifications section of this manual for the weight
requirement of this product.
Procedure

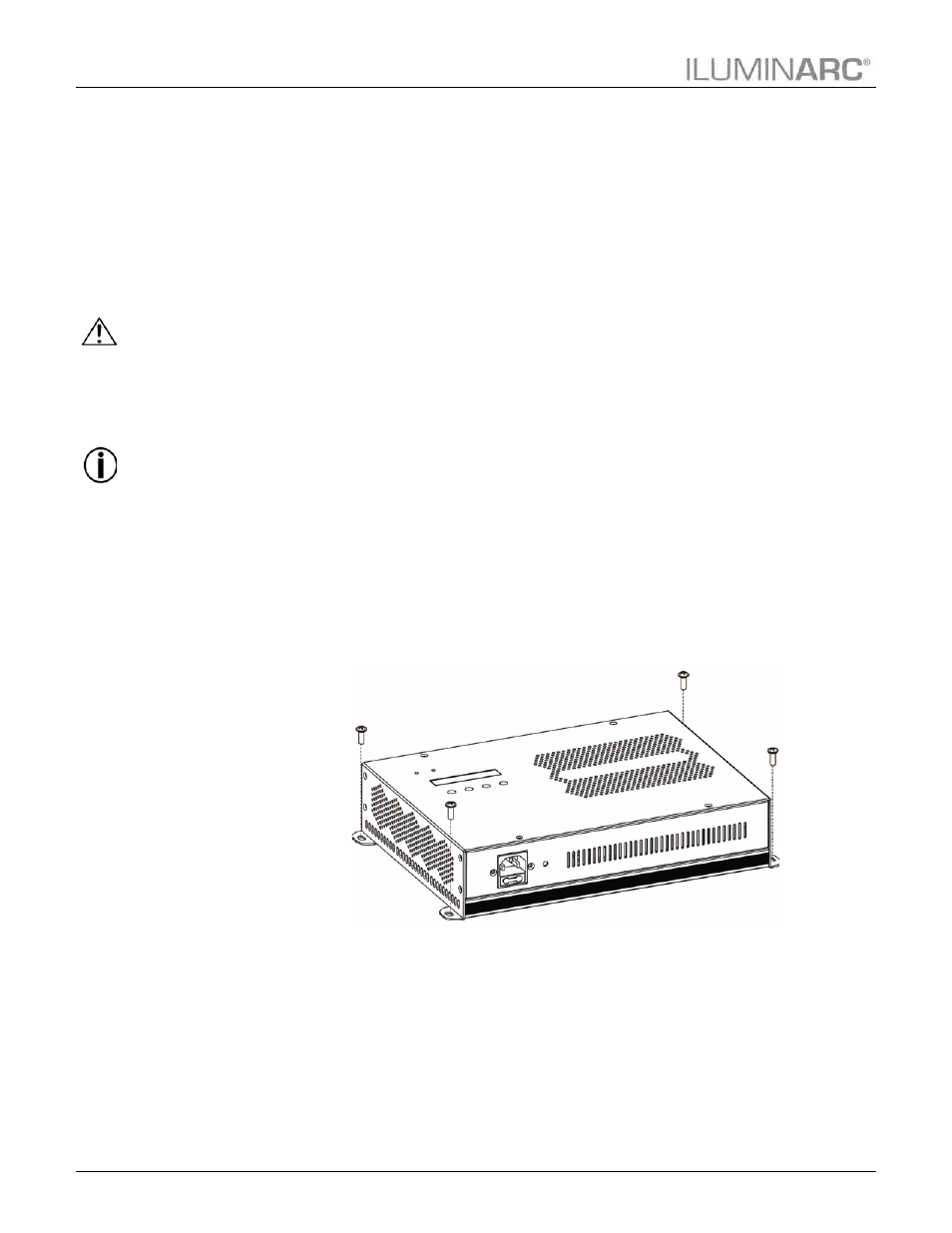

The
LΩGIC™ 4X36 has four (4) 5mm screw holes built into the casing which serves as
mounting points. Use four (4) screws to attach the product to a flat, dry surface. Make sure
that you can access the product for maintenance and programming.
