DTC-300-SP – StreamXpress

USER MANUAL

56


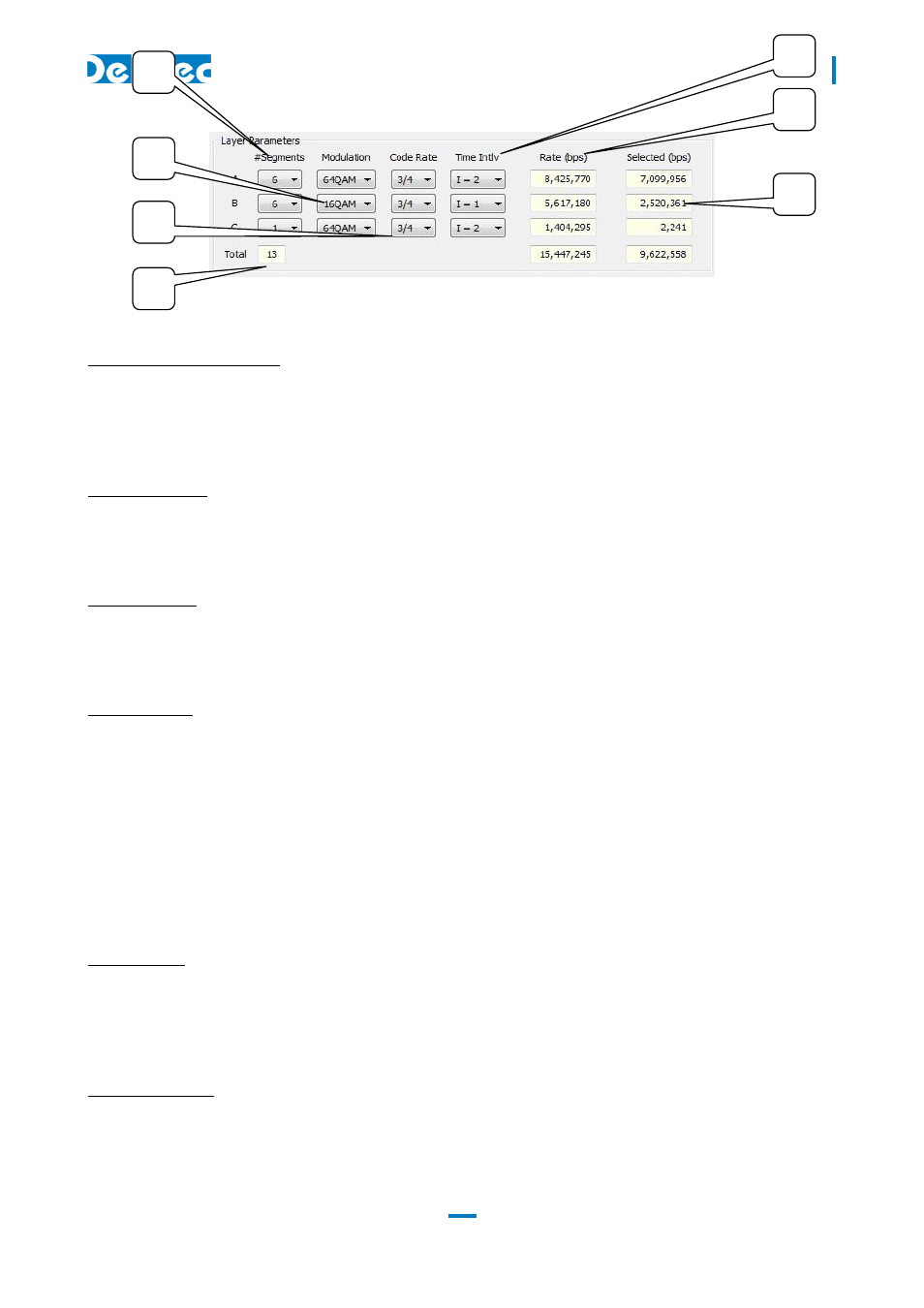

#1 Number of Segments:
The ISDB-T segment offers 13 segments. These segments can be assigned to any of the 3 layers

when broadcasting in normal mode. This drop down allows assigning segment to each of the A, B,

and C layer.

#2 Modulation:
Depending on the application, a layer can use different modulation. The modulation modes

available are DQPSK, QPSK, 16QAM and 64QAM. Each layer can use a different modulation.

#3 Code rate:
Depending on the application, a layer can use different code rate. The code rates available are ½,

2/3, ¾, 5/6, 7/8. Each layer can use a different code rate.

#4 Time Intlv:
Time interleaver is unique to ISDB-T and is quite effective to improve both robustness against

impulse noise and performance for mobile/portable reception. The time interleaver depends on the

ISDB-T broadcast mode.
For mode 1, the settings are 0, 4,8,16.
For mode 2, the settings are 0,2,4,8.
For Mode 3, the settings are 0,1,2,4.
NOTE: It is recommended to use a middle value.

#5 Rate Bps:
The total transport rate available for broadcast in a layer depends on the number of segments

allocated, modulations parameters etc... This field displays the total available bitrate available for

the layer.

#6 Selected Bps:
This display represents the total bitrate for all the selected TS components in the Component section.
