Dugan Model E User Guide
25
Chapter 5: Web Control Panel

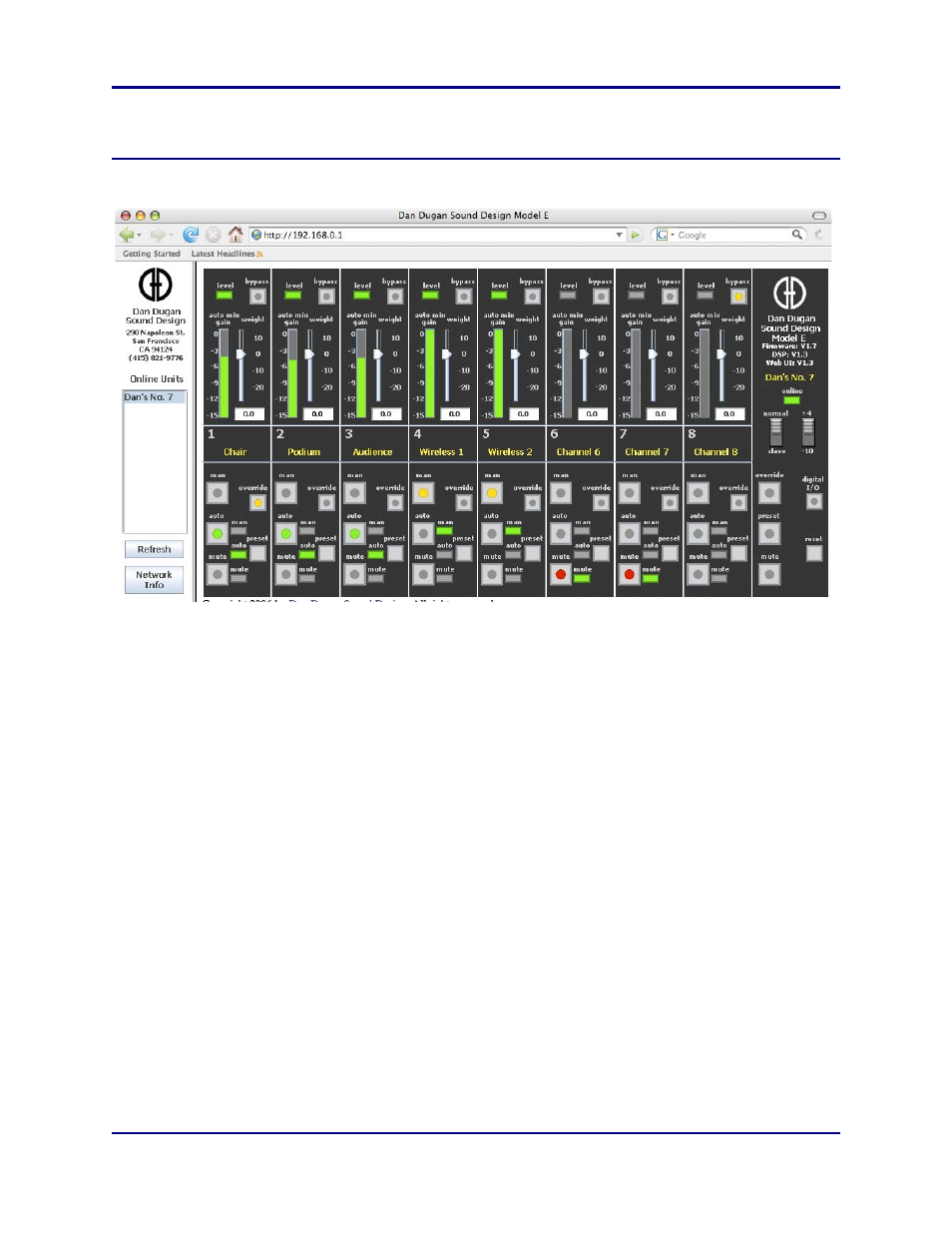

Figure 5-1 Web Control Panel
5.1 Software Installation
The Model E contains an internal web server that downloads two Java applets into the
user’s web browser. Download the latest Java Runtime Environment (JRE) from:
http://java.sun.com/javase/downloads/index.jsp . The Model E applet requires JRE
version 5 or later.
Insert the software CD supplied with the Model E or download the collection of
Model E files from:
http://www.dandugan.com/downloads
OR
http://tech.groups.yahoo.com/group/duganusers/files/
We recommend copying the CD files to your hard drive.
To connect the Model E directly to a computer, use the rear panel Ethernet jack. Win-
dows requires a crossover cable; Macs can use either a crossover or a straight cable. Use
a straight Ethernet cable to connect to a network.
