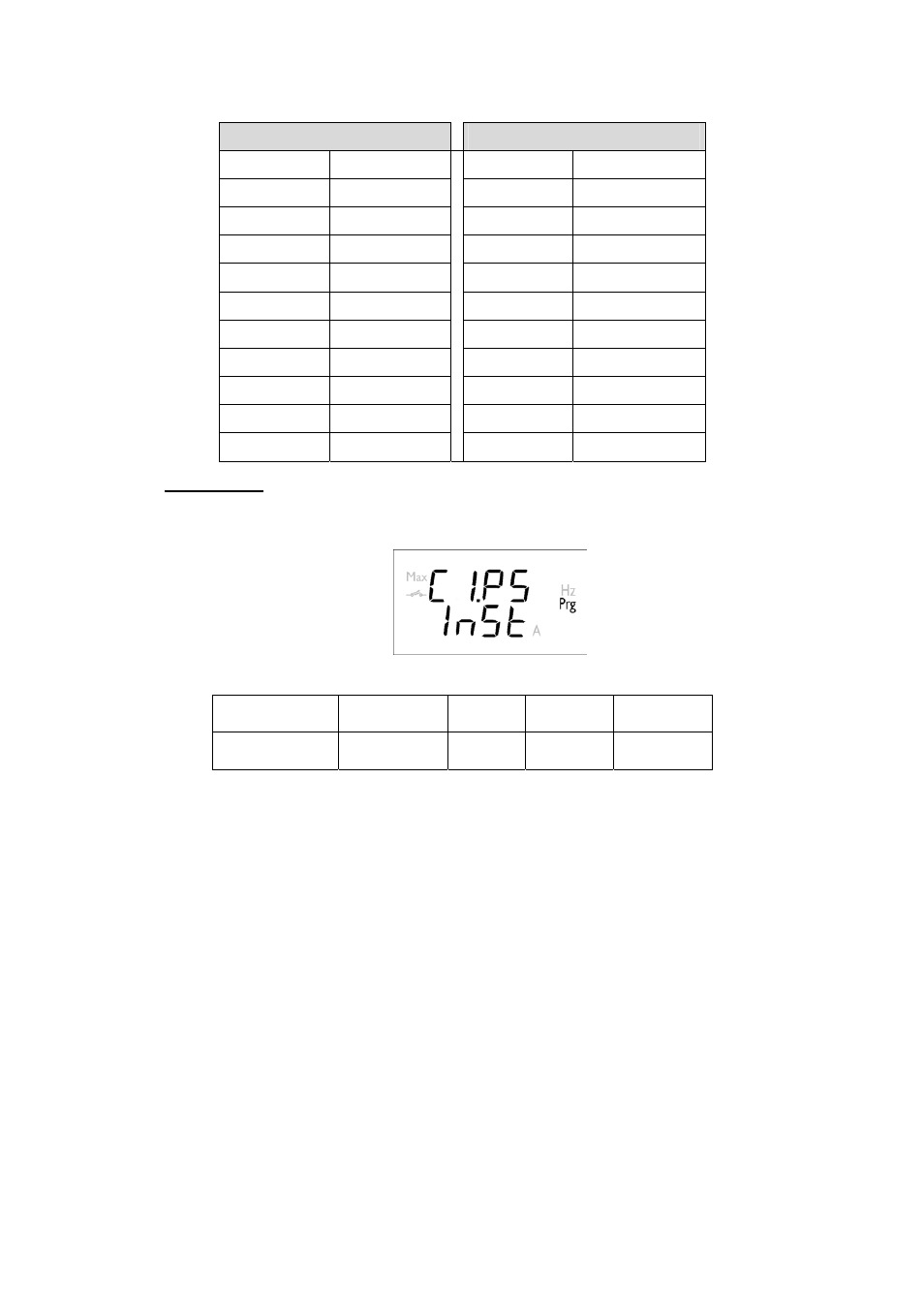

----- Relay Station CBS-8 -------- --- Page No. 23
30 mA ... 3A 300 mA ... 30A
30 mA 1 A 300 mA 10 A
50 mA 1,5 A 500 mA 15 A
100 Ma 2 A 1 A 20 A
200 mA 2,5 A 2 A 25 A
300 mA 3 A 3 A 30 A
400 mA 3,5 A 4 A 35 A
500 mA 4 A 5 A 40 A
600 mA 4,5 A 6 A 45 A
700 mA 5 A 7 A 50 A
800 mA 5,5 A 8 A 55 A
900 mA 6 A 9 A 60 A
Delay time.
Time during which the earth leakage must exceed the trip threshold to activate
the operating relay for the corresponding channel.
Usual delay times on the equipment are:
INST. SEL. 0,10 sec. 0,40 sec. 0,80 sec.
1,0 sec. 3.0 sec. 5,0 sec. 10,0 sec.
