Dimension One Spas 01510-1030 User Manual
Page 30
Sonic Immersion System Dealer Installation Guide

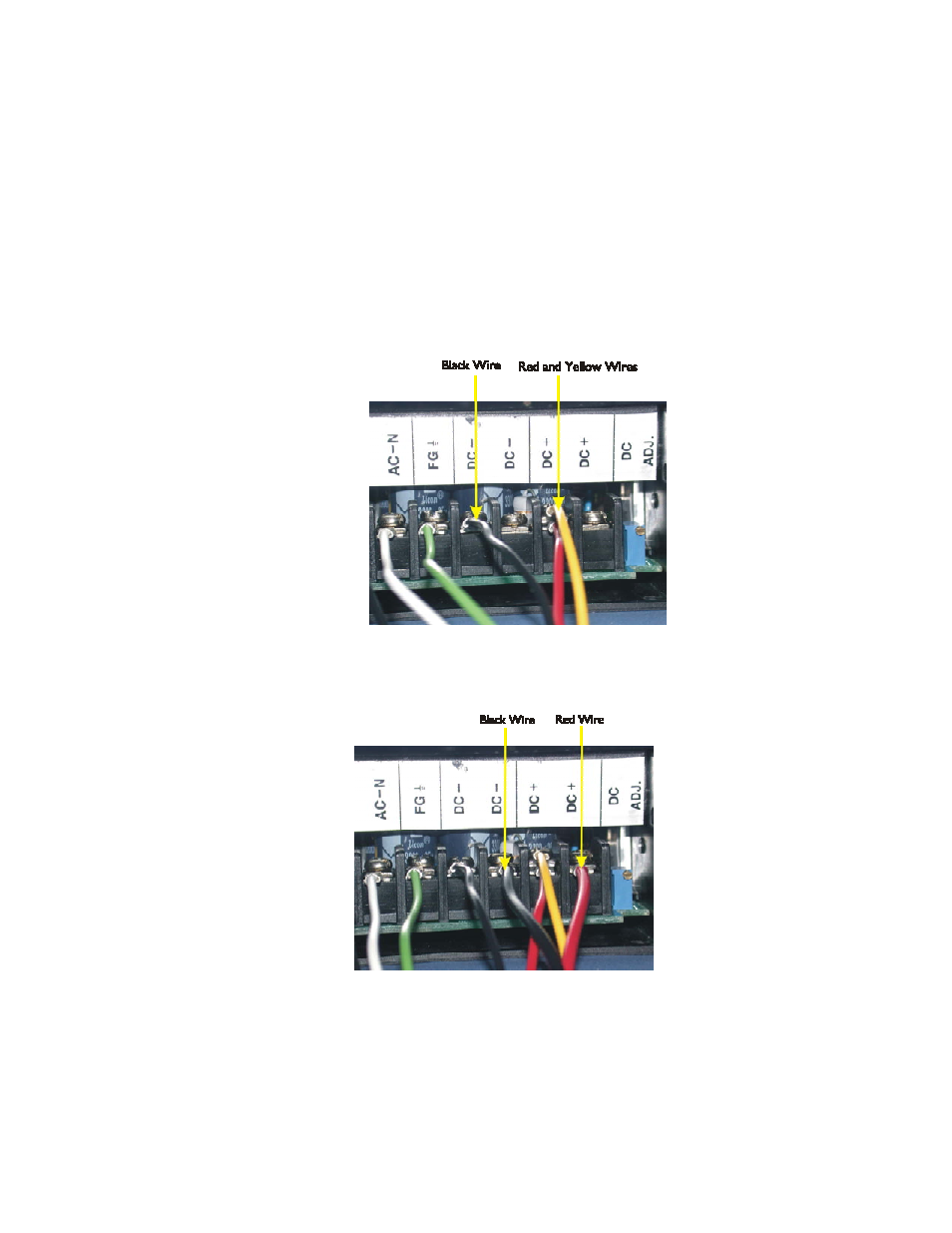

2. Connect the wires coming from Row 2 (Stereo +12 V Supply)
as follows: (see picture below) yellow and red wires to
terminal marked “DC+” and the black wire to terminal
marked “DC-“.
3. Connect the wires coming from Row 3 (Amplifier) as follows
(see picture below): red wire to unused terminal marked
“DC+” and black wire to unused terminal marked “DC-“.
26
