Delfield 407-CA - Manual (Page 2)

980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858 Phone: 800-733-8948 or 989-773-7981
Fax: 800-669-0619
www.delfield.com
406 & 407 Under
count
er S
er
ies
Printed in the U.S.A.
DS406_407(CA)
03/13
Specifications
Model
# of
Shelves
Shelf Area Volume H.P. V/Hz/Ph Amps NEMA
Plug
Ship Weight Energy
(KWH/Day)
406 2 4.6ft 2 5.7ft 3 1/5 115/60/1 4.0 5-15P 176lbs (80kg) 1.88
407 2 4.6ft 2 5.7ft 3 1/5 115/60/1 5.8 5-15P 176lbs (80kg) 2.53
406-CA 2 4.6ft 2 5.7ft 3 1/5 115/60/1 4.0 5-15P 168lbs (76kg) 1.88
407-CA 2 4.6ft 2 5.7ft 3 1/5 115/60/1 5.8 5-15P 168lbs (76kg) 2.53
Installation Note For All Models:
Refrigeration system is designed so that
air will flow under the unit, through the
compressor area, and out the top rear of
the unit. Any restriction to this air flow
path will void the warranties.
Right End View 406/407
Right End View
406-CA/407-CA
27.75"
70 cm
33.25"
84 cm
3.75"
10 cm
19.50"
50 cm
17.00"
43 cm
1.00"/3 cm
Rubber
Bumper Interior Clear Dimension,
Left To Right: 21.25"/54 cm
A
B
C
D
E
Shelf Support
Spacing
A = 7.50"/19 cm
B = 4.00"/10 cm
C = 3.75"/9.5 cm
D = 2.75"/7 cm
E = 6.00"/15 cm
28.50"
72 cm
35.50"
90 cm
6.00"
15 cm
19.50"
50 cm
17.00"
43 cm
Bullet Feet Can
Adjust Upwards Only,
Up To +1.00"/3 cm
1.00"/3 cm
Rubber
Bumper
Interior Clear Dimension,
Left To Right: 21.25"/54 cm
A
B
C
D
E
Shelf Support
Spacing
A = 7.50"/19 cm
B = 4.00"/10 cm
C = 3.75"/9.5 cm
D = 2.75"/7 cm
E = 6.00"/15 cm

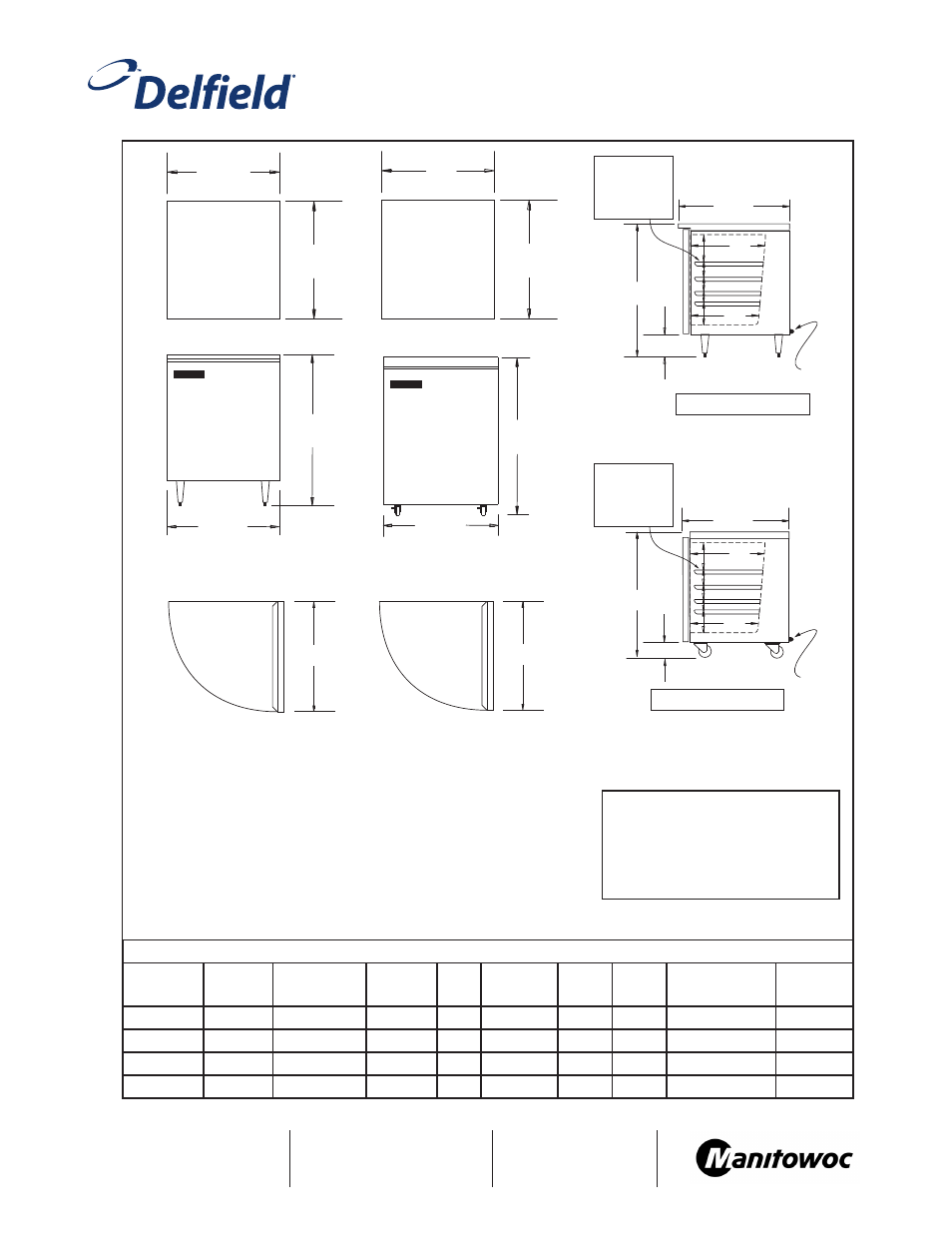

Plan View 406/407
Elevation View 406/407
Door Clearance Detail
406/407
Plan View 406-CA/407-CA
Elevation View
406-CA/407-CA
Door Clearance Detail
406-CA/407-CA
27.25"
69 cm
28.50"
72 cm
REF’G
27.25"
69 cm
35.50"
90 cm
27.25"
69 cm
33.25"
84 cm
FRZR.
27.25"
69 cm
33.25"
84 cm
24.75"
63 cm
Standard Door Hinging Is On Right
24.75"
63 cm
Standard Door Hinging Is On Right
27.25"
69 cm
27.75"
70 cm
Delfield reserves the right to make changes to the design or specifications without prior notice.
