Installation

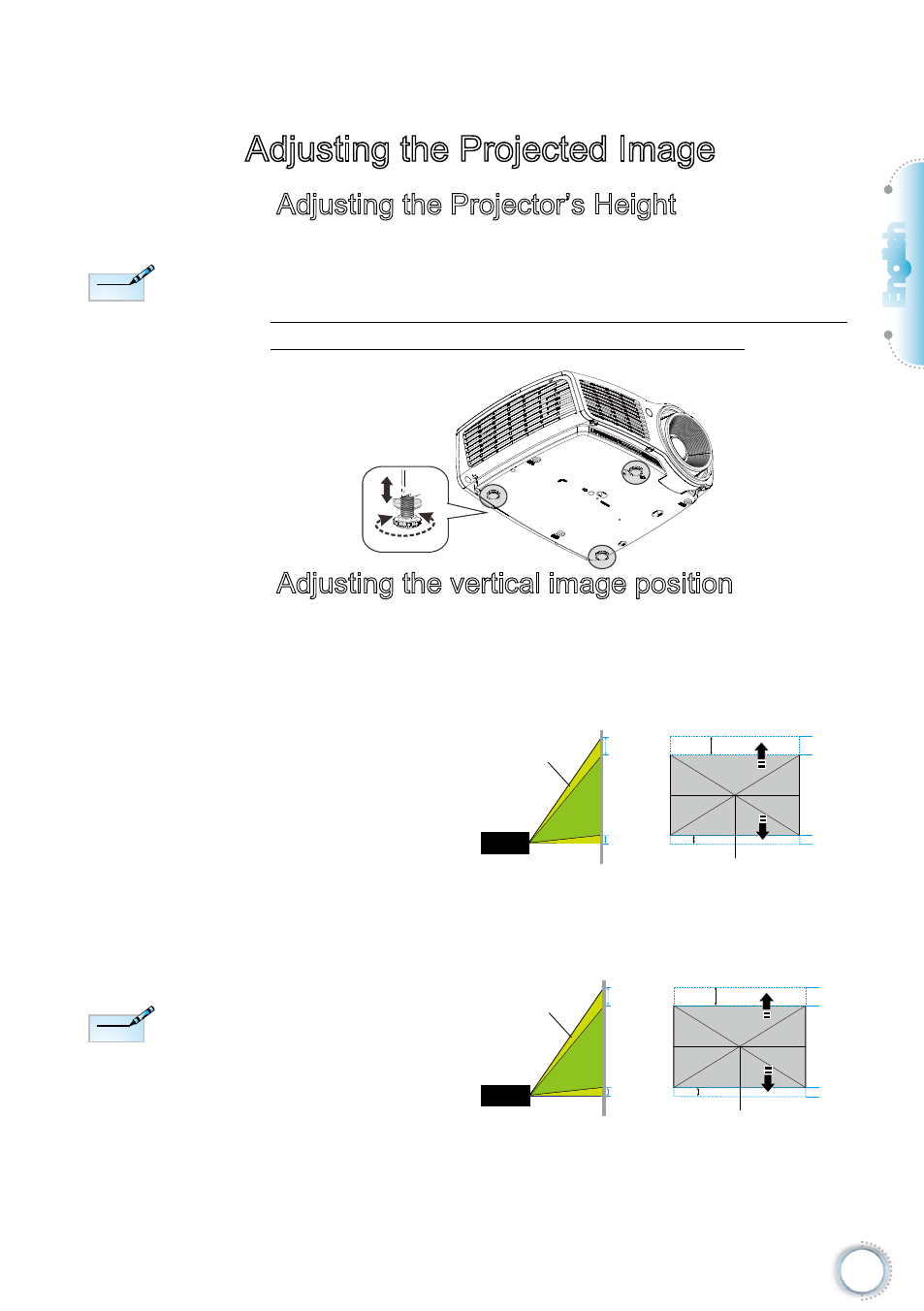

Adjusting the Projected Image
Adjusting the Projector’s Height
The projector is equipped with tilt-adjuster feet for
adjusting the image height.
To adjust the angle of the picture, turn the tilt-adjuster right
or left until the desired angle has been achieved.
Adjusting the vertical image position
The Lens Shift function can be used to adjust the
position of the vertically.
Lens shift adjustment for WXGA
The display position
can be shifted upward
up to 7% and down to
4.5% elevation of the
display.
Lens shift adjustment for 1080P
The display position
can be shifted upward
up to 9% and down to
5% elevation of the
display.
N
ote
N
ote
Lens Shift is not
available in 1080p short
throw.
N
ote
N
ote
• The projector
table or stand
should be level
and sturdy.
• Position the
projector so that
it is perpendicular
to the screen.
• For personal
safety, please
secure the cables
properly.
Lens shift adjustable range
7%
Shift to top
7%V
1V
4.5%V 4.5%
Shift range
Lens shift center position
Shift range
Lens shift adjustable range
9%
Shift to top
9%V
1V
5%V 5%
Shift range
Lens shift center position
Shift range
