UC4448N Reduced Height Front-Breathing Self-Contained Compact Mega Top Refrigerators
Model_#__________
CSI_Section
Printed_in_the_USA.__
03/08
DSUC4448N-M 980_S._Isabella_Road
Mt._Pleasant,_MI_48858
www.delfield.com Phone:_800-733-8948
Fax:_800-669-0619
Email:[email protected]
3(%,&
!,4
./3%
).4%2)/2
$//2
&2/.4
&2/.4
34!.$!2$
Pan Cutout Configurations
INSTALLATION NOTE:
Refrigeration_system_is_designed_so_that_air_will_
flow_under_the_unit,_through_the_compressor_area_
and_out_the_front_of_the_unit.__Any_restriction_to_
this_air_flow_path_will_void_the_warranties.
PLEASE NOTE:
Air_flow_through_the_louver_on_the_back_of_the_
unit_is_not_necessary_for_operation,_however,_any_
air_which_passes_through_the_louver_is_beneficial.

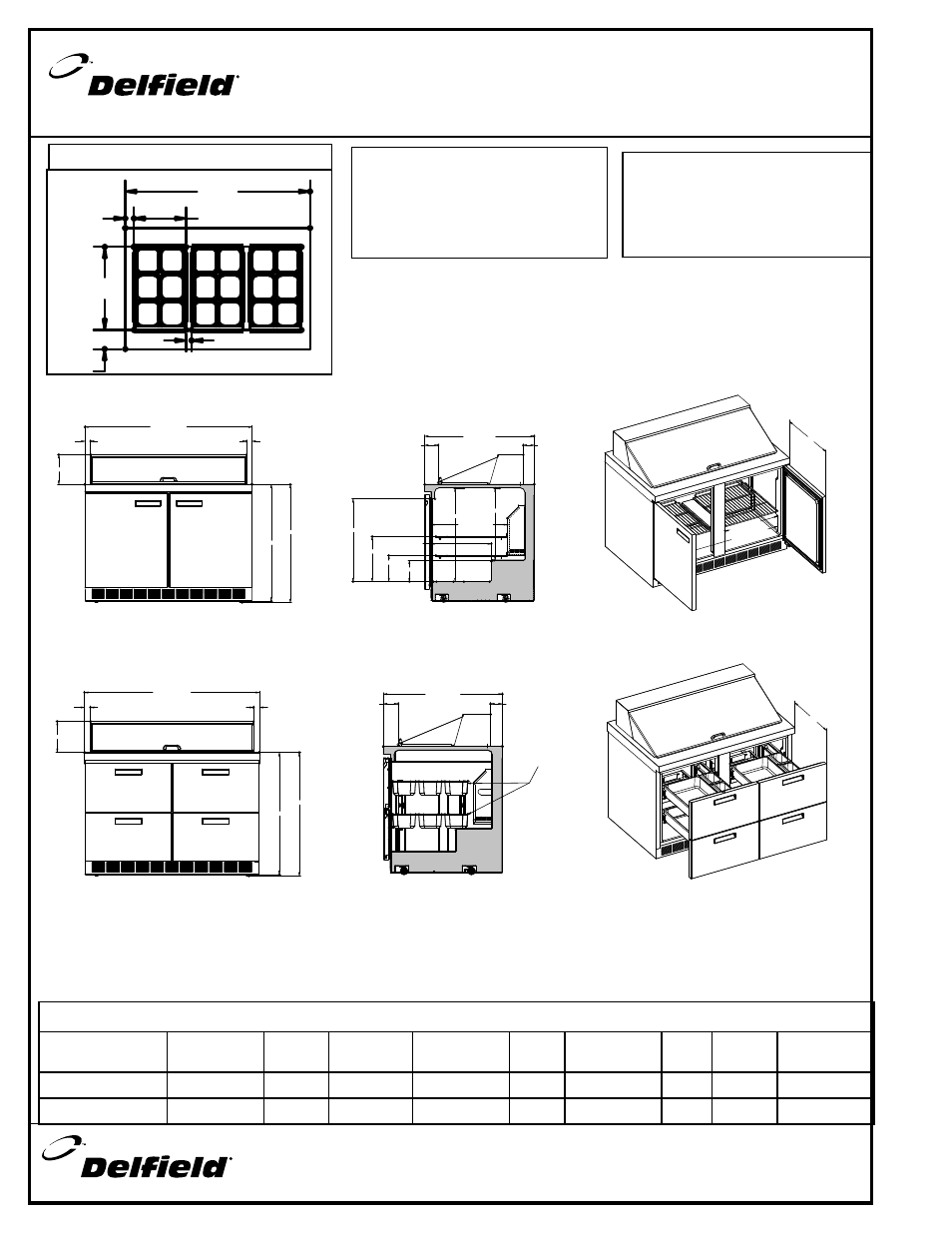

UC4448N-18M_ISO_VIEW UC4448N-18M_ELEVATION_VIEW
UC4448N-18M_RIGHT_SIDE_VIEW
Mechanical Data - Standard Unit
MODEL
NUMBER
1/6 SIzE PAN
CAPACITy
# OF
SHELvES
SHELF AREA
Sq.FT.
STORAGE CAP.
CU.FT.
H.P.
vOLTS/HERTz/
PHASE
AMPS
NEMA
PLUG
SHIP wEIGHT
UC4448N-18M 18 2 4.53 10.7 1/5 115/60/1 7.2 5-15P 360LBS./163KG.
UCD4448N-18M 18 NA NA 2.7 1/5 115/60/1 7.2 5-15P 395LBS./179KG.
3(%,&
!,4
./3%
).4%2)/2
$//2
3(%,&
!,4
./3%
).4%2)/2
$//2
4/
./3%
#/2$
UCD4448N-18M_ISO_VIEW UCD4448N-18M_ELEVATION_VIEW
UCD4448N-18M_RIGHT_SIDE_VIEW
4/
./3%
#/2$
4/
./3%
#/2$
